USER MANUAL
Glass-Maxx CX5-L
Serial number:
Delivery date:
Handelsweg 1 C
2861 GN Bergambacht
info@grip-lifting.nl
+ 31 (0)85 018 0321

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Glass-Maxx CX5-L and is the answer not in the manual?

Questions and answers

Summary of Contents for Grip Glass-Maxx CX5-L

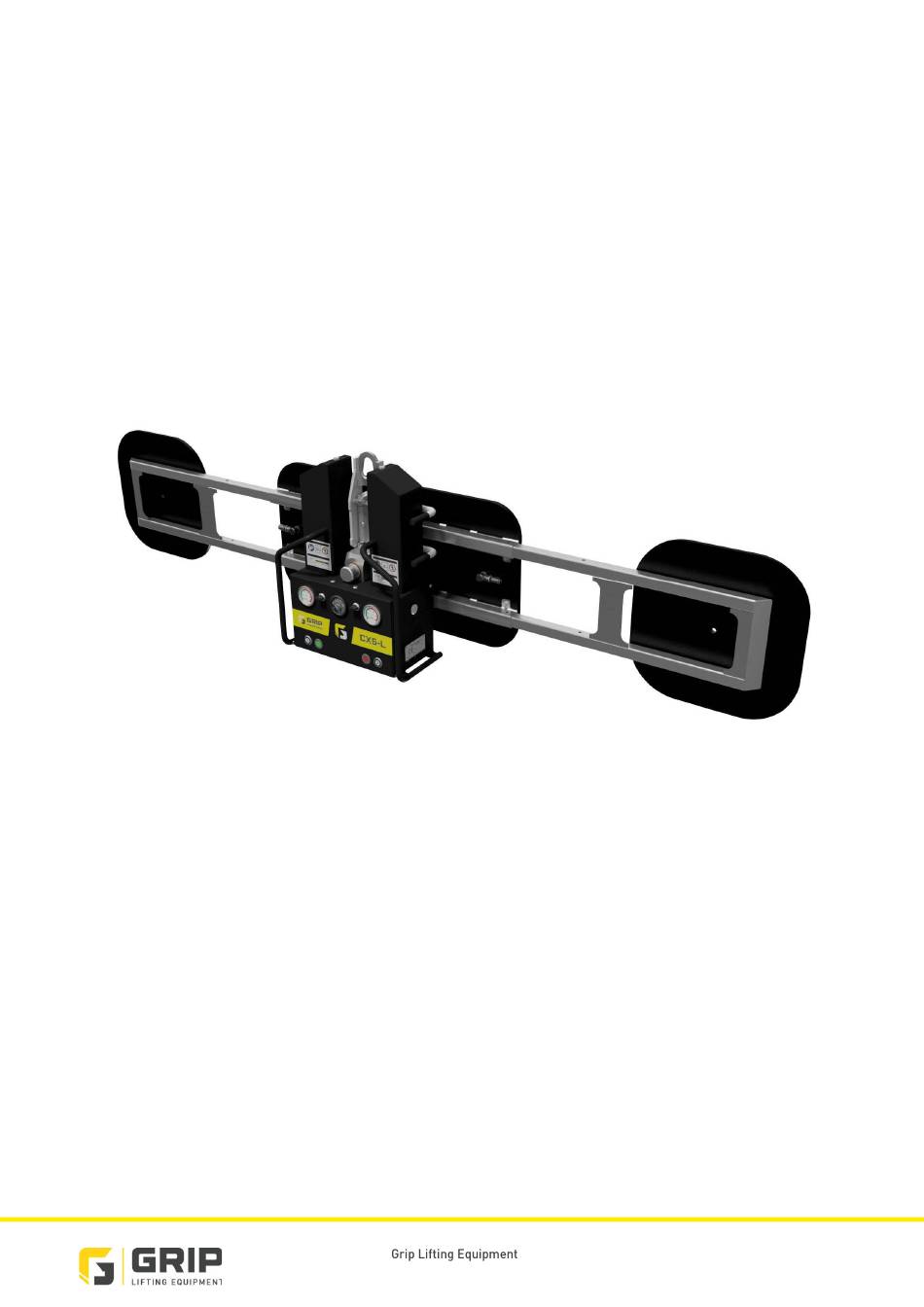

  • Page 1 USER MANUAL Glass-Maxx CX5-L Serial number: Delivery date: info@grip-lifting.nl + 31 (0)85 018 0321 Handelsweg 1 C 2861 GN Bergambacht...
  • Page 2: Table Of Contents

    Table of contents INTRODUCTION ............................... 2 1.1. Usage of this manual ..........................2 1.2. Marking Conventions ..........................3 1.1. Marking & Indication ..........................3 1.2. Warranty ..............................4 1.3. Compliance .............................. 4 1.4. Nameplate ............................... 4 GENERAL SAFETY ............................. 5 INTENDED USE ..............................
  • Page 3: Introduction

    Netherlands. The information in this manual is important for the correct and safe usage of the machine. This manual is a translation off the original user manual, created by Grip Lifting Equipment in the Dutch language. In case of any ambiguities and/or disputes, the text from the original Dutch user manual always prevails.
  • Page 4: Marking Conventions

    1.2. Marking Conventions Marking conventions are indications in the user manual and are not applied to the machine itself. The following marking conventions are used to alert the user to certain actions or hazardous situations: TIP: Suggestions and advice to make certain tasks easier or more convenient. ATTENTION: Note with additional information;...
  • Page 5: Warranty

    Table 1: Symbols Symbol Description Location Prohibited Front Forbidden to go under a suspended load. Left-center on the machine Information: Front Read and follow the User Manual Right-center on the machine Right side CE marking Nameplate – on the bottom of the Indicates conformity with European directives machine 1.2.
  • Page 6: General Safety

    The Glass-Maxx CX5-L is a vacuum lifter for placing and moving flat and non-porous glass panels of medium to large sizes. The load must be rigid so that it does not bend excessively.
  • Page 7: Technical Specifications

    Max. Wind speed [m/s] Max. Working Height 1.000 m (above sea-level) * Contact Grip Lifting Equipment or your supplier to discuss work exceeding the working environment limits. 4.1. Noise level The noise level is measured in accordance with the Machinery Directive. The equivalent continuous A-weighted sound pressure is measured in the workplace during normal working conditions.
  • Page 8: Safety Features

    5. SAFETY FEATURES 5.1. General After determining the hazards present and assessing the risks, the following safety measures have been taken to eliminate or at least minimize the hazards. 5.2. Shielding of electrical parts DANGER: Safety features must never be removed, bridged, or otherwise deactivated. The internal components of the machine are shielded with a cover lid.
  • Page 9: Residual Risks

    5.6. Residual risks DANGER: It is forbidden to hang on to an attached machine while it is being lifted. DANGER: It is strictly prohibited to use the machine for the transportation of people. DANGER: The machine should not be used when it is connected to the charger. DANGER: Tilting the lifting arm poses a risk of crushing the fingers or hand.
  • Page 10: Usage

    6. Usage 6.1. General DANGER: The machine may only be operated by persons at least the qualification as Authorized. (see § 1.1 Usage of this manual). DANGER: Do not use the machine if damage or defects are observed or are suspected. DANGER: Do not use the machine in an environment with a sound level higher than 70 db.
  • Page 11: Configurations

    6.2. Configurations Machine weight 42 kg Net lifting capacity 250 kg Machine dimensions 800 x 400 mm Machine weight 60 kg Net lifting capacity 500 kg Machine dimensions 2200 x 400 mm Page 10 of 17...
  • Page 12: Starting Conditions

    6.3. Starting conditions Carry out the following actions before connecting the machine to the crane or lifting equipment: Check that all locking pins are present and in fully locked position. ▪ Locking pins with a positive lock must be used for the suction cup connection. Check that all locking pins are present and in fully locked position.
  • Page 13: Controls And Indicators

    6.4. Controls and Indicators • A: Vacuum Gauge • B: Green LED • C: Voltage Gauge • D: Red LED • E: Push Button 1 • F: Push Button 2 • G: Tilt Release Lever • H: Rotation Release Lever •...
  • Page 14: Operating Instructions

    6.5. Operating Instructions Switching the machine on ▪ Press the power button to switch the machine on. Positioning on the load ▪ Position the machine in the middle of the width of the load. ▪ Position the machine at the center or above the center of the height of the load. Applying the lifter to the load (Machine Controls) ▪...
  • Page 15: Requirements During Use

    Releasing the lifter from the load (Machine Controls) DANGER: Make sure that the machine hangs tension-free and straight under the lifting point to prevent uncontrolled machine movement. ▪ Press pushbuttons 1 [E] and 2 [F] simultaneously. Releasing the lifter from the load (Remote Control) DANGER: Make sure that the machine hangs tension-free and straight under the lifting point to prevent uncontrolled machine movement.
  • Page 16: Maintenance & Inspection

    7. MAINTENANCE & INSPECTION 7.1. General The machine is maintenance-free for the operator. During the required periodic inspection, the condition of all parts is checked and replaced - if necessary. However, it is important that the user keeps the machine clean and the checks below are carried out in a timely manner (see maintenance and inspection schedule) After a repair or replacement performed by the owner / operator, all daily and monthly inspection tasks should be performed.
  • Page 17: Troubleshooting

    Explanation of Voltage Gauge inspection ▪ After charging, Switch on the machine. Check that the voltage gauge pointer moves. If the pump starts but the pointer does not move, the voltage meter is defective. Explanation of Pressure Gauge inspection ▪ Switch on the machine and attach it to a load.
  • Page 18 Tel: + 31 (0)6 2727 1018 Tel: + 31 (0)6 2727 1018 Declare under our sole responsibility that the following machine: Type: Glass-Maxx CX5-L Serial Number: Is in conformity with all relevant requirements of the EU Machinery Directive 2006 /42/EC, and those of the...
