Summary of Contents for Carlisle Trisk DeVilbiss TruClean GCS TC-GC-01

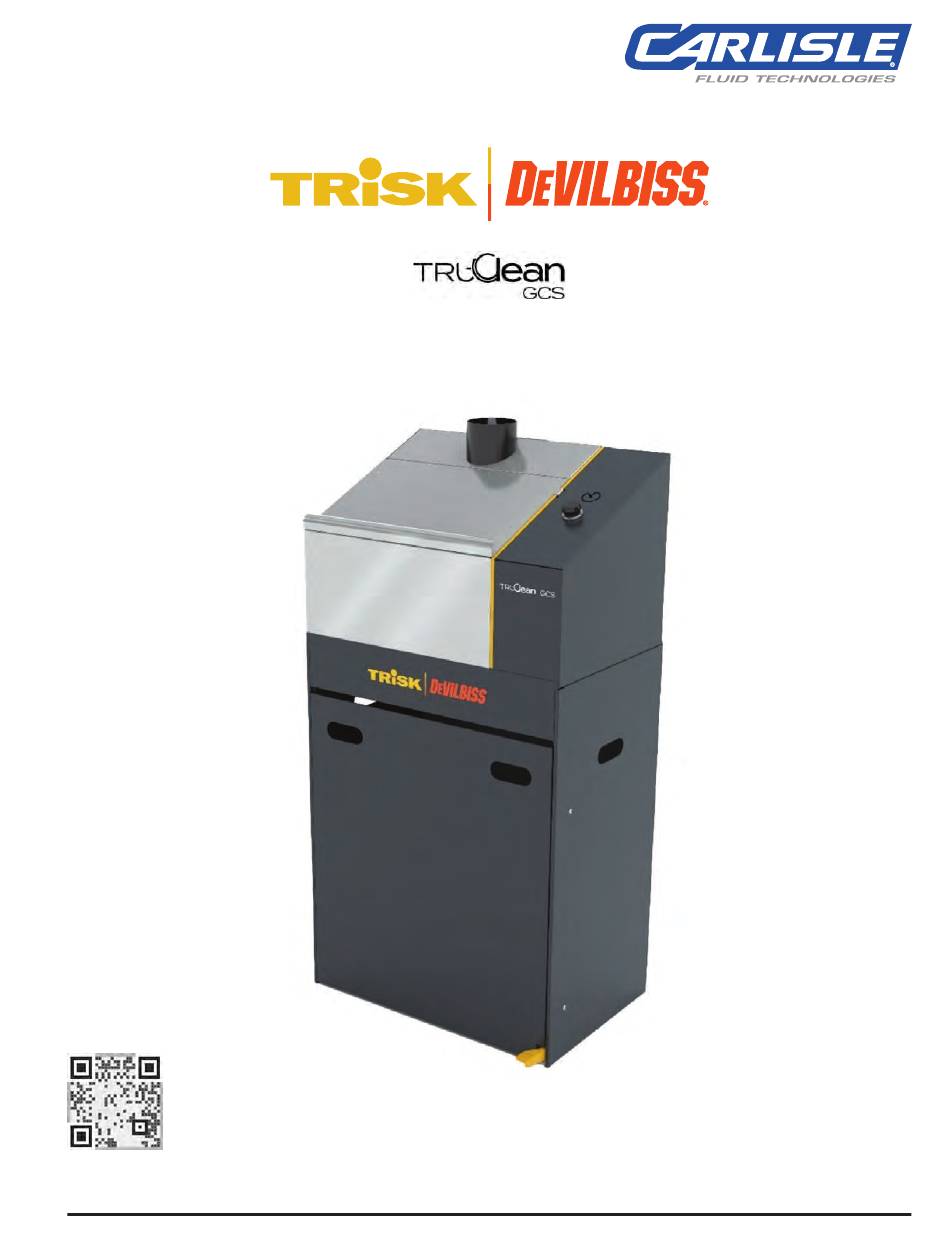

- Page 1 SERVICE MANUAL ORIGINAL LANGUAGE Solvent or Aqueous Media Gun Washer TC-GC-01 (904200) For other languages of this service manual as well as additional product information, please scan the QR code above. SB-81-010-R1 (2/2023) 1 / 12 www.carlisleft.com...
- Page 2 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING NOTE CAUTION Hazards or unsafe practices which Hazards or unsafe practices which could result in severe personal Important installation, operation or could result in minor personal injury, injury, death or substantial property maintenance information.
-
Page 3: Safety Information
TRU-CLEAN – GENERAL INFORMATION PURPOSE OF THE MACHINE Solvent drums are not provided by Trisk | DeVilbiss, thus Trisk | DeVilbiss does not take any responsibility The unit is intended for cleaning of air-driven spray for the drums. Follow the solvent supplier’s instructions guns using either thinner-based solvents or water-based carefully. -
Page 4: Placing The Unit
TRU-CLEAN – SETUP Zone 2 Zone 2 UNPACKING • Clean up spills immediately. Solvent vapours are heavier than air and can spread a long way. They For instructions, see "Unpacking Instructions". may also collect in pits or other low areas. •... -
Page 5: Preparations For Use
TRU-CLEAN – SETUP VENTILATION The compressed air supplied to the unit must be clean and dry. If it is not first led through a water There are two different options for the unit’s ventilation: trap and filter, it may cause damage to the pneumatic components of the unit, which will invalidate any 1. Lead the exhaust outdoors. warranty claims. 2. Lead the metal ducting into a hood that is in turn Make sure that the unit is properly grounded using the connected to a suitable ventilation system approved grounding cable supplied. - Page 6 OPERATING INSTRUCTIONS Place the two drums in the cabinet. TRU-CLEAN – OPERATION OPERATING INSTRUCTIONS Place the two drums in the cabinet. Empty the spray-gun of any residual paint into a separate spills-dish. OPERATING INSTRUCTIONS Empty the spray-gun of any residual paint into a separate Place the two drums in the cabinet.
-
Page 7: Technical Data
TRU-CLEAN – OPERATION FIGURE 3 FIGURE 2 TECHNICAL DATA Finally, it is possible to blow out the spray gun. Connect the spray gun to the air line (optional), and blow out the spray gun through the funnel under the lid Type of machine: Trisk | DeVilbiss TruClean (Figure 3.1). -
Page 8: Troubleshooting
TROUBLESHOOTING Corresponding General Fault Cause Correction Item/Part Limited or no flow during Clean or replace wash cycle Suction hose not picking up solvent due to leakage or Check suction hose for leaks empty solvent drum Limited or no flow during Spray nozzles in wash basin wash cycle Remove and clean nozzles blocked... -
Page 9: Spare Parts
SPARE PARTS SPARE PARTS LIST Ind. Ref. Replacement Part Description Parts Req'd. 410-2000 (US 992000) TIMER 410-2001 (US 992001) START VALVE 410-2002 (US 992002) SAFETY VALVE 410-2003 (US 992003) PEDAL HOSE 410-2004 (US 992004) CAPILLARY UNIT (BLACK) 410-2008 (US 992008) VENTILATION NOZZLE 410-2005 (US 992005) FRONT PLATE... - Page 10 NOTES www.carlisleft.com 10 / 12 SB-81-010-R1 (2/2023)
- Page 11 NOTES SB-81-010-R1 (2/2023) 11 / 12 www.carlisleft.com...
-
Page 12: Warranty Policy
This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided may invalidate any warranty.
