Installation Guide
Link 740
Before installation, please ask our customer service about the remote capability of the tachograph using the type (1381) or release
number (VDO tacho version 1.3a or later and Stoneridge device from release 7.3):
+49 3641 22778 595 or ticket@dako.de
If diffi culties concerning the installation of the telematic unit with the vehicle's tachograph should occur, please consult the manu-
facturer's manual for installing third-party telematics.

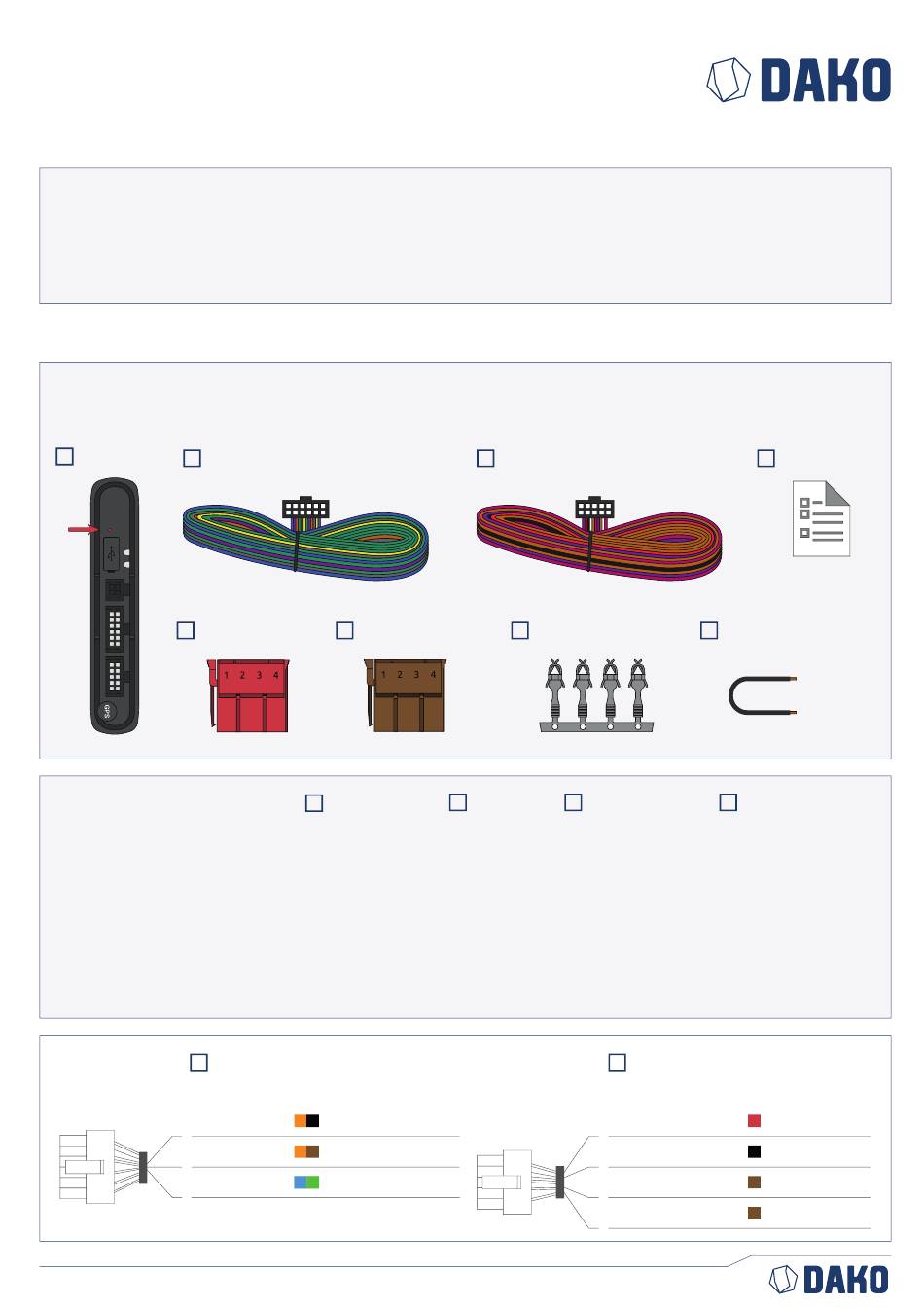

Preparation
Scope of supply:
Please note: All parts are required for installation!
Link 740
I/O cable (12-pole)
*
Red plug
Required for installation:
The following information has to be available at the time of the
fi nal installation check:
Serial number Link 740: _______________________________
Licence number: _______________________________
Number of tachograph type: ____________________________
Please fi ll in the form and hand it over to the client after installation!
PIN confi guration:
C5 CAN High
C7 CAN Low
D8 Tacho info
Page 1
Brown plug
Testing device
for tachographs
I/O cable (12-pole)
Orange/Black
Orange/Brown
Blue/Green
+49 3641 22778 595 | ticket@dako.de | telematics.dako.de | tachoweb.eu
Power cable (10-pole)
Contacts
§57b certifi ed staff
Workshop
member
card
Tachograph has to be calibrated BEFORE installation
(Licence number/Vehicle identifi cation number)
If the device originates from an end-of-life-vehicle, a reset is
necessary. In order to do that, switch on the ignition and then
press the reset button for 8 seconds.
* For position, see red marking in the illustration in the „scope of delivery" section
Power cable (10-pole)
DC power supply (Clamp 30)
Ignition (Clamp 15)
Mass 1
Mass 2
Guide
Cable bridge
If necessary, a 120
ohm resistor
Red
Black
Brown
Brown
