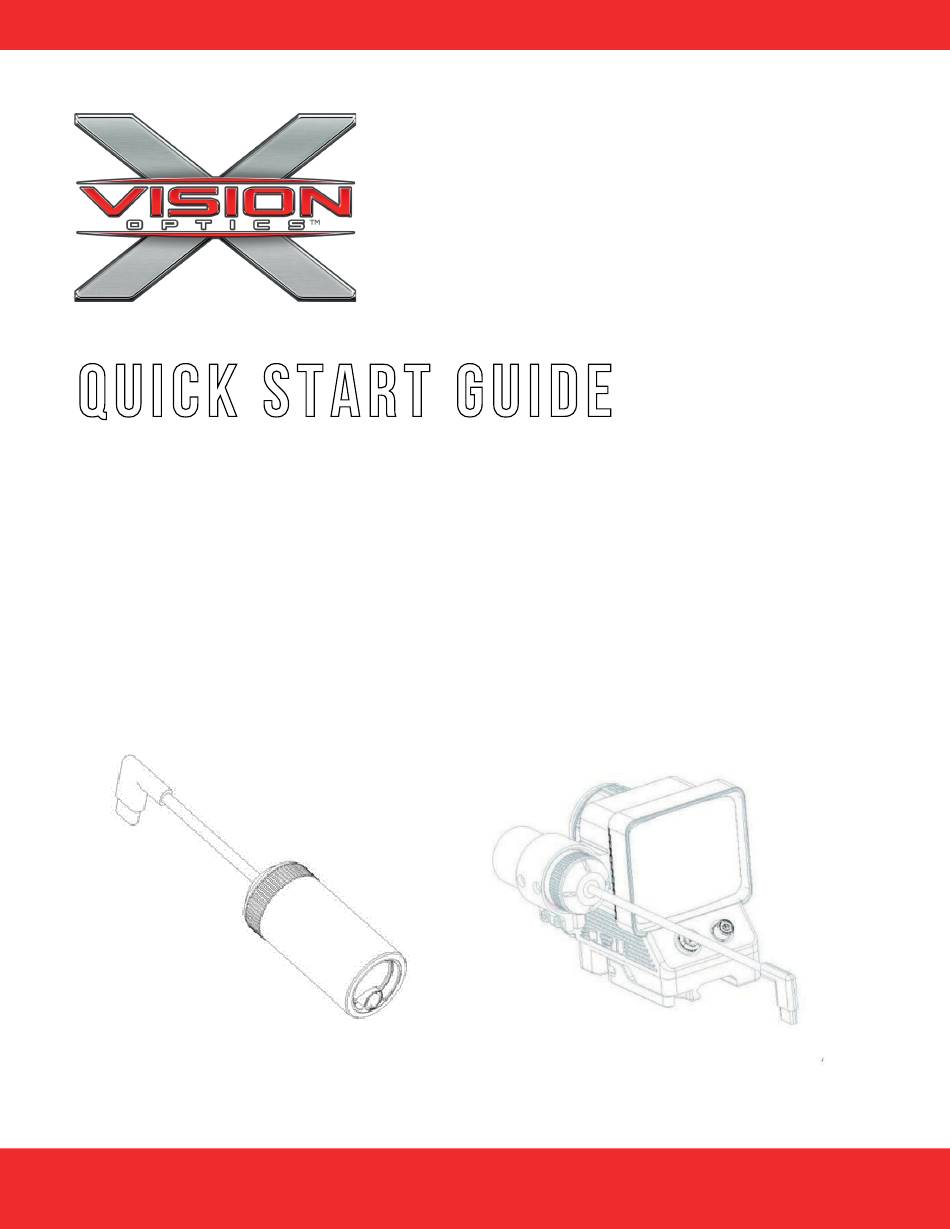

Quick Start Guide
Installation
1.
Remove the two screws securing the Picatinny rail on the TR2 reflex sight.
2.
Use the two provided M3x8 flat head machine screws to install the rangefinder clamp to the
sight.
3.
Install the retaining ring into the inner circumference of the module.
4.
Insert the ranging module into the clamp and lock it with the two supplied M2 machine screws.
Connect the USB-C connector to the sight.
USB-C (attaches to the TR2)
X-VISION OPTICS | 5140 MOUNDVIEW DR. | RED WING, MN 55066
X-VISION OPTICS | 5140 MOUNDVIEW DR. | RED WING, MN 550566
THERMAL Laser Rangefinder
Compatible with X-Vision Optics Flex 2
Laser Receiver
Laser Emitter
Flex Series
Thermal Reflex Sight (TR2)
TRR100
