User Manual
Warning: Please read all safety and assembly instructions in this manual before using.
The laws for use in Australian states and territories will vary and need to be adhered to.
Always wear safety and protective equipment before riding.

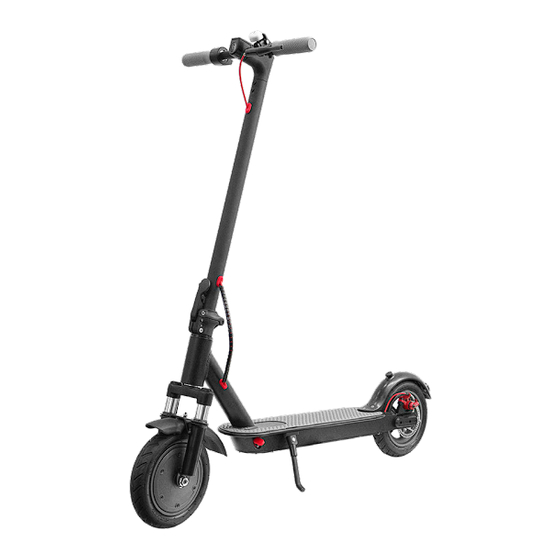

DASH 35 E-SCOOTER
NAV-ESCOT750

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DASH 35 and is the answer not in the manual?

Questions and answers

Summary of Contents for Navig[8]r DASH 35

  • Page 1 Warning: Please read all safety and assembly instructions in this manual before using. The laws for use in Australian states and territories will vary and need to be adhered to. Always wear safety and protective equipment before riding. DASH 35 E-SCOOTER NAV-ESCOT750...

  • Page 2: Safety Warnings

    SAFETY WARNINGS 1. General Safety: • Please note that this electric scooter is not a toy. It is designed for responsible use. • Before using this scooter, ensure to check and adhere to your local laws regarding e-scooter usage and registration in Australia, as regulations may vary across different states/territories.
  • Page 3 SAFETY WARNINGS continued... • Abide by all traffic laws and signs. • Maintain a safe speed, adapting to traffic and weather conditions. • Use both hands to steer and keep both feet on the scooter. • Parking Safely: • Park the scooter in designated areas to avoid blocking pedestrian paths or doorways.

  • Page 4: What's In The Box

    WHAT’S IN THE BOX • Electric Scooter • Power adaptor • Valve extender for inflating tyres • Screws x4 • Wrenches x3 • User manual • Warranty card...
  • Page 5 OVERVIEW Rear brake lever Accelerator Headlight Handlebar latch Display Accelerator Rear brake lever Folding lever Brake light Catch knob Charge port Battery Rear disc brakes Kickstand Motor...
  • Page 6 OVERVIEW continued... Power switch: • Press and hold to turn power on/off. • Press once to switch speed levels. • Double-press to turn front/rear lights on/off. Speed Gear Speed Range 1 - Eco 0 - 10 km/h 2 - D (for Drive) 10 - 15 km/h 3 - S (for Sport) 15-20 km/h...
  • Page 7 SETTING UP CAUTION: When removing the scooter from its box, take care not to damage any cables that are attached to the handlebar, which comes detached from the stem. Gently remove the scooter including the handlebar from the box and place it on the ground. Unfold the kickstand to support it.

  • Page 8: Charging The Battery

    CHARGING THE BATTERY WARNING: • Do not charge indoors. • Power off the scooter before charging. • Only use the supplied charger to prevent damage to the battery and components. • Allow time for the battery to cool after use and before charging.
  • Page 9 CHARGING continued... Charging tips: • Charge the battery after each use to avoid damage and maintain performance for longer. • Charge the scooter at storage temperature or in a moderate environment to ensure battery performance and lifespan. Avoid extreme hot or cold temperatures. •...
  • Page 10 CHARGING continued... How to charge: 1. Open the charge port cover. 2. Insert the charge plug. The indicator on the charger will light up green. 3. Plug the AC plug to a wall outlet; indicator will turn red. Once the battery is full charged, the light will turn green.
  • Page 11 OPERATIONS Riding: 1. Power on the scooter and check the battery level. Charge the scooter if the battery is low. 2. Stand on the deck with one foot and push off with the other foot to start gliding. Put your other foot on the deck to keep both feet stable.
  • Page 12 OPERATIONS continued... WARNING: • Do not put your foot on the folding lever while riding. • Do not use the rear fender as foot brake. • Do not press the throttle when walking with the scooter. • Avoid contacting obstacles with the tyre/wheel. •...
  • Page 13 OPERATIONS continued... Tips for good riding habits: • Riding at a moderate speed can maximize range and conserve energy. • Riding aggressively reduces scooter range and efficiency, whereas smoother and more controlled riding helps conserve battery power. • Riding on flat, smooth surfaces uses less energy than hilly or rough terrain.
  • Page 14 OPERATIONS continued... Folding/Unfolding: 1. Make sure the scooter is switched off. 2. To fold, hold the stem, pull up and hold the tab on the side of the lock-lever, then push out the Lock lever, and lower the stem gently. 3.
  • Page 15 OPERATIONS continued... Pairing with the app: 1. Make sure Bluetooth and Wi-Fi are turned on. 2. Scan the QR code, install the SmartLife app and register/login. 3. Click on Add device icon. 4. Power on the scooter. 5. When the scooter appears on the app, add it. The Bluetooth icon will appear on the scooter display.
  • Page 16 OPERATIONS continued... • Enable/disable cruise mode - ride at a steady speed without the use of the accelerator • View last location (while connected to the phone) • Turn on/off the headlight • Change measuring units • View battery status •...
  • Page 17 OPERATIONS continued... Adjust disc brake: 1. To tighten brake/remove slack from the brake lever, use the 5 mm Allen key supplied to loosen the brake cable bolt shown below. While loose, pull cable through the calliper and slightly close calliper arms together. Re- tighten the 5 mm bolt.
  • Page 18 OPERATIONS continued... Unlock the maximum speed limits: WARNING: By default, the maximum speed is set to 20 km/h. Unlocking the maximum speed comes with inherent risks and potential consequences, so it’s important to be aware of the following before making any changes: •...
  • Page 19 OPERATIONS continued... If you choose to proceed with unlocking your electric scooter’s maximum speed, please do so responsibly and at your own risk. Be fully aware of the potential dangers and ensure you are complying with all applicable laws and regulations.

  • Page 20: Maintenance

    MAINTENANCE • Ensure the scooter is turned off before cleaning. • Do not use a pressure washer on any part of the scooter. • Wipe the scooter with a damp cloth to remove dirt and debris. Cleaning the battery helps maintain heat dissipation and prevents corrosion.
  • Page 21 E-SCOOTER GUIDELINES - BY STATE Common riding rules for all states: • Single person use, have 1 or more wheels • Max weight 60kg unladen(except for TAS 45kg, WA 25kg) • AS approved helmet • 16 years + (except for SA, NT18+) •...

  • Page 22: Specifications

    SPECIFICATIONS Item Parameter Product Unfolded (LxWxH) 107*43*112 cm Folded (LxWxH) 107*43*48 cm Weight (Net) 12.5 kg Rider Max. Payload 120 kg Required height 1.5 - 2 m Machine Drive System Front motor Max. Speed 20 km/h Typical Range 28-30 km Operating -10°...
  • Page 23 Thank you for your purchase! Laser Corporation is 100% Australian owned & operated. To get the most out of your product please read the user manual carefully and keep for future use. For specific information relating to your product such as Spare Parts, FAQs, Warranty claims, and more, please scan the following QR code:...

This manual is also suitable for:

Nav-escot750
