Lowe & Fletcher 2800 Installation Instructions

Installation
Instructions
2800 and 2810 Mechanical Combination Lock

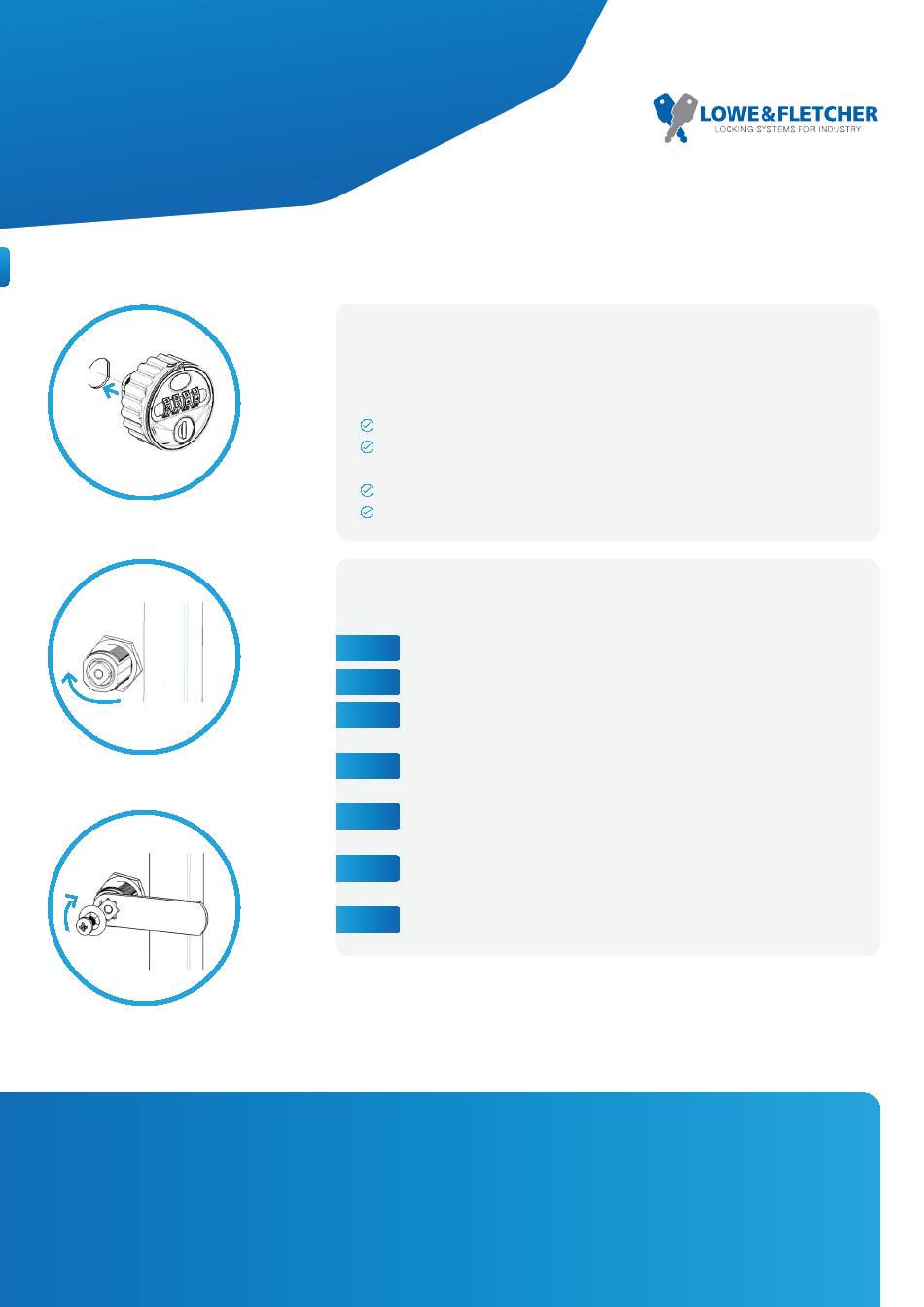

Diagram 1
Position 2800/2810 through door panel as shown.
Diagram 2
Fit locking nut & tighten to secure.
Diagram 3
Fit cam, washer & screw. Tighten with
No.2 Pozidriv
®
Lowe & Fletcher Ltd (UK)
E: sales@lowe-and-fletcher.co.uk
T: +44 (0) 121 505 0400
Lowe & Fletcher Inc (USA)
E: sales@loweandfletcherinc.com
T: +44 (0) 121 505 0400
Special Notes
Before installing the Mechanical Combination Lock, familiarize yourself with the operation
and functions. Unless manufactured to special order:
The default User Code is 2244
This code is common to all standard locks and it is very important that you set your
own personal User Code
Your lock is not secure until you have changed the default User Code
Keep a safe record of your User Code
The 2800 and 2810 locks are supplied with a locking nut, cam, cam washer & cam fixing
screw (M4)
Step 1
Remove all packaging
Step 2
Position the lock on the outside of the door as shown in Diagram 1
Step 3
Holding the lock in position, fit the locking nut and tighten to 5Nm to secure as
shown in Diagram 2
Step 4
Position the cam onto the rear of the lock as required, fit the cam washer and
fixing screw as shown in Diagram 3
Step 5
Tighten the cam fixing screw using a No.2 Pozidriv
damage the screw thread when fitting the screw
Step 6
Before closing the door, test the lock by selecting the correct User Code and
rotating 90
O
Your lock should be ready to use
Step 7
Euro-Locks SA (France)
E: euro-locks@euro-locks.fr
T: +33 (0)3.87.92.61.11
Euro-Locks SA NV (Belgium)
E: sales@euro-locks.be
T: +32 61 212.261
to 1.5Nm. Take care not to
®
