Summary of Contents for eTrikes eTc Cargo

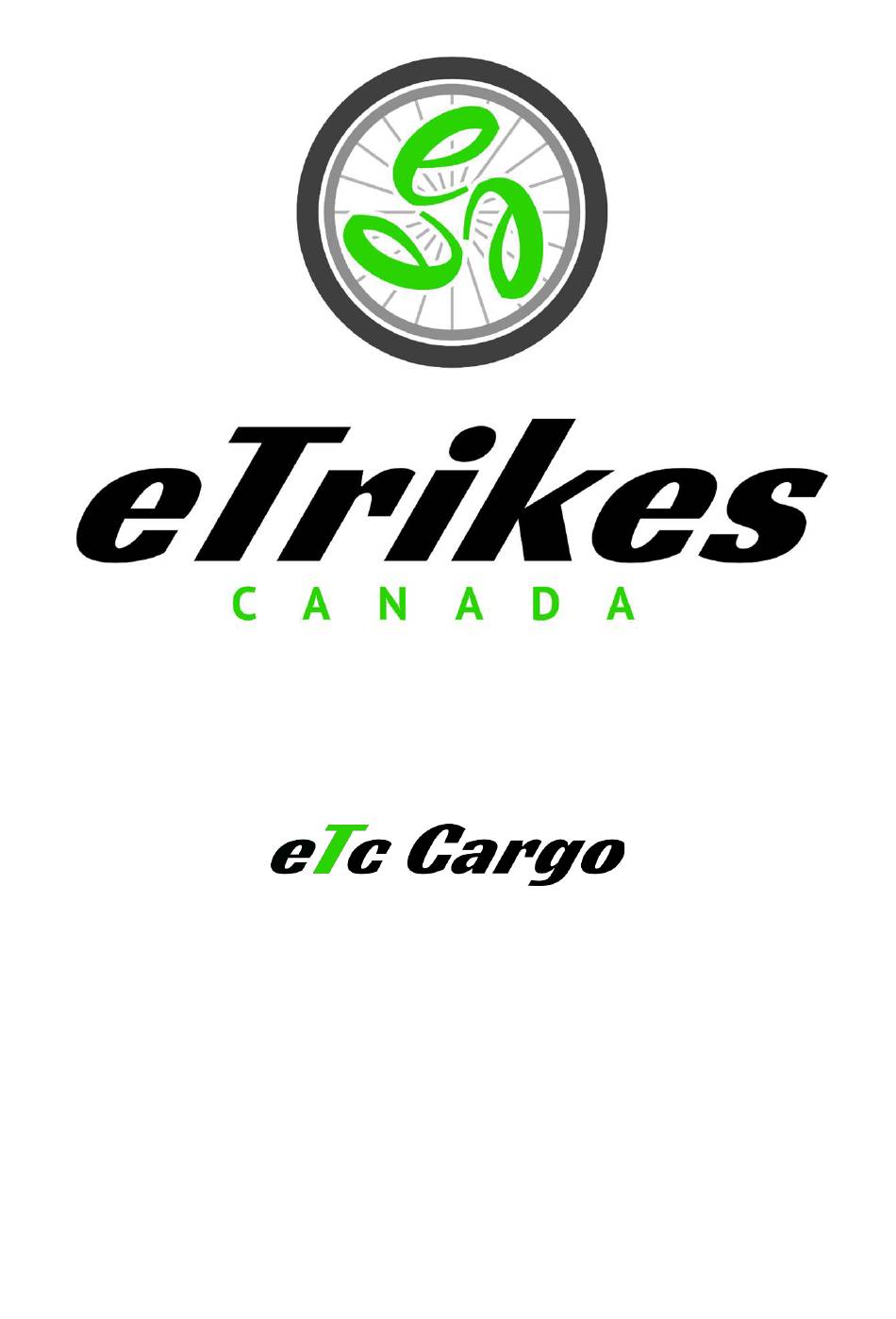

- Page 1 Instruction Manual www.etrikescanada.com...
-
Page 2: Table Of Contents
Cargo - Manual Please use this product according to the instructions. All applicable rules and regulations for operation of an eBike or bicycle apply to this eTrike. You must obey all road rules while operating this trike. Introduction Dear Customer, Before using this eTrike please take time to read this manual. -
Page 3: Record Your Trike Details
Cargo - Manual Please take time to record the following information: Record Your Trike Details Trike Serial Number Battery Serial Number Model Colour Date of Purchase Distributor Contact... - Page 4 Cargo - Manual • These electric trikes are not classified as motor vehicles; however, to drive them on the roads, various provinces have differing laws. • We have worked hard to provide you a quality product, well designed, and without defects.
-
Page 5: Safety Precautions
DO NOT use chargers or other components that have not been approved and tested by eTrikes Canada. eTrikes Canada is not responsible for damages caused by the use of other products not specifically designed and tested for use with this electric bike. -
Page 6: Assembly Instructions
Cargo - Manual Assembly Instructions Carefully remove the bike from its box. Front Wheel Assembly Motor waterproof patch cord fit together according to the arrow indicates the direction (As the picture shows) Remove the nuts from the front axle. Slide the wheel into the slots at the end of the forks. Make sure the disk for the brake slides into the front brake caliber cleanly. -
Page 7: Seat Assembly
Cargo - Manual Seat Post Assembly Seat Installation: Insure the mounting clamp is mounted on the frame over the hole on the seat. Slide the seat base into the hole and adjust to the desired height. Push down the lever on the clamp to secure the seat in the mounting hole. - Page 8 Cargo - Manual Recommended Torque for main parts assembly Handle bar 18~25 Stem 18~25 Saddle 18~25 Seat post 18~25 Front hub 18~25 Rear hub 40~45 B.B.Parts 40~45 Congratulations you have now assembled your eTrike!
-
Page 9: Charging Instructions
Cargo - Manual Charging instructions 1. Out of the box, the battery is only semi‐charged. Charge to its full capacity before first use. 1. For the first three charges, charge the battery for at least 12 hours, 1. Put the female plug of the charger into charging socket of the battery box. Insert the male end of the plug into the outlet. -
Page 10: Lcd Display Unit
Cargo - Manual LCD Display Unit Functions Overview... -
Page 11: Operating Instructions
Cargo - Manual Operating instructions 1. To use the Pedal Assist feature, start to pedal and after you reach a speed of 5 km/h the motor will start to assist you to the maximum speed set in (5). 2. Throttle: Your throttle is on the right hand side of your handlebars. Turn the throttle grip towards you while seated on the bike. - Page 12 Cargo - Manual Riding Tips 1. Before riding, check to make sure the battery is fully charged, that the air pressure in the tires is normal, and make sure the front and back brakes are working properly. Check the tightness of the front and back wheel, handlebar and that the seat is fastened tightly enough.
- Page 13 Cargo - Manual Maintenance • Wheels: Wheels should be centred in the fork or dropouts. If you hear any irregular noise from the wheels or brakes, the wheels should be checked and repaired. Regularly check the spokes of the wheels for tightness and rim alignment.
- Page 14 Cargo - Manual • Batteries: There is a locking key to lock your battery onto the trike frame to discourage theft. Do not attempt to open any of these batteries in any way! Doing so may cause chemical, electrical, and/or fire hazards.
