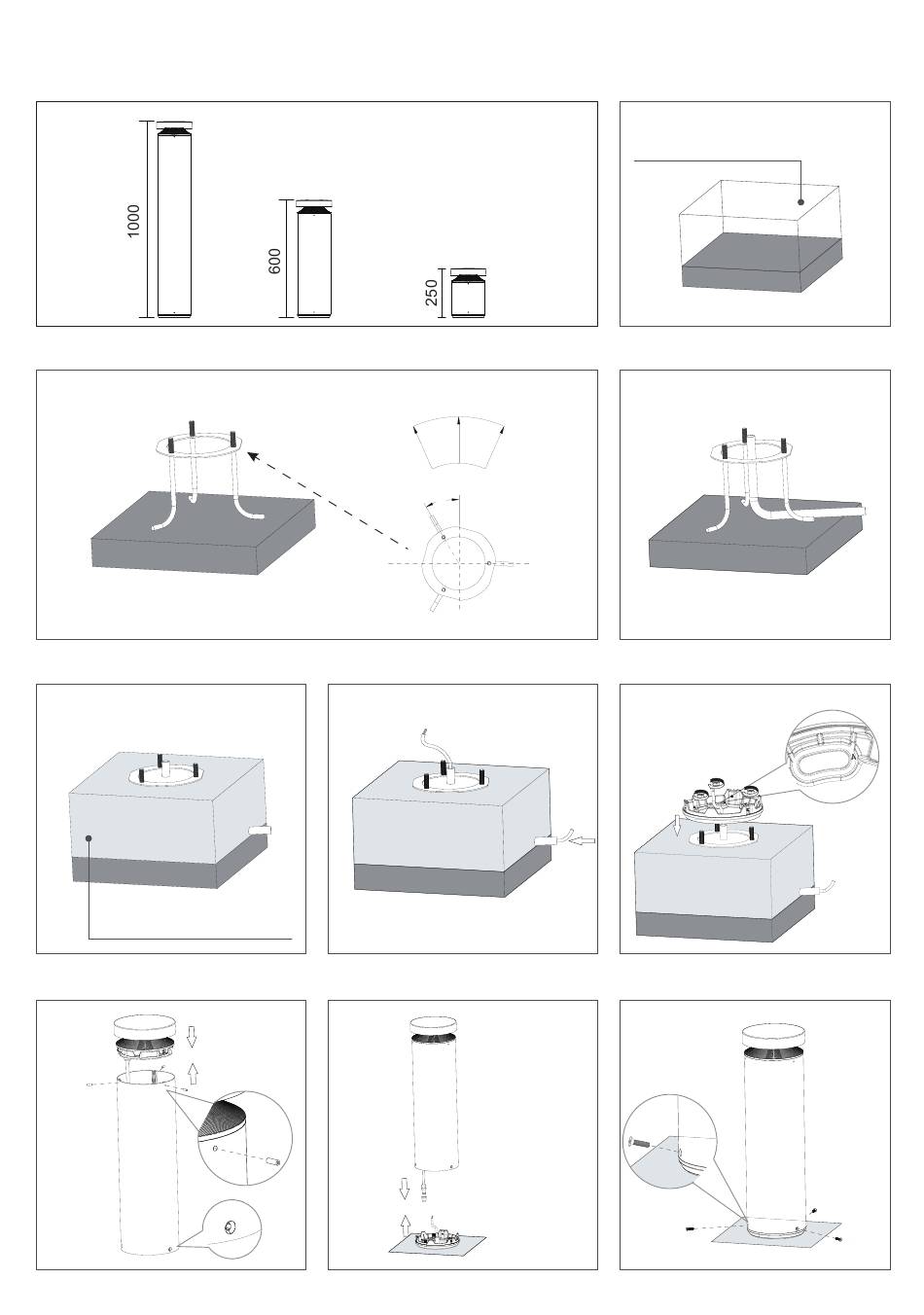

Installationinstruction
2. Put the L-type bracket into the hole (Please pay attention to the 180° light direction)
Foundation concrete block.
4. Make sure the bracket plate is flat with ground
7. Fix the bollard head and bollard tube
Please pay attention to
the 180° light direction.
30°±8°
5. Put the wire through conduit tube
AC200-240V
8. Connect the bollard wire to the electricity cable
Minimum 300x300x150mm
(mm)
1. Dig a hole with minimum size 300x300x150mm
3. Install the conduit tube
6. Fix the mounting plate to the L-type bracket
9. Fix the bollard tube onto the mounting base
(Please pay attention to the 180° light direction)
Hole A
Advertisement
Summary of Contents for NEXOL Bole-R
- Page 1 Installationinstruction Minimum 300x300x150mm (mm) 1. Dig a hole with minimum size 300x300x150mm Please pay attention to the 180° light direction. 30°±8° 2. Put the L-type bracket into the hole (Please pay attention to the 180° light direction) 3. Install the conduit tube Hole A Foundation concrete block.
- Page 2 Installationinstruction Minimum 300x300x150mm (mm) 1. Dig a hole with minimum size 300x300x150mm Please pay attention to Φ125mm the 180° light direction. hole Φ=12mm 30°±8° Foundation concrete block. 2. Put the conduit tube 3. Fix the conduit tube, Ground drilling (three equal parts on a 125mm diameter circle, the hole diameter is 12mm), Please pay attention to the 180°...
