Summary of Contents for TJM RPL12-100TJM

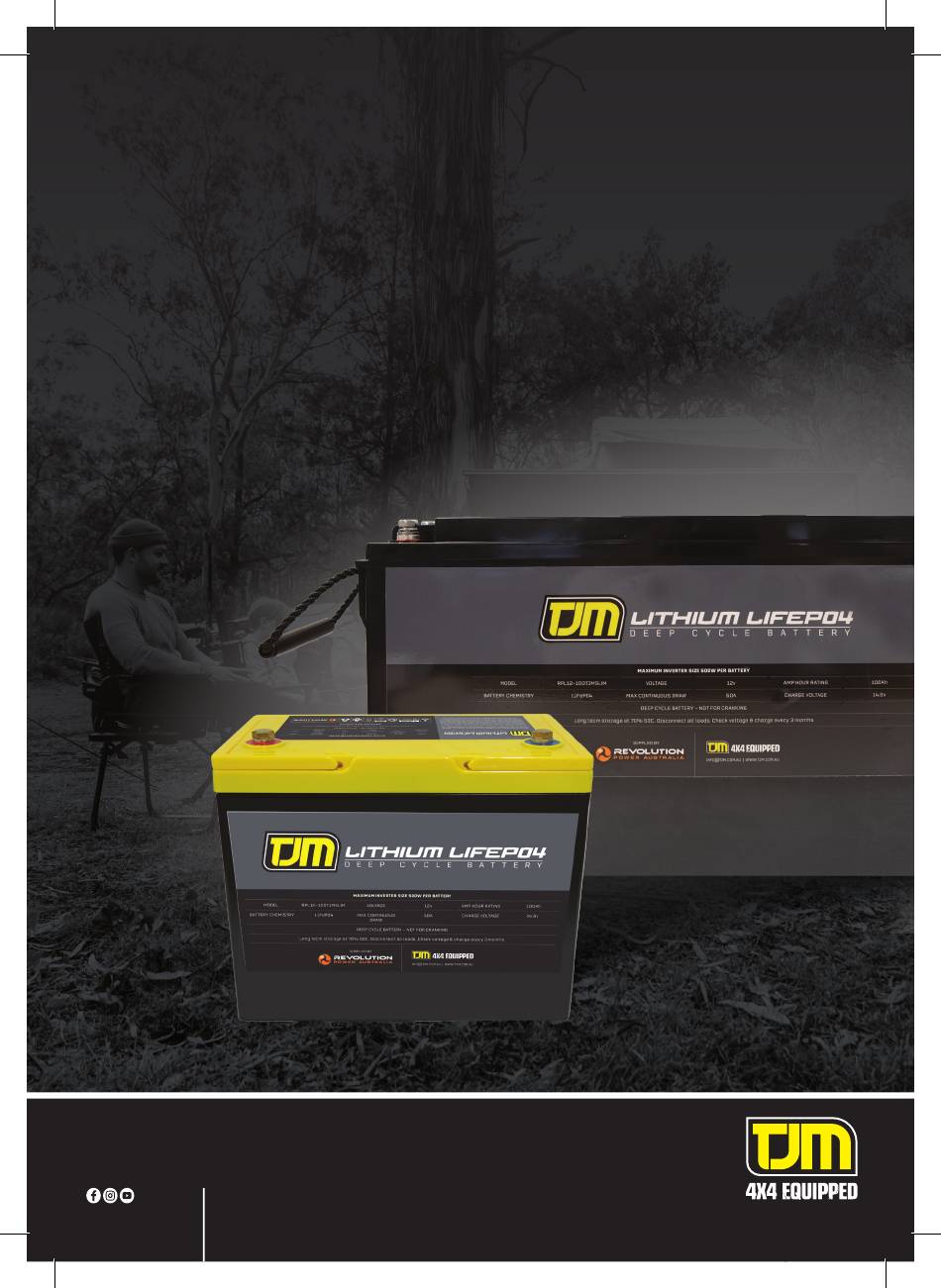

- Page 1 TJM LITHIUM LIFEPO4 DEEP CYCLE BATTERIES. RPL12-100TJM & RPL12-100TJMSLIM TAKE THE LEAD. TJM4x4 www.tjm.com.au...
-
Page 2: Table Of Contents
CONTENTS. Pg. 3 Important safety information. General information. Pg. 3 Specifications Pg. 4 Installation and use Pg. 5 Connection. Pg. 5 Charging Pg. 6 Low battery. Pg. 6 Discharge and inverter usage Pg. 7 Connecting batteries in parallel Pg. 8 Storage and transportation. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION. For safe and optimum performance, Revolution Power Australia LiFePO4, Lithium Iron Phosphate Batteries must be used properly. Carefully read and follow all instructions and guidelines in this manual and give special attention to the CAUTION and WARNING statements. Please keep this manual for future reference. -
Page 4: Specifications
SPECIFICATIONS. RPL12-100TJM RPL12-100TJM SLIM Usable Capacity Total Capacity Recommended Continuous Discharge Cell Rating 0.5C 0.5C Maximum Discharge Peak Discharge 120A 120A Recommended Charge Current Maximum Charge Current Recommended Charge Voltage 14.6V ± 0.2V 14.6V ± 0.2V Charge Temperature Range 0ºC - 60ºC 0ºC - 60ºC... -
Page 5: Installation And Use
INSTALLATION AND USE. Your Revolution Power Australia battery must be installed in a dry and cool location. Revolution Power Australia recommends the use of battery trays and straps as well as battery boxes as the preferred mounting method. Ensure that sufficiently rated fasteners are used to hold the tray -firmly to the mounting material. -
Page 6: Charging
CHARGING. Lithium batteries require specific charging algorithms. The charging source required must include the correct charging algorithm and voltage parameters to ensure long life and maximum capacity. Revolution Power Australia lithium batteries require the use of chargers with a lithium LiFePO4 setting for all AC chargers, DC-DC charger, and Solar controllers. -
Page 7: Discharge And Inverter Usage
DISCHARGING AND INVERTER USAGE. Lithium batteries can be discharged at high rates, however for optimum battery life, Revolution Power Australia do not recommend discharging the battery beyond the batteries specification. This is most important when using an inverter to provide power to appliances that require 240V (Kettles, Toasters, Coffee Machine). -
Page 8: Connecting Batteries In Parallel
CONNECTING BATTERIES IN PARALLEL. When wiring a battery bank, it is easy to make a mistake. One of the most common mistakes is to parallel all the batteries together and then connect one side of the parallel battery bank to the electrical installation. - Page 9 Current will always choose the path of least resistance. Most of the current will therefore travel through the bottom battery. And only a small amount of current will travel through the top battery. The correct way of connecting multiple batteries in parallel is to ensure that the total path of the current in and out of each battery is equal.
-
Page 10: Storage And Transportation
WARRANTY STATEMENT. Warranty is valid for 5 years from date of purchase. For warranty information visit: www.tjm.com.au. Important note. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. - Page 12 Distributed by TJM Australia 17 Johnstone Road Brendale Q 4500...
