USER AND SERVICE INSTRUCTION
MANUAL
SPARE PART LIST
– Translation of the original instructions –

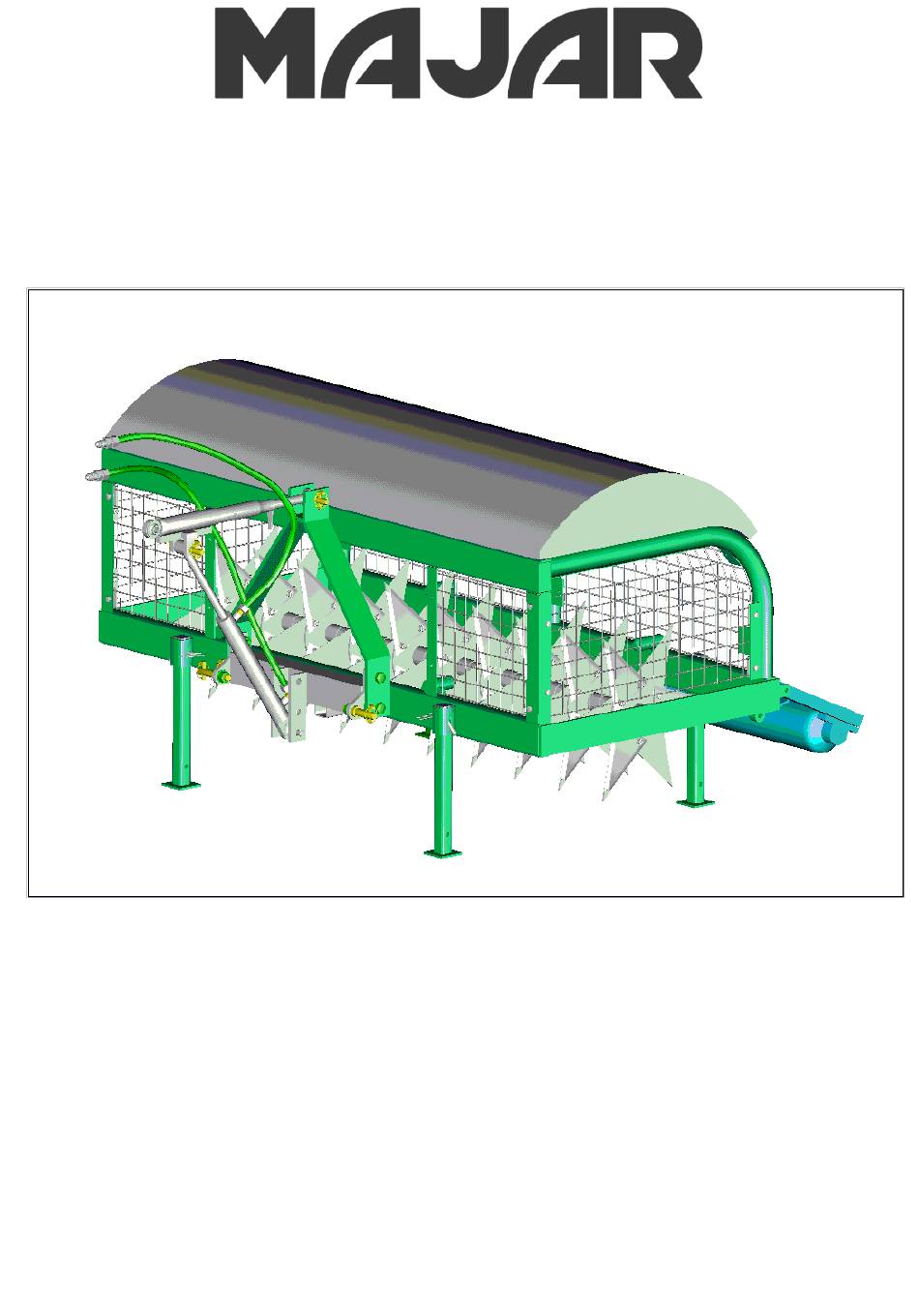

Aerator AEROVERT 130/180
Please read the following instructions carefully before operating the machine and refer to them
as needed. If you do not understand a part of the user manual, please contact your MAJAR
reseller or:
MAJAR
1 Route de Montréal - CS30074
11890 CARCASSONNE Cedex 9
FRANCE
Phone 0033 / 4 68 25 38 16
Advertisement
Table of Contents
Related Manuals for MAJAR AEROVERT 130
Summary of Contents for MAJAR AEROVERT 130
- Page 1 – Translation of the original instructions – Aerator AEROVERT 130/180 Please read the following instructions carefully before operating the machine and refer to them as needed. If you do not understand a part of the user manual, please contact your MAJAR reseller or: MAJAR 1 Route de Montréal - CS30074...
-
Page 2: Table Of Contents
SERIAL N°: ....In line with the goals of continuous improvement MAJAR reserves the right to change the machines without changing the sold machines. The illustrations and characteristics of this manual may vary slightly on your due to production changes. -
Page 3: Technical Data
Hydraulic load balancer INSPECTION CHECKLIST The assembly, installation and commissioning of the machine is the MAJAR reseller’s responsibility. Please read carefully the use and care manual and the safety regulations. Make sure that the indicated points of the checklist had been verified before delivery and on delivery and amended if necessary before delivering the machine to the owner. -
Page 4: Safety Regulations
SAFETY REGULATIONS * Never allow anybody to go under the Aerovert when lifted or when charging or discharging the Aerovert WARNING * Never go or work under the Aerovert or its accessories unless it is blocked and in a locked position with enough security *While maneuvering on slope always work up and down, never Some illustrations may show the machine without protective across the slope... -
Page 5: Safety Stickers
SAFETY STICKERS 11850 CARCASSONNE TEL: 04 68 25 38 16 TYPE : N░de SERIE: Move away from the machine Attention Read carefully the instructions Identification and Danger of crushing hands and feet before using the machine conformity plate A sticker placed in the back, on the right and left side A sticker placed in the front. -
Page 6: Installation And Commissioning
INSTALLATION AND COMMISSIONING The installation and commissioning of the tool are the responsibility of the MAJAR reseller. The machine must be delivered fully mounted, lubricated and adjusted to the normal operating conditions COUPLING OF THE MACHINE The Aerovert has to be coupled to the rear of an agricultural tractor with 3 point tractor lift cat. I. -
Page 7: Montage And Accessory Change
MONTAGE AND ACCESSORY CHANGE The Aerovert comes mounted, however the tools are interchangeable and can be disassembled and reassembled depending on the work to do. Never disassemble the frames supporting the tine rollers without unlocking the drainage tilting. When the Aerovert is equipped with a hydraulic load balancer (CPH), it is necessary to change accessory, to replace the push bar of the CPH with a other push bar and use the tractor lifting to obtain a vertical offset needed for pushing the tools. -
Page 8: Use
Check the tightening of the bolts at the tightening torque at the end of the manual. The safety is a challenge that concerns the most while designing and manufacturing this tool. However, the efforts of the constructor may be shattered due to user carelessness. The accident prevention depends on prudence and training of staff in charge of using and maintenance of the machine. - Page 9 Adjustment of the Aerovert • Linkage adjustment: Adjust the idlers of the lower lings of the tractor so that the aerator is centred and that the idlers only permit the necessary movement for the lifting hitch. Adjust the length of the 3rd point so that the chassis is horizontal. •...
- Page 10 -The trap : Pivot the handle A. and tilt the trap B downwards. -Evacuate the le content of the roller. -Replace the trap with the piece D in the hole C. Tilt the trap forwards to finish positioning and lock the handle A.
-
Page 11: Maintenance By User
MAINTENANCE BY USER DANGER Before performing service or maintenance, stop the motor, apply the handbrake and remove the key before all settings, adjustments, maintenance or disassembly. Never let anyone else to the driver’s cabin DAILY MAINTENANCE BEFORE STARTING WORK • Lubrication: Do not leave excess grease on the pieces. -
Page 12: Malfunction And Remedy
MALFUNCTION AND REMEDY PROBLEM CAUSE REMEDY Aerovert is Supports of the lifting armes Lift the supports of the lifting unbalanced have uneven length arms Push bar (3 point) Adjust push bar so that the Incorrectly adjusted Aerovert is horizontal The tine roller Tines are clogged Unclog the tines Is inefficient... -
Page 13: Guarantee
FRANCE SPARE PART LIST According to Article L.111-3 of the Consumer Code and of the Decree implementing the Code N°2014-1482 of 9th of December 2014, the availability duration of indispensable spare parts for use of MAJAR material is 7 years.
