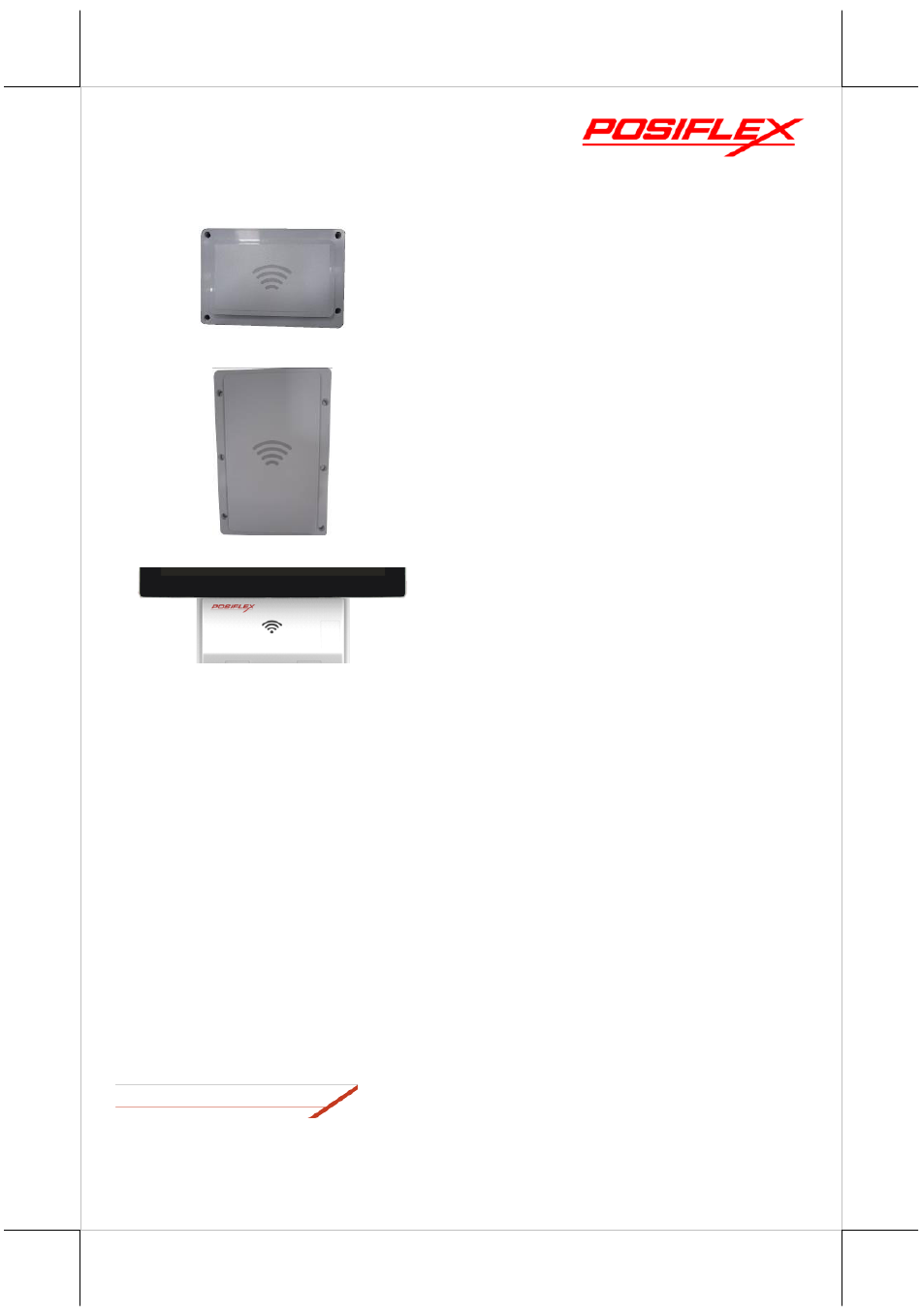

Package Contents NR-100 Module…………..…...(x1) USB Cable………………………(x1) TABLE OF CONTENTS NR-100 for TK-32xx Series Kiosk – P.2-P.4 NR-100 for TK-21xx Series Kiosk – P.4-P.7 NR-100 for JK Series Kiosk – P.7-P.10 NR-100 for EK Series Kiosk – P.11-P.13 NR-100 Ver. C0...
Page 2
Installing the NR-100 to TK-32xx Series Kiosk Turn key to the right, then open the front door. Connect USB cable to the NR-100. For TK-3211; Android For TK-3231/3251/3232/3252; Version: Connect one side of Windows Version: Connect one side 9-Pin USB cable to the NR- of 5-Pin USB cable to the NR-100.
Page 3
Connect USB cable to the main board For TK-3211/3231/3232/3251/3252: Please refer to the cable routing sticker on the PC box to connect the other side of the USB cable to the main board and put the cable in order through cable clamp.
Page 4
Push the front door back to the belly unit. Installing the NR-100 to TK-21xx Series Kiosk Turn the key of the belly system unit to the right. And then pull the front door of the belly system unit to slide open like a drawer.
Page 5
NR-100 For TK-2111; Android Version: Connect one side of 9-Pin USB cable to the NR-100. You can refer to the Step.2 in Installing the NR-100 to TK- 32xx Series Kiosk section. Remove the small metal plate from the belly system unit of the kiosk by loosening and removing the four hex nuts.
Page 6
Connect USB cable to the main board. Please refer to the cable routing sticker on the PC box to connect the other side of the USB cable to the main board and put the cable in order through cable clamp. (1) Pull the sliding bar between the monitor and the belly system unit, and then (2) gently push the monitor to the belly system unit until the monitor is completely closed.
Page 7
Push the front door of the belly system unit to slide close like a drawer. Installing the NR-100 to JK Series Kiosk Connect USB cable to the NR-100. For JK-3210; Android Version: For JK-3230/3250/3232/3252; Connect one side of 9-Pin USB Windows Version: Connect one side cable to the NR-100.
Page 8
Unlock and open the touch monitor. For JK-24xx/27xx Series: Open the touch monitor like the door refer to the below picture. For JK-32xx Series: Hold two sides of the touch monitor and then gently pull it out towards you slowly. Once the crank rod stopper drops down slowly begin to release the touch monitor until it stops.
Page 9
Crank Rod Stopper for Touch Monitor Remove the metal plate from the inside of the touch monitor by loosening and removing the six hex nuts. For JK-24xx/27xx Series: For JK-32xx Series:...
Page 10
Install and fix the NR-100 module from the inside of the touch monitor with the six original hex nuts. Install NR-100 with the original hex nuts Connect the USB connector of the cable to the system computer. You can refer to the Cable Routing sticker on the system computer.
Page 11
Installing the NR-100 to EK Series Kiosk Turn the key counterclockwise to open the front door. For EK-xx10 (Android version system), stick the NFC card reader board inside the front door of the kiosk with double-sided tape like the below picture, and then connect the 9-Pin USB cable with the NFC card reader board and the main board.
Page 12
For EK-xx30/50/32/52 (Windows version system), stick the antenna inside the front door of the kiosk with double-sided tape like the below picture. For EK-xx30/50/32/52 (Windows version system), then fix the NFC card reader board to the front door with four ψ3 screws.
Page 13
USB cable with the NFC card reader board and the main board. Using the NR-100 Card Reader After installing the drivers and tools, you can start to operate the NR-100. To retrieve data through the NFC/RFID reader, tap your Mifare card against the NFC/RFID reader.
