Summary of Contents for Auchan MAPE20V

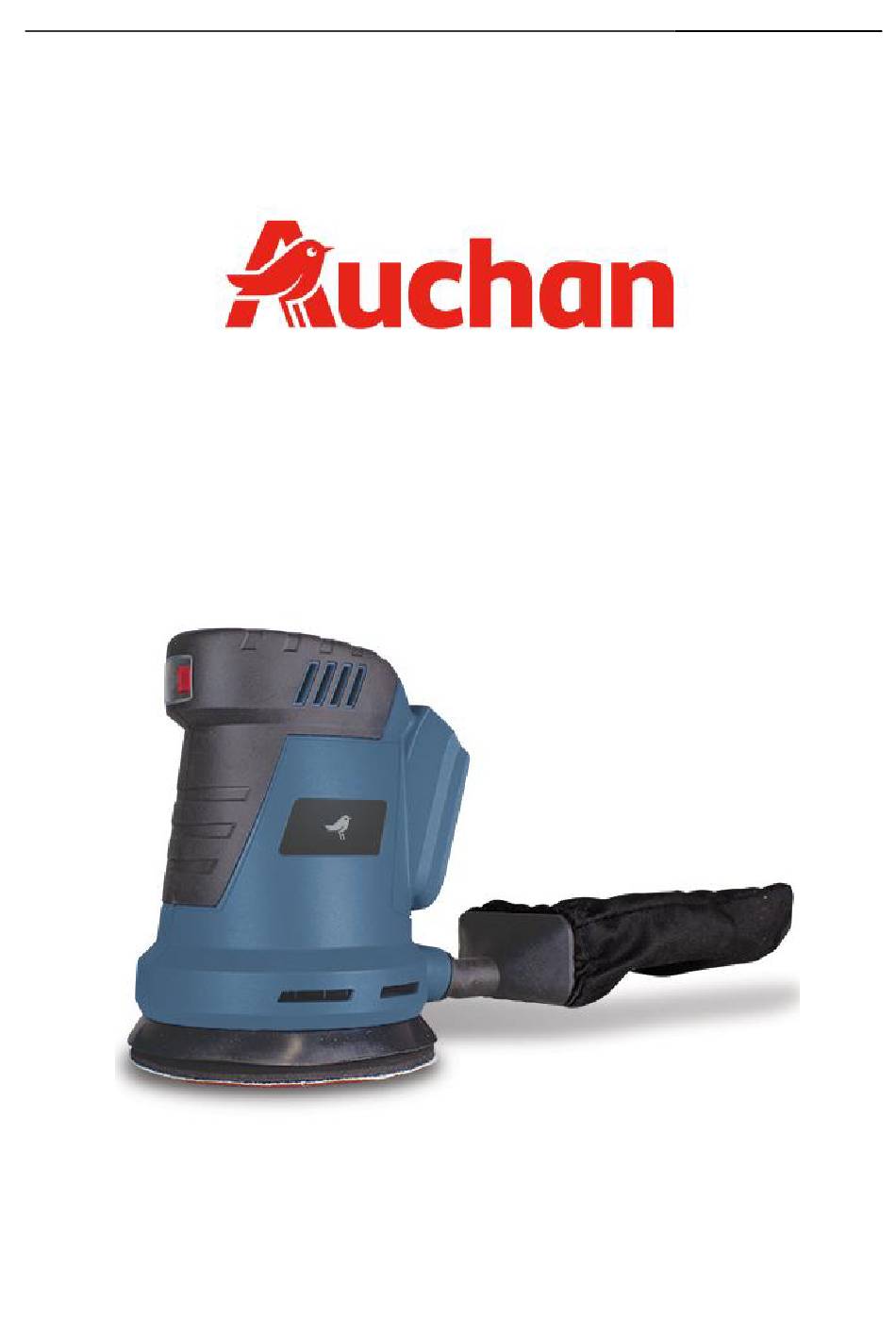

- Page 1 ORIGINAL INSTRUCTION CORDLESS OBRITAL SANDER Model: 600123624 (MAPE20V) USER GUIDE CAUTION: Read this manual before use this machine!
-
Page 2: Table Of Contents
CONTENTS 1... INTENDED USE…………………………………………………………………………………………3 2... SAFETY INSTRUCTIONS………………………………………………………………….…………..3 3... YOUR PRODUCT……………………………………………………………………………………..6 4... TECHNICAL DETAILS………………………………………………………………………………..6 5... OPERATION…………………………………………………………………………………………..…7 6... MAINTENANCE………………………………………………………………………………………..8 7... DISPOSAL……………………………………………………………………………………………..8 8... DECLARATION OF CONFORMITY…………………………………………………………….……9 9... WARRANTY……………………………………………………………………………………………10 10. PRODUCT FAILURE………………………………………………………………………………….11 11. WARRANTY EXCLUSIONS………………………………………………………………………….12... -
Page 3: Intended Use
1. INTENDED USE This product is intended exclusively for non-professional use for dry sanding of wood, plastic, putty and paintIing surfaces or varnished.This product is not suitable for sanding plaster-based substrates. This product is not intended for commercial use. The generally recognized accident prevention regulations and the security provided must be observed. - Page 4 b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 5 accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
-
Page 6: Your Product
3. YOUR PRODUCT 1: On-Off switch 4: Dust bag 2: Battery socket 5: Sanding plat 3: Dust connection 4. TECHNICAL DETAILS Power supply 20 V d.c. No Load Speed 12000 min Sanding plate dimensions Ø125 mm ENERGY PACK 600105097 (MABC20V2A) Charger ( not included) Input 220-240V~ 50-60Hz, 65W, Output 21V d.c., 2.5A ENERGY PACK 600105097 (MABC20V2A) -
Page 7: Operation
5.1 CHARGING THE BATTERY PACK Note: Battery and charger not included, you can buy the energy pack 600105097 (MABC 20V 2A) from Auchan. IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions: Assure that the charger you are using matches your battery pack. -
Page 8: Maintenance
Insert the connection adapter into the outlet of the sander. For the suction of dust particularly harmful to health, carcinogenic or dry, use specific vacuums. After completing the work, empty the dust collection bin. 5.4 SWITCHING ON/OFF - Switching on: Put the on / off switch (1) in position [ I ], - Switching off: Set the on / off switch (1) to position [ 0 ]. -
Page 9: Declaration Of Conformity
SAS OIA 600105066 600123624 Ref / Code : 600105065 3665257351533 3665257256579 3665257351533 Ref fournisseur / Supplier ref : 3665257256562 AUC JIGSAW 20 V Description : CORDLESS ANGLE GRINDER 115MM 20V WITHOUT B AUC CORDLESS SANDER 20V Directive 2014/30/UE (EMC) Directive 2011/65/UE+ (EU) 2015/863 (ROHS) Directive 2006/42/CE (MACHINE) EN IEC 55014-1: 2021 EN IEC 55014-2 : 2021... -
Page 10: Warranty
9. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 11: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 12: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 13 NOTES...
- Page 14 NOTES...
- Page 15 NOTES...
- Page 16 SAS OIA, 200, rue de la Recherche,Le Colibri BP 169, 59650 Villeneuve d’Ascq, France Tel: 00 800 5922 5922 Made in China(09/2022) - Réf. 600123624 (MAPE20V)
