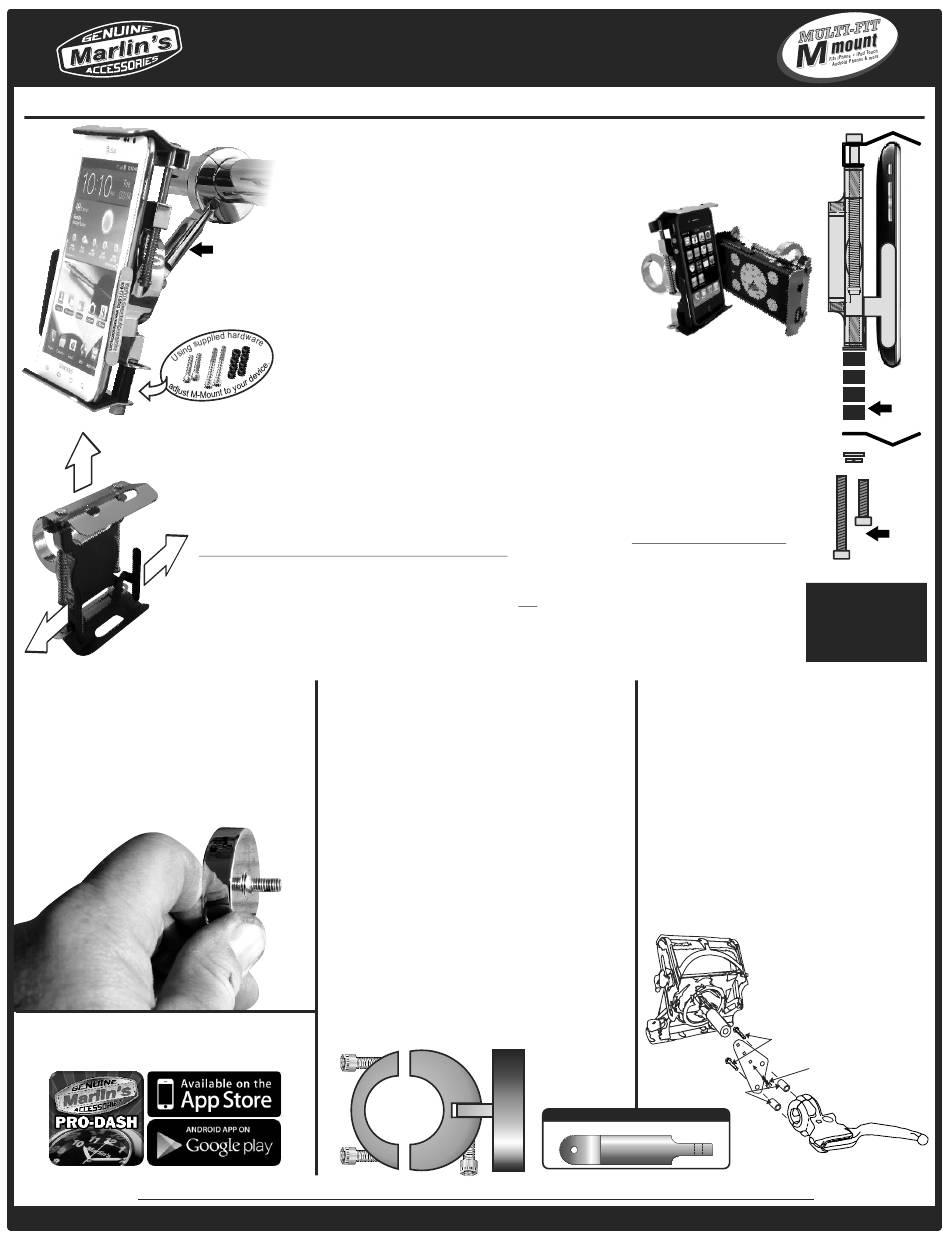

Marlin M Mount Multi-Fit Installation, Care And Use Manual

CAUTION: DO NOT under any circumstances operate a phone or any other portable device during the operation of your vehicle.
Begin by making sure your electronic device fits properly in the mount, the device
should be snug and secure and allow access to any necessary plugs and buttons. Start
by placing your device next to the mount and determining if any spacers are required to
fit the device properly. Removing the two bolts at the bottom of the unit and re-assembling
spring loaded jaw while adjusting the side rails.
Remove your device from the mount and tighten the two bolts at bottom to fix the side rails and bottom plate in place.
Once you have ensured the device fits properly, find a convenient, visible position for the mount that will not interfere with
the operation of the vehicle.
If you are mounting using the adjustable handlebar mount and need to move the unit away from the bars use the included
2 ½" extension rod as shown below.
Once the device fits into the holder snugly and you have found the proper location you can start to install hardware to the
vehicle. The M Mount may be installed on a Marlin's TOCS for flat panel install (Left Text), a handlebar clamp adjustable
style HBC (Center Text) shown below or the Bullet Billet BBCS2 or Talon style mount - Marlin's Clock or Thermometer
Brake/Clutch style BCM mount is not suitable for the M Mount or the Perch style mount (Right Text)
If you purchased the M Mount with an included clamp follow the directions below, if you plan on mounting the M Mount to
another style Marlin's mount follow the installation instructions that came with the mount to attach it to the vehicle.
During installation make sure that the unit or any parts do not fall and become damaged or damage the vehicle.
Install M Mount head unit onto round receiver and secure using one supplied hex set screw
(there are two holes provided in the back of the mount for convenience but it is only necessary to secure one)
Place your device at an angle in the bottom of the unit and pull the spring loaded jaw up, move your device inside the
C
mount and release the spring loaded jaw to secure device in the mount.
Make sure the device rests in the center of the V grooves at top and bottom and is secure.
Flat Panel Mounting Bracket
Carefully remove and confirm content of package
containing TOCS flat panel mounting items:
Items listed above plus (1) TOCS / chrome cup with
center mounting hole, (1) 1/4" X 20 screw
Secure chrome cup to panel or other stable area using
supplied screw or suitable hardware.
Install M Mount head unit to secured cup using single
hex set screw making sure the set screw is secure.
The Pro-Dash App provides a convenient,
easy to see speedo, clock, temp, altitude,
compass and more on your iPhone 3Gs or
higher and Android Smartphones
Note:PRO-DASH requires GPS signal and iPhone 3Gs or newer.
ALL RETURNS MUST BE PACKED TO ELIMINATE DAMAGE - DAMAGED RETURNS WILL NOT BE ACCEPTED
Marlin's M Mount Multi-Fit
Installation, Care and Use of IPhone - IPod Touch - SmartPhone Holder
Marlin's M Mount Multi-Fit allows you to quickly and easily locate your iPhone (All Models), iPod
Touch, Samsung Galaxy and most other smart phones and newer GPS devices on your motorcycle,
ATV or other personal pleasure vehicles and to swivel and rotate it to be in easy view and reach .
Your new M Mount is made of the finest materials for easy cleaning and long life. You can care for
your M Mount using cleaners and polishes suitable for billet aluminum, chrome and stainless steel.
Carefully remove and confirm content of package:
One (1) M Mount (assembled), (8) black round spacers, (2) long
bottom bolts, (2) extra long bottom bolts (1) 2 ½" extension bar,
2 ½" Optional
your package may also include one of three different mounting
Extension
options shown below.
go's here.
the unit with any spacers if needed as shown at right. Place your device
at an angle in the bottom of the unit and pull the spring loaded jaw up,
move your device inside the mount and release the spring loaded jaw
to secure device in the mount. Make sure the device rests in the center of
the V grooves at top and bottom and is secure.
Adjust the side rails to secure the device horizontally by loosening the bottom
bolts and moving the side rails in or out as close to the base as possible so you do
not deform them, you may wish to relieve tension on the device by pulling up on the
HBC Handlebar Mounting Bracket
Carefully remove and confirm content of package
containing one of three different sized handlebar mounts
(1" & 7/8" - 1 1/4" - 1 ½"):
Items listed above plus (1) adjustable HBC mounting
clamp with 3 installed screws, (1) 2 ½" extension bar
with screw, washer and nut.
The 2 ½" extension will fit between the head and the
clamp of the HBC mount that attaches to the handlebar
and will extend the M Mount allowing you to get more
adjustment from the unit.
Remove the two rear screws from the HBC style
handlebar clamp, separating the two clamp halves.
Place the handlebar clamp halves in the position of your
choice on the bars (keep away from curves
bar may not be a consistent thickness),
re-insert the supplied screws and tighten gently and
evenly (for the mount to tighten properly there should be
a small gap between the two halves,
so the gap will vary
L oosen the hex screw on the round head portion (pivot
adjustment) of the clamp, move it into the desired
position and tighten hex screw to lock head in place
(install 2 ½" extension if desired).
Install M Mount head unit to secured cup using single
hex set screw making sure the set screw is secure.
Split clamp
HBC mount
Technical support: 248-683-1536 www.marlinsclocks.com
or areas the
no bar is the same
- DO NOT over-tighten.
Optional Use Extension Arm
2 ½" extension Part # 600050 - Supplied
M Mount can rotate
360 degrees to be
used in horizontal
or vertical format
The M Mount will accommodate
most skins and cases, be sure
the device is secure. You don't
want to just be holding the case
or skin and not have the device
secure, so double check.....
Perch Mounting Bracket
Carefully remove and confirm content of package
containing Perch clamp mounting items:
Items listed above plus (1) mounting plate
with holes, (2) extended screws for mounting
(will be SAE or Metric available separately),
1 1/4" extension rod with mounting screw,
(2) stand-off spacers.
1.Remove two control clamp screws from
bike. (We suggest from the clutch side
but the brake side will also work)
2.Place stand-offs and bracket up to control clamp
and install two supplied extended screws to secure
bracket.
3.Use thumb screw to secure Mount to
bracket in one of three mounting holes.
Install M Mount head unit to secured cup using single
hex set screw making sure the set screw is secure.
two supplied screws
screw & multiple
mounting hole options
stand-offs
4 Spacers:
Use All
Some
or None
2 Size Bolts:
Choose the
best bolts
for the
number
of
spacers
you use
