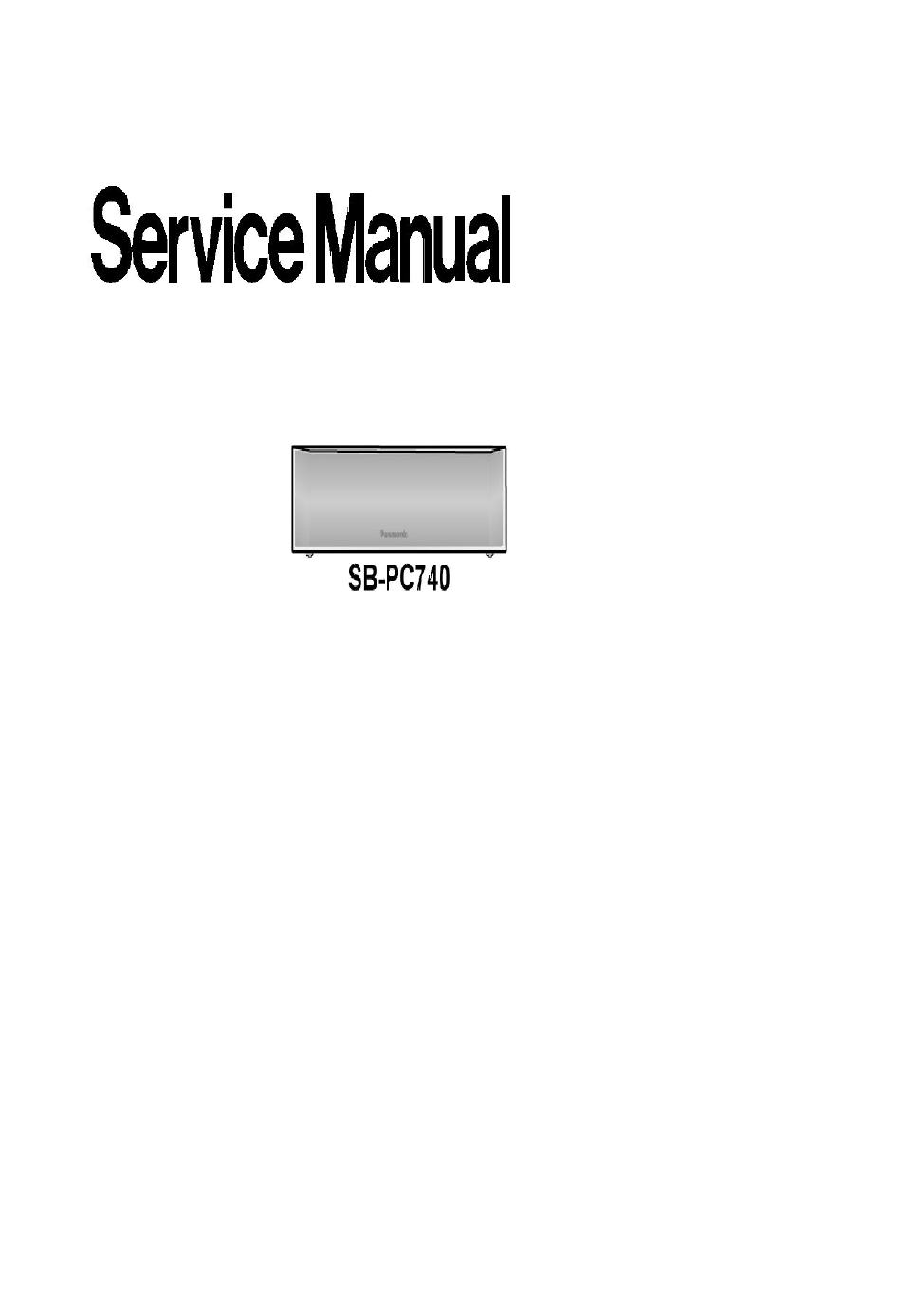

ORDER NO. MD0512488C7
A6
Speaker System
SB-PC740P
Colour
(S)... Silver Type
SPECIFICATIONS
Specification
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-PC740 and is the answer not in the manual?

Questions and answers

Summary of Contents for Matsushita Electric SB-PC740

  • Page 1 ORDER NO. MD0512488C7 Speaker System SB-PC740P Colour (S)... Silver Type SPECIFICATIONS Specification...
  • Page 2: Assembling And Disassembling

    Front Speaker : SB-FS740P-S Surround Speaker : SB-FS741P-S Center Speaker : SB-PC740P-S Subwoofer : SB-W740P-S 2005 Matsushita Electric Industrial Co. Ltd.. All rights reserved. Unauthorized copying and distribution is a violation of law. 1. Assembling and Disassembling “ATTENTION SERVICER” Some chassis components may have sharp edges. Be careful when disassembling and servicing.
  • Page 3 Special reassembly procedures are described only when required. 3. Select items from the following index when checks or replacement are required. 4. Refer to the Parts No. on the page of “Parts Location and Replacement Parts List” (Section 5), if necessary. Below is the list of disassembly sections - Disassembly of Front Panel Assembly - Disassembly of Woofer 1...
  • Page 4 Step 1: Remove 6 screws from the Rear Cabinet Assembly. Step 2: Insert an Allen key into the top hole of the Rear Cabinet Assembly and push the Front Panel Assembly as arrow shown. 1.3. Disassembly of Woofer 1 Follow (step 1) to (step 2) in Item 1.2.
  • Page 5 Step 1: Detach the (+) black and (-) gray wires from the Woofer 1. Step 2: Remove 4 screws from the Woofer 1. 1.4. Disassembly of Woofer 2 Follow (step 1) to (step 2) in Item 1.2.
  • Page 6 Step 1: Detach the (+) red and (-) blue wires from the Woofer 2. Step 2: Remove 4 screws from the Woofer 2. 1.5. Disassembly of Terminal Jack Follow (step 1) to (step 2) in Item 1.2.
  • Page 7 Step 1: Detach the (+) red and (-) gray wires from the Terminal Jack. Step 2: Remove 1 screw from the Rear Cabinet Assembly.
  • Page 8: Connection Of The Speaker Cables

    Step 3: Remove the Terminal Jack from the Rear Cabinet Assembly. 2. Connection of the Speaker Cables - Be sure to connect speaker cables before connecting the AC power supply cord. - The load impedance of any speaker used with this unit must be 4 - Be sure to connect the cable from the right speaker to the right terminal and the cable from the left speaker to the left terminal.
  • Page 9 - To prevent damage to circuitry, never short-circuit positive (+) and negative (-) speaker wires. - Be sure to connect only positive (white) wires to positive (+) terminals and negative (blue) wires to negative (-) terminals. Incorrect connection can damage the speakers. Positioning the speakers How you set up your speakers can affect the bass and the sound field.
  • Page 10 proper ventilation. - To allow for proper ventilation and to maintain good airflow around the main unit, position it with at least 5 cm (2”) of space on all sides. - Do not block the ventilation holes of the main unit. Center speaker - Vibration caused by the center speaker can disrupt the picture if it is placed directly on the television.
  • Page 11: Exploded View

    - Reduce the volume in the following cases to avoid damage. - When playing distorted sound. - When the speakers are reverberating due to a record player, noise from FM broadcasts, or continuous signals from an oscillator, test disc, or electronic instrument.
  • Page 12 4.2. Packaging Note: The diagram below shows the packaging for SB-PC740P-S.
  • Page 13: Replacement Parts List

    5. Replacement Parts List Notes : - Important safety notice : When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list. - [M] markings in the Remarks columns indicates parts supplied by PAVCSG.
  • Page 14 FLE0512W/S...
