1RC1025 - 1/18 Asphalt Truck Conversion Kit - Instruction Sheet

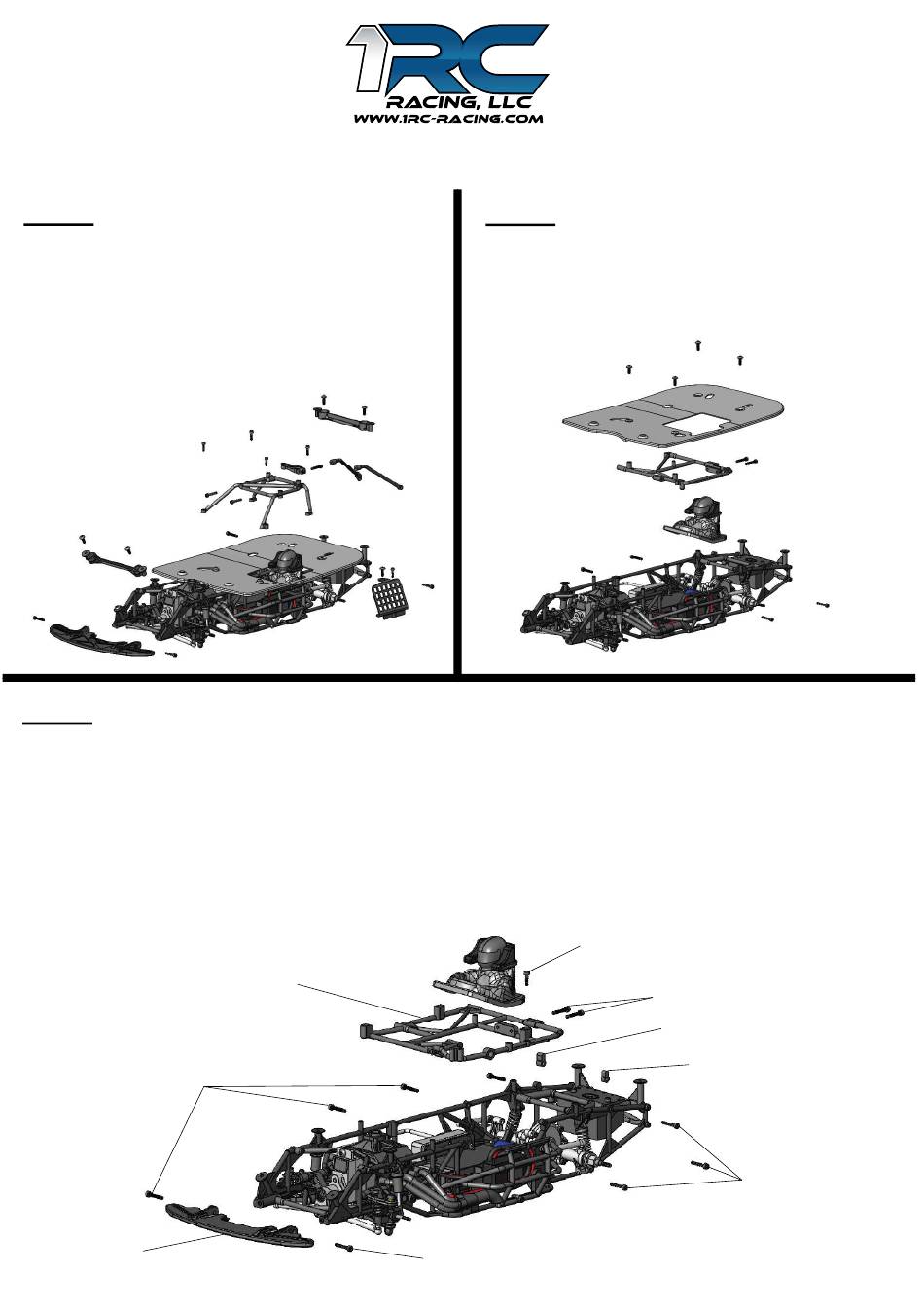

Step 1
Start by removing the Body, Tires and Wheels off the base
car you will be using and set those parts aside. Next
remove all the items shown below. Set all the hardware
aside, you will use some of that hardware later in the
assembly process. The parts you will not need any longer
are the Front Bumper, Front Body Mount, Rear Body Mount
and Center Body Mount, Window Net and the two Rear
Cage Downbars from the Center Cage assembly.
Step 3
Next, using the new Top Center Cage Mount that came with this converison kit, attached the Driver Figure to the Top Center
Cage Mount using the two M1.6 x 10mm screws you removed from Step 2. Now install that assembly into the Chassis and
secure using four of the M1.6 x 10mm screws you removed from Step 2 and one M1.6 x 6mm screw on the left side that will
secure the Center Cage Mount to the Left Side Chassis.
Next install the Front Bumper as shown and use the two M1.6 x 10mm screws you removed from the Front Bumper in Step 1.
Next, install the two Cage Spacers where the Rear Cage Downbars you removed from Step 1 were located into the rear part of
the chassis, note the thicker of the two Cage Spacers will go on the right side of the car. Secure those Spacers using two of
the M1.6 x 10mm screws your removed in Step 1.
T op Center Cage Mount
M1.6 x 10mm Screw
Front Bumper
Step 2
Next remove the Body Inner Panel, Driver Figure and Top
Center Cage Mount. Set all the hardware aside, you will
use some of that hardware later in the assembly process.
The parts you will not need any longer are the Body Inner
Panel and Top Center Cage Mount.
M1.6 x 6mm Screw
M1.6 x 10mm Screw
M1.6 x 10mm Screw
Cage Spacer - Thick
Cage Spacer - Thin
M1.6 x 10mm Screw
900-0047 - Rev A
