Summary of Contents for Arizona 660XT

Page 1 Loading Material Vacuum Areas Measuring the Head Height Printing a Nozzle Check Printing Rulers Operating Panel - General Usage Operating Panel - Administrative Usage Double Sided Printing Maintenance Troubleshooting Troubleshooting Oce User Manual Turning the Arizona On, Off & Idle...
Page 2: Printer Specifications

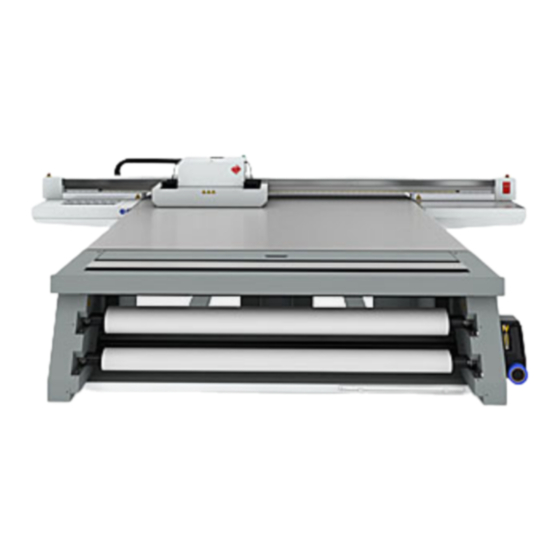

Overview Arizona 660XT Arizona 660XT The Arizona is a dual use machine. Meaning it can print in either Flatbed mode (printing directly to a sheet or flat media) or Roll-to-Roll mode (printing on roll media). Printer Specifications Printing Method Piezoelectric inkjet Number of nozzles 1,272 nozzles/channel;...
Page 3 Black, Cyan, Magenta and Yellow UV curable inks in two liter, quick-exchange ink bags; White curable ink packaged in one liter, quick-exchange ink bags. Ink is supplied by Inkology (Oce Arizona service | Ink-ology | Ormskirk | Oce Arizona Ink | Oce) - Inkology Extreme Inks.
Page 4 Flatbed with Bleed 2.51 m x 3.06 m, edge-to-edge printing (full bleed) Roll Media Width 0.9m to 2.2m wide Roll Media Thickness 3mm (3000microns) Max, Roll Media Print Width 2.19 m max Max. Roll Weight 50 kg, width independent...
Page 5: Health And Safety
Health & Safety UV Ink and Flush Introduction The safety concerns involved with the handling and use of the UV ink and Flush are detailed in the Material Safety Data Sheet (MSDS) documents. Review them before handling any UV ink or flush. CAUTION UV inks can be harmful if not properly handled.
Page 6 Latex gloves may appear to be robust but provide no protection at all. They only temporarily stop UV pigment penetration while allowing the invisible harmful chemicals to pass through, where they are trapped next to the skin, improving contact and associated risk. Océ recommends that only nitrile gloves, which have been checked for chemical resistance and approved by the Océ...
Page 7: Situational Awareness
The highlighted areas below should be avoided when the machine is operating as they offer a risk of CRUSH injuries. Full examples of crush areas are available on pages 27 to 30 of the Arizona Manual from Oce. Emergency Stop Buttons There are 3 emergency stop buttons located on the printer. ...
Page 9 Roll to Roll Operation...
Page 10 Step 3: Load your roll of media on to the pickup spool. The printable side of your media must be face down. Step 4: Using the Arizona Ruler position the roll into the middle of the machine to do this- match the size of the roll against the ruler.
Page 11 Roll to Roll Operation Unloading a Roll Unloading the Roll to Roll Option Step 1: On the dashboard click Roll to Roll Setup. Step 2: Move the media forward onto the pickup roll to leave a little bit of extra cutting room. Click Load [not unload], the feeder spool and the pickup spool will both rotate to the unlocked position.
Page 12 Roll to Roll Operation Feed Rate Calibration...
Page 13: Cleaning And Maintenance
Cleaning & Maintenance...
Page 14: Printing A Nozzle Check
Once the print heads are clean you can now print to check the print quality, we usually print nozzle checks on a roll. From the Arizona print station select to print on the roll, find the print nozzle check file, press print and start to begin.
Page 15 image-1651748621917.png Image not found or type unknown Once printed, you can check for any print issues from lines missing in the test print. Check the previous test print if possible to see any print heads that are commonly out, you may not be able to fix them.
Page 16: Cleaning The Print Heads
Cleaning & Maintenance Cleaning the Printheads Why? The reason for cleaning the printheads is to remove any dust or grit the heads may pick up, which results in a poor print finish and potentially damaged printheads, which are expensive! The cleaning process: IMPORTANT Step 1: For personal safety, we recommend that the operator always wear nitrile gloves, a protective apron, and safety glasses with side shields when handling inks.
Page 17 Step 6: Press the third button away from you on the right-hand side to activate the vacuum. Use the head vacuum found on the left-hand side [make sure it's connected correctly] and clean it with the white fibreless cloth before use. Step 7: Gently slide the vacuum along the print heads from left to right, making sure you get the slots of the vacuum piece into the printhead grooves.
Page 19 Cleaning & Maintenance Changing ink When to do: An ink bag can be replaced at any time. Ink bags should be replaced if: • The printer displays an "Error: ink fill timed out" message. This does not necessarily mean that the ink bag is empty, but if you see it, check the level of ink remaining and change the bag if needed.
Page 20 Procedure: 1. Open the clear plastic door on the Ink Station. 2. Identify the ink bag to be replaced. 3. Press the quick-release coupler button at the bottom corner of the ink bag. 4. Unhook the bag from the top of the ink station. 5.
Page 21 Flatbed Operation...
Page 22: Loading Material
Loading Material Loading Material Select the material from the rack behind the Arizona (Other materials are found in the storage through the door). Wearing gloves (to stop any finger marks from appearing). Pull the board over your head if possible and place it on to the print bed.
Page 23 We also use masking tape to help the board stay flat on the bed. If you only need to use a small section of the material, you can leave the film on partially. Simply score the film off of the section you'd like to print on. This helps keep your remaining section of material clean of any dust and marks.
Page 24 For the Océ Arizona 600 Series GT vacuum control valve handles are used to manage these zones. The printer has five control valves that determine the zones that are active when the table vacuum pump is on.
Page 26 Flatbed Operation Measuring the Head Height To measure the thickness of the material choose the guage from the shadow board. Take it to the material, and press ON. Twist the cog on top to loosen the gauge slider. Fit the material into the gauge and the screen will display the thickness in millimetres. Once you select to print a job, the pop-up screen will appear with the option to input your head height.
Page 27: Printing A Nozzle Check
Flatbed Operation Printing a Nozzle Check To begin a nozzle check on the flat bed, pick your material and size (big enough for the test size 1100x110mm). Choose nozzle test on the top right of the screen. Choose the flatbed option on job parameters 'type' so it looks like below. Once your material is secure on the bed, hit print and start.
Page 28 Flatbed Operation Printing Rulers...
Page 29 Flatbed Operation Operating Panel - General Usage Viewing Jobs When selecting a job in Active Jobs List (6) or Inactive jobs (8) it will display the artwork in the job Placement Preview (7)
Page 30: Pausing Jobs
Viewing Print Layers Position Jobs To position a job- use the offsets panel on the right-hand side under the preview. Starting from the bottom left of the artwork you can select the horizontal and vertical offset. This is based on setting a board on the bed at 0x0mm based on the ruler position printed on the bed. Tip: Print your job closest to the print head in case of print issues you can save the rest of the board Creating Batch Jobs...
Page 31: Cancelling Jobs
Select Hold to pause a job. (4) Cancelling Jobs Select Cancel (4) Deleting Jobs Select Delete (4)
Page 32 Flatbed Operation Operating Panel - Administrative Usage Setting Network Address Bulk Deleting Jobs Outputting Maintenance Logs Accessing Special Print Files Accessing Usage Counters...
Page 33: Double Sided Printing
Flatbed Operation Double Sided Printing...
Page 34: Maintenance
Flatbed Operation Maintenance Changing Ink Bags White Ink Agitation Head Cleaning Ink Filter Changing Print Head Filter Changing Changing the Lamps Daily Maintenance Procedure Weekly Maintenance Procedure...
Page 35: Troubleshooting
Flatbed Operation Troubleshooting...
Page 36 Troubleshooting...
Page 37 Oce User Manual Arizona 660XT User Manual.pdf...
Page 38 Turning the Arizona On, Off & Idle image-1703236561340.png Image not found or type unknown image-1703236583229.png Image not found or type unknown image-1703236607295.png Image not found or type unknown image-1703236629521.png Image not found or type unknown...
