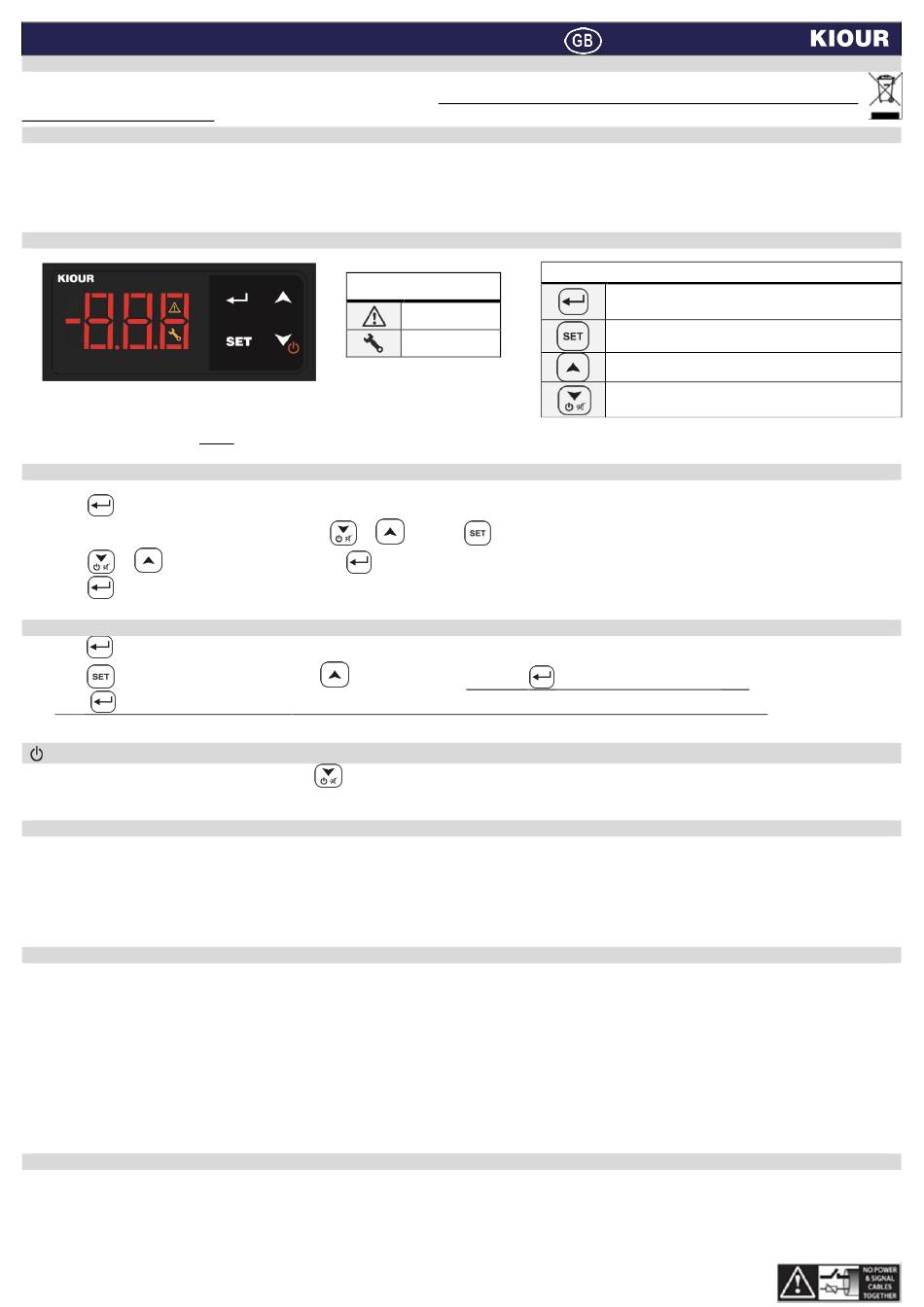

KIOUR MICF0 V4 Manual

THERMOMETER Model MICF0_V4 230VAC
ATTENTION
Read carefully these instructions before installing and using this device and keep them for future reference. Attention to installation and electrical wiring. Use this
device only as described in this document and never use itself as a security device. The device must be disposed of in accordance with local standards for the collection
of electrical and electronic equipment.
DESCRIPTION
MICF0 thermometer displays temperatures via a sensor. The temperature is controlled with an NTC / PTC type sensor.
scale -50÷+112°C (-58÷+230°F) or PTC scale -50÷+150°C (-58÷+302°F). Possibility of alarm display in case of high or low temperature as well as possibility of alarm
of sensor's malfunction. It has 3 indication digits of temperature display with an accuracy of 0.5 °C and 4 buttons. The device is mounted on a panel hole 29x71mm
restrained with plastic side brackets. Through the serial input it can be connected to a network either through Cloud IoT on the CORTEX platform, or through a local computer
in the CAMIN program for complete local recording and monitoring of the device.
INDICATIONS - CONNECTIONS - DIMENSIONS
For more indications regarding the alarms please see the alarm's table below.
PROGRAMMING A PARAMETER
ATTENTION: to gain full access to the parameter's menu, the 3
1. Press to enter the parameter menu.
2. Choose the parameter you want to adjust by pressing
3. Press or to change its value and then press
4. Press to exit the parameter menu.
INDUSTRIAL FACTORY SETTINGS
1. Press to display the parameter Cod.
2. Press to display its value and press and press
3. Press again to exit the parameter menu, 'YES' is displayed on the screen. All appropriate factory settings are now stored in the device.
SWITCHING ON / OFF THE DEVICE
To activate or deactivate the device, press for 3 seconds
SERIAL INPUT
MICF0 connects via serial input to the cloud and the online CORTEX platform or to a local computer with the CAMIN program or to the memory key or to any Modbus network.
 Cloud and CORTEX platform: connection to the cloud and the CORTEX platform for monitoring - recording and managing the thermometer from your mobile, tablet or
any computer. Also, send email and Viber SMS in case of alarm.
 CAMIN program: local connection and monitoring - recording and management of the thermostat through the CAMIN program installed on a local computer.
TECHNICAL SPECIFICATIONS
Model MICF0 power supply: 230VAC 50/60Hz / Maximum power consumption: 3W. Model MICF0W switching power supply 100-264VAC 50/60Hz 5W.
It is recommended using a power supply safety fuse: 0.5Α (not included)
Room temperature sensor NTC 10K 1% 25°C ΙΡ68 with temperature range -50÷+112°C (-58÷+230°F) (or PTC 1Κ 25
not included) / Accuracy: ±0.5°C
Serial input with 5pin connector
Connections: cable cross section from 0.25 to 1.0 mm² for the sensors
Connections with terminal blocks 18A using cable with
Operating temperature: -15÷+55°C / Storage temperature: -20÷+80°C
Dimensions 28x70x60mm / The device is mounted on a panel hole 29x71mm and it is restrained with plastic side brackets / Protection IP65 front
Firmware: V4.0.0
ELECTRICAL DIAGRAM - DIMENSIONS
ATTENTION: according to safety standards, the device must be properly positioned and protected from any contact with electrical parts. The device must be fastened in such a way that it cannot
be removed without the use of tools. Disconnect the main safety switch of the installation before proceeding to any maintenance. Disconnect the power supply of the device before proceeding to
any maintenance. Do not place the device near heat sources, equipment containing strong magnets, in areas affected by direct sunlight or rain. Prevent electrostatic discharges and sharp objects
from been inserted to the device. Separate signal cables from power supply cables to prevent electromagnetic disorders. Signal cables must never be in the same pipe with the power supply cables.
ATTENTION: Read carefully the technical specifications and make sure that the working conditions are appropriate. According to safety standards, the device must be fastened in such a way that
it cannot be removed without the use of tools.
Indications
alarm ΟΝ
malfunction ON
parameter Cod must be adjusted to 22 (see parameter table next page)
rd
or and press
to store the new value.
to enter the value 31. By pressing
.
cable cross section up to 2.5 mm² / It is recommended using a torque wrench with maximum torque 0.4Nm
The sensor can be adjusted via parameter to NTC
Keyboard
enter/exit the parameter's menu
store new parameter
display the parameter's value
up arrow
down arrow
ON/OFF device (check below)
to display its value.
to store the value to parameter
C with temperature range -50÷+150°C (-58÷+302°F)
o
Firmware V4.0.0
in case
and it is
Cod.
