SOLIS -AC Combiner-800V/1000A Quick Installation Manual

Quick Installation Guide
Version 1.0
AC
Combiner Box
Ginlong Technologies Co., Ltd.
1

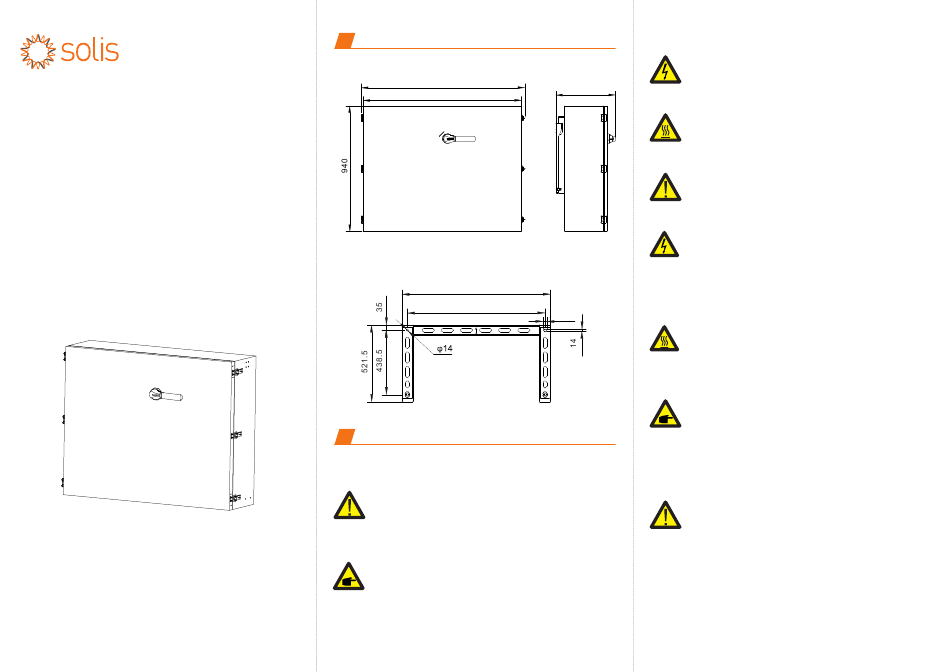

Bracket mounting
AC Combiner box size
1222
1185
ON
OFF
Back plate size
1011
935.9
2
Safety Symbols
Safety symbols used in this manual, which highlight potential
safety risks and important safety information, are listed below:
WARNING
Symbol indicates important safety instructions, which if
not correctly followed, could result in serious injury or
death.
NOTE
Symbol indicates important safety instructions, which if
not correctly followed, could result in damage to or the
destruction of the AC Combiner.
CAUTION, RISK OF ELECTRIC SHOCK
Symbol indicates important safety instructions, which if
not correctly followed, could result in electric shock.
447
CAUTION, HOT SURFACE
Symbol indicates safety instructions, which if not
correctly followed, could result in burns.
WARNING
Electrical installations must be done in accordance
with local and national electrical safety standards.
CAUTION
Do not remove cover until five (5) minutes after
disconnecting all sources of supply have passed,
and this can only be done by a service technician.
The warranty may be voided if any unauthorized
removal of cover occurs.
24
CAUTION
To avoid risk of burns, do not touch the surface when
the AC Combiner is operating. AC-Combiner must be
installed out of the reach of children.
NOTE:
If choosing aluminum alloy cable, you must use
copper aluminum transfer terminal in order to avoid
direct contact between copper bar and Aluminum
alloy cable. (Please select a copper aluminum transfer
terminal based on your cable specification).
WARNING
High Voltage.
AC and DC measurements should be made only by
qualified personnel.
SAVE THESE INSTRUCTIONS – This manual contains important
instructions for Model that shall be followed during installation
and maintenance of the AC Combiner.
