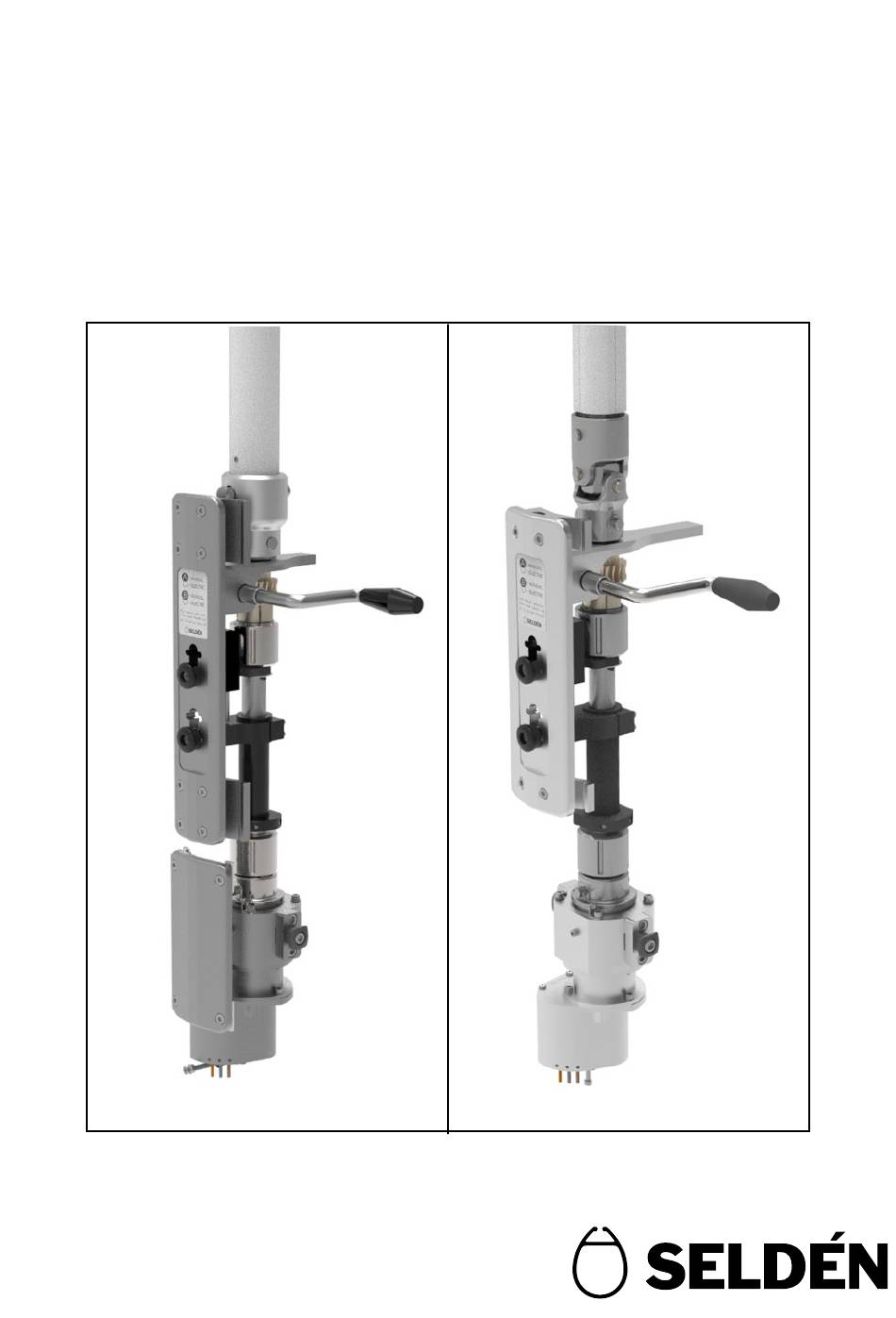

- Page 1 597-604-E 2024-06-03 Electric furling mast RD Mk II Synchronized with electric outhaul winch (SMF) or hydraulic outhaul (HPS) User guide This manual is valid for RD electric furlin gears starting 2024, item numbers 540-294-XX & 540-301-XX.
-
Page 2: Table Of Contents
Contents 1 Introduction ............................3 2 System overview ........................... 5 2.1 Mechanical parts ......................... 5 2.2 Power supply and SEL-Bus system .................... 6 2.3 Technical specification ......................... 7 3 Connection to Seldén Power Supply and SEL-Bus system ............8 3.1 Configuration of control buttons for Mast motor without Synchronized Main Furling .. 8 3.2 Configuration of control buttons for Synchronized Main Furling .......... 9 4 Preparations before sailing ....................... 10 4.1 Tensioning the luff extrusion ...................... 10 4.2 Rig tuning ............................. 10... -
Page 3: Introduction
1. Introduction Congratulations on the purchase of your new electric furlin mast. The part number and serial number of the mast motor is found on the aft side of the mast motor facing the sail groove. Always use the mast ID and part and serial number of mast motor as reference in any support case. Part No Serial No Mast ID Please read the entire manual before use of the product and keep it available for future reference. The latest version is available at www.seldenmast.com. Related installation manuals and user guides: 597-275-E Installation of Seldén Power Supply and SEL-Bus system 597-283-E Seldén Power Supply and SEL-Bus system order guide 595-540-E Hints and Advise... - Page 4 Safety notes Pay careful attention to, and follow the instructions with the following symbols: ATTENTION This symbol indicates a critical moment in the assembly or technical advice. WARNING This symbol indicates a potentially hazardous situation. If not avoided, this could result in serious personal injury or damage to property. Turn off the electric power during installation of the electrical equipment. Turn off the electric power when the system is not in use to prevent unintentional activation. Always monitor the entire furling process! Stop immediately in case of malfunction. Keep body parts away from the sail groove, winches and any other moving parts during operation. The electric motor can be disengaged and engaged by shifting the clutch plungers positions between ELECTRIC and MANUAL. When set to MANUAL, use a winch handle in the winch handle socket to manually operate the furling gear.
-
Page 5: System Overview
System overwiev 2.1 Mechanical parts The drive unit key components are; mast motor, clutch assembly and emergency gear. The mast motor is installed inside the mast and controlled by connection cables linked to the Seldén Power Supply and SEL-Bus system. Furling luff profile Emergency gear Clutch assembly Clutch plungers Motor brake Mast motor... -
Page 6: Power Supply And Sel-Bus System
2.2 Power supply and SEL-Bus system The mast motor is used together with a Seldén Power supply and SEL-Bus system. For synchronized outhaul (SMF), a Seldén electric winch is also required. The mast motor is connected to motor control unit (MCU) for furling masts. Via the SEL-Bus network, the fur- ling mast MCU can communicate with the winch MCU and OUT/IN control buttons. Seldén’s electric winch, all power supply and SEL-Bus system parts are sold separately. Parts and packages are described in Seldén Power Supply and SEL-Bus system: Order guide 597-283-E. System illustration The illustration shows an example of a Synchronized Main Furling network installation. The complete Power Supply and SEL-Bus system of each customer will vary and can include additional units and functions. 1. Battery (not included) 6. Motor Control Unit (MCU), Electric winch 2. Main switch/fuse 7. Push buttons for Electric winch Ill. Dan Ljungsvik/Seldén 2019 3. -
Page 7: Technical Specification
2.3 Technical specification Mast motor Peak Torque (Nm) Max power (full torque) (W) 1000 Full load current* (A) Nominal current* (A) *Consumption incl. MCU and PSU. -
Page 8: Connection To Seldén Power Supply And Sel-Bus System
Connection to Seldén Power Supply and SEL-Bus system Install the three control cables from the mast motor to the motor control unit (MCU) “Furling mast”. Carefully note the position of cable colour and connector: L3= Grey L2= Orange L1= Brown The cables need to be connected to the MCU in the correct position/sequence. Incorrect positioning of the cables can damage the mast motor and the break mechanism. For correct positioning of the Motor Control Unit, installation of the complete Power supply and SEL-Bus system, see separate manual 597-275-E. 3.1 Configuration of control buttons for Mast motor with synchronized outhaul cylinder (HPS). For synchronized main furling, configuration of the control buttons for both the winch and furling mast must be done in the following order. For complete information about how to configure Motor control unit, MCU, to the control buttons, read installation manual 597-275-E. A. Configure Furling mast MCU to the Press the configuration MAIN OUT/IN buttons button, on... -
Page 9: Configuration Of Control Buttons For Synchronized Main Furling
3.2 Configuration of control buttons for mast motor with synchronized winch (SMF). For synchronized main furling, configuration of the control buttons for both the winch and furling mast must be done in the following order. For complete information about how to configure Motor control unit, MCU, to the control buttons, read installation manual 597-275-E. A. Configure Winch MCU to winch buttons Press the configuration button on Winch MCU. Push and hold winch button 1 or 2 until the winch generates the start-up signal. Press the configuration B. Configure Winch MCU to the MAIN OUT button on Winch MCU. button (for synchronized outhaul) Push and hold MAIN OUT until the winch generates... -
Page 10: Preparations Before Sailing
Preparations before sailing 4.1 Tensioning the luf f extrusion It is important that the luff extrusion inside the mast is correctly tensioned. An untensioned or over-tensioned luff extrusion can lead to increased furling load or unnecessary wear of the system. Lift/disconnect the locking tube from the tack assembly. Grip the luff extrusion with your hand at the upper access hole. Disconnect the motor and use the emergency winch function to tension the luff profile until you can not stop the extrusion from rotating with your hand. Note! Do not use the motor for tensioning as you risk injury if your hand gets caught. Always release backstay tension before adjusting luff extrusion. Tensioning the luff extrusion with the backstay tensioned can damage the luff extrusion joints when the backstay tension is released. 4.2 Rig tuning Furling in and out will work best on a mast tuned with limited prebend. Read 595-540-E Hints and Advise for tuning instructions. -
Page 11: Outhaul Car Stop
4.3 Outhaul car stop The position of the outhaul car stop on the boom will affect tension in the sail foot and leech. E.g. if the outhaul is posi- tioned too far aft, the force from the outhaul clew will keep the foot tighter than the leech which can cause the sail to jam in the top of the mast. The ideal position can vary between boats due to rig, sail and batten designs. It is recommended to place the outhaul stop 500 mm from the aft mast wall as default, and then adjust it forward or aft if necessary. 4.4 Outhaul routing Examine outhaul car and outhaul turning points for excessive friction. Replace old and worn blocks if needed. Outhaul routing with as low friction as possible will improve the unfurling process. Synchronized outhaul winch The force limit in the synchronized outhaul winch is based on the line force at winch entry. High fric- tion in the outhaul routing will result in the actual force in the outhaul clew being significantly lower than at the winch, which can negatively affect the synchronization. -
Page 12: Sailing
Sailing Both clutch plungers should be in their lower position. 5.1 Preparations for furling and unfurling There are many factors to consider for a successful furling operation. Get familiar with the furling system in light conditions and pay attention to the following details before furling out and in. How important these adjustments are for the furling result can vary between boats, sail designs and other factors. SAIL UPWIND Sail upwind. RELEASE BACKSTAY Release backstay tension (if very tight) to straighten the mast. Adjust the boom angle with the vang to keep the leech tight and battens parallel to mast. Use kicker/topping lift. ADJUST BOOM ANGLE Ease the main sheet. EASE MAIN SHEET Always observe the entire furling process! Stop immediately in case of any issues. Keep away from the sail slot, winches and any other moving parts during furling. Avoid reefing to a position where the battens are riding on the sail slot. Ill. Dan Ljungsvik/Seldén 2018... -
Page 13: Unfurling With Synchronized Electric Winch (Smf)
5.2 Unfurling with synchronized electric winch (SMF) For operation with separate electric winch, see 5.3 Apply and secure the outhaul to the synchronized electric winch. MAIN MAIN MAIN MAIN Press MAIN OUT. The outhaul winch will make a short warning signal MAIN MAIN MAIN MAIN before starting to run. Remote control of a boat winch is hazardous. Always observe the unfurling process and ensure nothing can interfere with the winch, outhaul line or sail groove in the mast. MAIN MAIN MAIN Whilst holding down MAIN OUT, press the second button to increase the speed, if wanted. MAIN MAIN MAIN Full sail Hold button(s) pressed. The synchronized system The motor will make a short rotation will recognize a fully unfurled sail and stop automa-... -
Page 14: Unfurling With Separate Electric Winch
5.3 Unfurling with non synchronized electric winch. Apply and secure the outhaul to the electric winch. Check that the outhaul line is not MAIN MAIN MAIN MAIN excessively tensioned as this may prevent the mast motor brake to unlock. MAIN MAIN MAIN MAIN Press MAIN OUT. Wait 3 seconds Remote control of a boat winch is hazardous. Always observe the unfurling process and ensure nothing can interfere with the winch, outhaul line or sail groove in the mast. MAIN MAIN MAIN... -
Page 15: Furling
5.4 Furling MAIN MAIN MAIN MAIN MAIN MAIN MAIN MAIN Free the outhaul and keep it tensioned (about one turn on the winch). Press MAIN IN and simulta- neously slacken the outhaul line while the sail is reefed. Whilst holding down MAIN IN, press MAIN OUT MAIN MAIN MAIN to increase the speed. MAIN MAIN MAIN MAIN Release the button(s) and stop reefing at desired sail area or when sail is fully furled in. The motor will NOT automatically stop during furl in. Run the last turns with low speed and keep attention to the position of the outhaul block to prevent it from being pushed into the sail groove and damage the mast. -
Page 16: Manual Drive
5.5 Manual operation In case of electric or mast motor failure, the sail can be manually reefed by engaging an emergency gear and disconnecting the electric drive unit. Disconnect mast motor Turn power off! Insert emergency handle on starboard side of mast. Turn the handle any direction as you pull the upper lever (A) aft and up. You might have to turn up to 10 turns to get the clutch find it´s position and allow connection of the manual drive. The luff profile is now connected to the handle socket via a worm gear, and the electric drive can be disconnected. To disconnect the electric drive, pull the lower lever (B) aft and up as you turn the winch handle slightly clockwise to unload the connection between electric drive and luff profile. You can now use the handle to furl the sail in and out. The gear has a high ratio so it takes a lot of turns on the handle. A power tool with 1/2” socket is therefore a good option. Remove winch handle from socket when done. -
Page 17: Unfurling With Manual Winch And Electric Mast Motor
Reconnect electric motor Turn the handle any direction as you pull the lower lever (B) aft and up. Up to 10 turns on the handle might be required to find the correct position for the clutch to engage. Pull the upper lever (A) aft and down as you turn the winch handle slightly clockwise to unload the connection between manual gear and luff profile. When both levers (A&B) are in their lower positions the sail can be controlled by the electric drive. 5.6 Unfurling with manual winch and electric mast motor. If the synchronized winch is not to be used, the outhaul can be pulled manually without disconnecting the furling mast motor. 1. Press and hold “MAIN OUT”. The mast motor will start to rotate but pauses automatically if the outhaul is not pulled, to avoid the sail being unfurled inside the mast. 2. Keep “MAIN OUT” button pressed. Pull the outhaul manually. The furling motor will start to rotate when it detects that the outhaul is being pulled. Proceed until desired sail area is reached. When OUT button is released, the mast motor will activate the brake. -
Page 18: Trouble Shooting
Trouble shooting Problem Problem cause Action Mast motor makes a stuttering Incorrectly installed connection Change position of connec- sound and unfurling does not cables to MCU. tion cables in MCU according work to section 3.6 Mast motor makes a constant Cables from SEL-Bus converter Change position of push signal tone when Power to push button is installed as button cables to “Normally Supply and SEL-Bus system is “Normally closed” instead of open”, see separate instruc- turned on. “Normally open”. tion sheet for push button. Mast motor starts to run when Power Supply and SEL-Bus system is turned on, and stops when Furling MAIN OUT/IN... -
Page 19: Service And Maintenance
Service and maintenance Always keep the manual furling system in good condition, following the service and maintenance procedures described in each respective manual furling mast instruction. 7.1 Annual maintenance Lubricate motor brake There are two different layout options, one with a separate motor cover (to the left) and one without (to the right). Remove the screw to the lubrication hole, A. This can be accessed via the sail opening or by removing the motor cover. To enable removal of the motor cover, the mast should be straight and the rig tension released. Apply WD-40 in the hole and simultaneously rotate the mast motor minimum one turn. Remount screw. 7.2 Extended maintenance Professional service should be made on the mast motor every 5th year. Contact an authorized Seldén dealer for service management. -
Page 20: Disposal
Disposal The crossed out wheelie bin symbol on the product or product package means that used electrical and electronic equipment (WEEE) should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge. Alternatively, in some countries, you may be able to return your pro- ducts to your local retailer upon purchase of an equivalent new product. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Warranty Seldén Mast AB guarantees SMF retrofit kit for 2 years. The guarantee covers faults arising from defective design, materials or workmanship. The guarantee is only valid if the SMF retrofit kit is assembled, operated and maintained in accordance with this manual and is not subjected to loads in excess of those indicated in the brochure and instructions. Complete shipment and warranty conditions are to be found on Seldén’s website www.seldenmast.com. See Resources/Partners information/General information/General conditions of sale (595-546-E). If the system is repaired or modified by anyone other than Seldén Mast AB or one of our authorized dealers, the guarantee ceases to be valid. Seldén Mast AB reserves the right to alter the content and design without prior warning. www.seldenmast.com...
