Camos CA-100D Instruction Manual

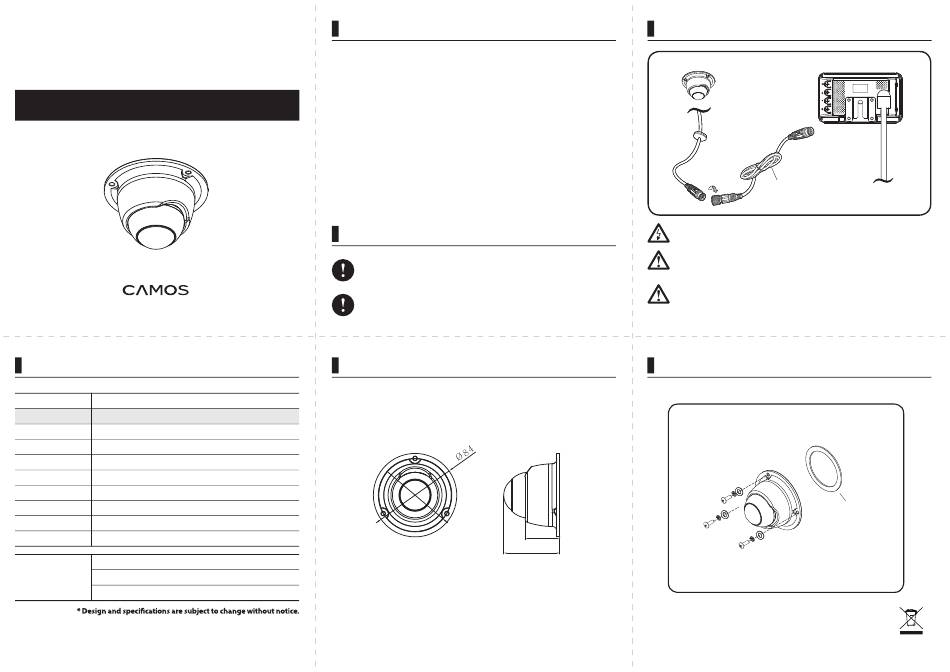

INSTRUCTION MANUAL
Thank you for purchasing this product.
For correct usages and application,
please read this instruction manual thoroughly

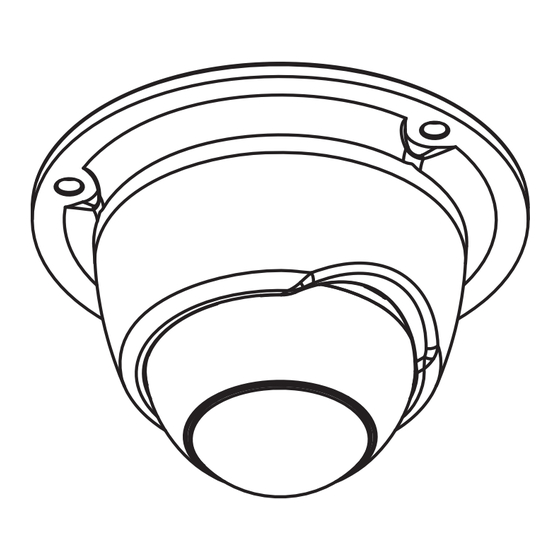

CA-100D
SPECIFICATIONS
Pick-up Device 1/3" (520,000Pixel) 960H color CMOS
View of angle 120(H) / 85(V) / 140(D)
Total Pixels
976(H) X 496(V)
Min. Illumination 1.0Lux ( F = 2.0 ) // IR LED ON at 0 lux
Resolution 700 TV Lines
Input Voltage DC 12V~24V
Operating Temp. -20˚C ~ 70˚C
Storage Temp. -30˚C ~ 80˚C
Dimension
84(Ø) x 56.5(H) mm (with bracket)
Weight 159g (with bracket)
Camera Set ........................................................................................ 1SET
Box Contents
Screws set ............................................................................................ 1SET
Instruction Manual ............................................................................ 1EA
FEATURE
• 1/3" (520,000Pixel) 960H color CMOS
• DC 12V~24V
• 9 pcs of IR LEDs for night
• Waterproof (IP68)
• Audio Built-in
• Heating function Built-in
• Aluminum die-casting housing
• Photo sensor
• At least in the area of the vehicle can be installed anywhere
CAUTION
Please connect CA-100D camera with Camos monitor
for protecting unexpected issues.
Please use camera in condition of 12V to 24V (Max. 30V)
DIMENSIONS
CONNECTION
Before making the connection, disconnect the ground terminal of
the car battery to avoid short circuiting.
The plug should be fully inserted into the connector, should be
check pin arrangement before inserting. A loose connection may
be caused malfunction or problem of the unit.
When use extension cable, connect it as follows arrow direction.
INSTALLATION
* Based on the condition and place, the installation procedures could be varied.
35
56,5
CAMERA
MONITOR
(Optional)
Extension Cable
(for Camera)
adhesive tape
ver. 1.0
PRINTED IN KOREA
