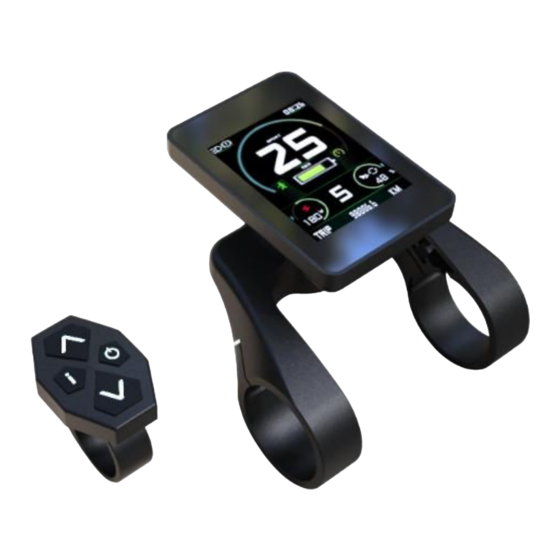

- Page 1 T24 Display User guide...
- Page 2 Catalog Read me ..............................2 Technical Data(T24 Serials) ........................3 Operations ............................... 4 Menu Settings ............................7 Error messages ............................15 Error messages ............................16 1 Read me ★ Thank You for Purchasing our Smart ebike Driving System Equipped Bicycle, Read this manual before you take the first ride on your new bicycle and keep it for reference .
- Page 3 2 Technical Data(T24 Serials) ◆ Power: 15 - 60VDC /60 ma ◆ Screen: 2.4” Colorful TFT ◆ Button: Transparent silicon rubber with LED Backlight ◆ Fix Position: Middle ◆ Communication: UART/TS232/CAN ◆ Material: ◆ Ingress Protection: IP54 (dust and splash water protected) ◆...
- Page 4 Switching riding mode on or off automatically if select Auto-Manual, Auto options. --Three riding mode is ,ECO ,CITY ,SPORT, you can select desired mode ，Press Info button(T24) Switching Assistance level --ECO : Effective assistance at maximum efficiency --Short press botton to increase assistance...
- Page 5 --Realtime Voltage and current and power TRIP , ODO ,MAX SPEED , AVG SPEED --These information was shown at bottom of screen ,TRIP and MAX SPEED , AVG SPEED can be cleared by long pressing button button with 3 seconds; Bike information --Short press button can switch the bike...
- Page 6 --Select Skin -- Brake ,speed and shift sensor status Three different color skins were preset in display, you can chose favorite one for yourself. --Temperature sensor --Select Font Color three different font solutions were preset in displat, you can chose favorite one for yourself. Notice: not all of system was equipped with Temperature sensor ,and temp value is only for reference...
- Page 7 4 Menu Settings This is a full menu sets for T24 display , not all of the menu item will be visible for end user because some settings is only for some advance applications ,sometimes, maybe you can’t modify set because you didn’t get permissions from supplier , all menu items show with letters , it can help you to...
- Page 8 - Setting menu overview...
- Page 9 Menu Items Instructions Range of values Unit Speed mileage display unit Metric, British Rim Size Wheel diameter 6inch-30Inch Manual - Manually control the headlight switch Light Headlight control Auto - Automatic control (automatic control of light sensor) On - Always on when the vehicle is powered on 3-15 minutes, when the vehicle is stationary AutoPowerOff Automatic shutdown time...
- Page 10 To start the advanced settings, press and hold the bottom simultaneously after entering the user setting menu. Enter the default advanced password (1234) Advanced menu setting overview Application Menu Items Instructions Value range Unit Speed mileage display unit Metric, British Rim Size Wheel diameter...
- Page 11 Save Save Settings Settings are not effective until the meter is turned back on after saving WithoutSave Discard this modification Menu item Instructions Range of values Throttle Turn the knob on or off Disable , Enbale PAS Startup Count Number of PAS startup magnets RimSpeedSensor Wheel speed sensor magnetic 0-30, with 0- indicating no equipment...
- Page 12 Motor To enter the FOC special parameter setting, press and hold the keys simultaneously when the controller is in FOC mode. For more information, please refer to section ① FOC 《 vector control special setting 》 Menu Description Ranges Gear Motor gear GearLess, Gear...
- Page 13 maximum wheel speed bicycle speed, maximum speed limit maximum PAS speed PedalSpeed2 -PAS speed corresponds to bicycle speed, maximum speed limit Throttle Menu Description Ranges Activate Turn the throttle on or off Disable,Enable StartupVol (mv) The minimum voltage to start 800mv-2000mv the throttle ControlMode...
- Page 14 starting voltage =current power supply - zero point voltage） KeepAngle(Deg) The output keeps the pedal 0-180° angle constant, and the output stability can be adjusted MinOutCurrent(a) The minimum current bias 0-10a The torque signal is proportional to the motor phase current Filter Torque sensor smooth 0-10...
- Page 15 Restore Factory Settings All data and settings on the display will be deleted and reset to the factory defaults. Process: Main menu setting - Factory Default FOC vector control special setting The display shows the controller's working mode. If the controller is in FOC mode, to enter the FOC parameter setting, long press the bottom in the motor setting menu.
- Page 16 ② Definition of the battery electric meter The system has a standard power definition table for 36V and 48V batteries. When using a non-standard battery (such as a 54V battery) or if the battery's discharge characteristics differ from the standard, the user can measure the battery's OCV (open circuit voltage) curve to set the voltage value Menu Description...
- Page 17 supplier the instrument and the 2. Purchase controller controller to check whether with the same encrypted the controller is damaged index number Controller memory hardware throttle failure failure or control memory save parameter verification Solution: Replace failure throttle Workaround: Replace controller The controller MOS tube is Motor Blocked...
