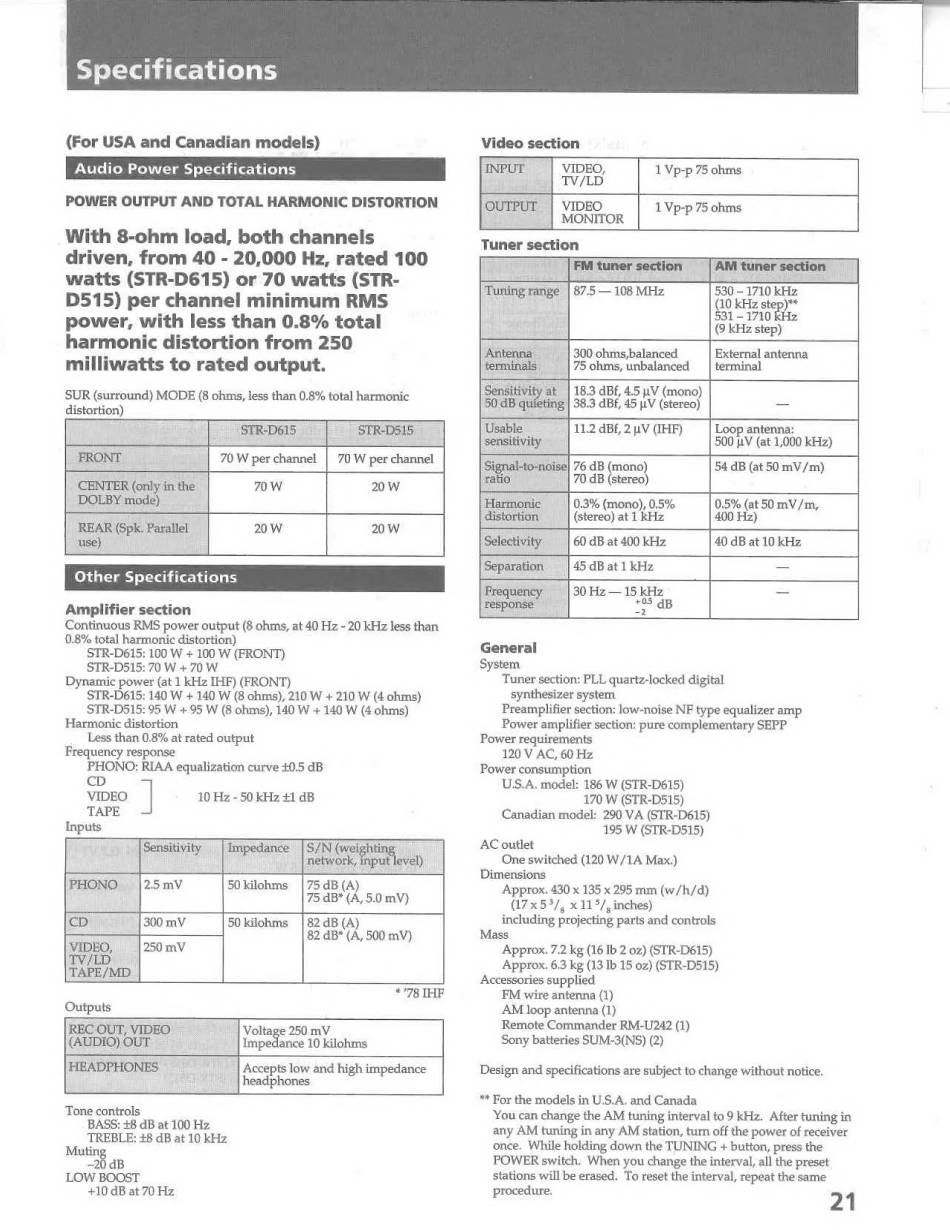

Specifications —
(For USA and Canadian models)
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 8-ohm load, both channels
driven, from 40 - 20,000 Hz, rated 100
watts (STR-D615) or 70 watts (STR-
D515) per channel minimum RMS
power, with less than 0.8% total
harmonic distortion from 250
milliwatts to rated output.
SUR (surround) MODE (8 ohms, less than 0.8% total harmonic
distortion)
FRONT 70 W per channel
CENTER (only inthe | 70W 20 W
DOLBY mode) |
REAR (Spk. Parallel
Other Specifications
Amplifier section
Continuous RMS power output (8 ohms, at 40 Hz - 20 kHz less than
0.8% total harmonic distortion)
STR-D615: 100 W + 100 W (FRONT)
STR-D515: 70 W +70 W
Dynamic power (at 1 kHz IHF) (FRONT)
STR-D615: 140 W + 140 W (8 ohms), 210 W + 210 W (4 ohms)
STR-D515: 95 W + 95 W (8 ohms), 140 W + 140 W (4 ohms)
Harmonic distortion
Less than 0.8% at rated output
Frequency response
PHONO: RIAA equalization curve +0.5 dB
CD
VIDEO |
TAPE
Inputs
10 Hz - 50 kHz +1 dB
S/N (weighting
Reever pat eel
2.5 mV 50 kilohms | 75 dB(A)
75 dB* (A, 5.0 mV)
300 mV 50 kilohms | 82 dB (A)
TV/LD
| Voltage 250 mV
Impedance 10 kilohms
(AUDIO) OUT
Accepts low and high impedance
headphones
Tone controls
BASS: +8 dB at 100 Hz
TREBLE: +6 dB at 10 kHz
LOW BOOST
+10 dB at 70 Hz
Video section
INPUT
| VIDEO,
a Vp-p 75 ohms
|
TV/LD
_ | MONITOR |
Tuner section
ER La
Tuning range | 87.5 — 108 MHz
530 — 1710 kHz
(10 kHz step)**
531 - 1710 kHz
(9 kHz step)
300 ohms,balanced
unals | 75 ohms, unbalanced
Sensitivity at | 18.3 dBf, 4.5 uV (mono)
'50 dB quieting | 38.3 dBf, 45 uV (stereo)
Usable 11.2 dBf, 2 uV (IHF) Loop antenna: |
sensi 500 uV (at 1,000 kHz)
76 dB {mon} 54 dB (at 50 mV/m)
70 dB (stereo)
0.3% (mono), 0.5% 0.5% (at 50 mV/m,
(stereo) at 1 kHz 400 Hz)
[saan [ =
+05 dB
-7 i
General
System
Tuner section: PLL quartz-locked digital
synthesizer system
Preamplifier section: low-noise NF type equalizer amp
Power amplifier section: pure complementary SEPP
Power requirements
120 V AC, 60 Hz
Power consumption
U.S.A. model: 186 W (STR-D615)
170 W (STR-D515)
Canadian model: 290 VA (STR-D615)
195 W (STR-D515)
AC outlet
One switched (120 W/1A Max.)
Dimensions
Approx. 430 x 135 x 295 mm (w/h/d)
(17x 5?/, x 113/, inches)
including projecting parts and controls
Mass
Approx. 7.2 kg (16 Ib 2 oz) (STR-D615)
Approx. 6.3 kg (13 lb 15 oz) (STR-D515)
Accessories supplied
FM wire antenna (1)
AM loop antenna (1)
Remote Commander RM-U242 (1)
Sony batteries SUM-3(NS) (2)
Design and specifications are subject to change without notice.
* For the models in U.S.A, and Canada
You can change the AM tuning interval to 9 kHz. After tuning in
any AM tuning in any AM station, turn off the power of receiver
once. While holding down the TUNING + button, press the
POWER switch. When you change the interval, all the preset
stations will be erased. To reset the interval, repeat the same
procedure.
