String SWING SW3RL-BW-K Quick Start Manual

.s't'lina
SW I N G 7@
USA
1-888-455-6628
www.stringswing.com
SW3RL-BW-K
3 Guitar Wall Rack
1

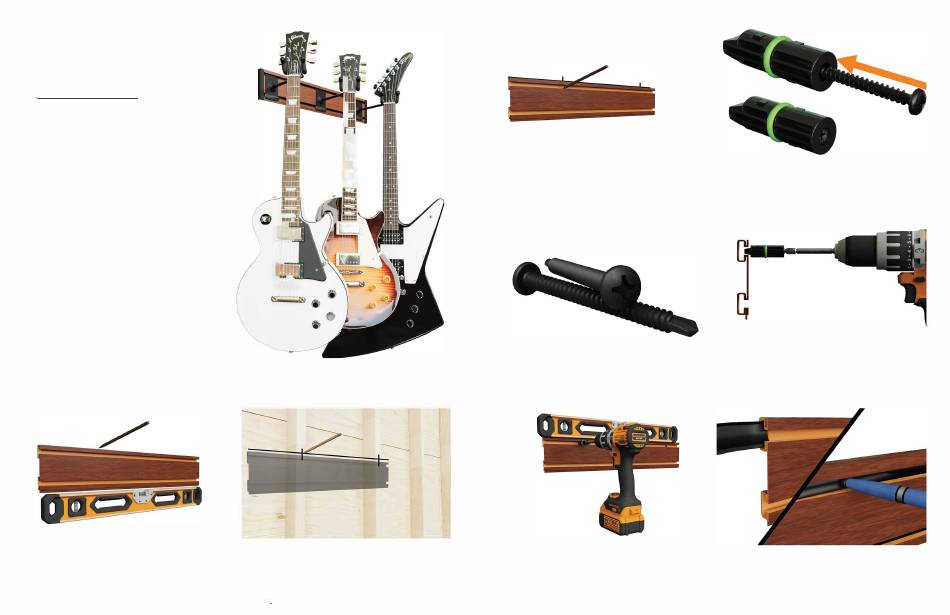

Hold rail against wall, check level,
Draw a line along the top of the rail
,,, ..
I
I
I
I
1iii1
r--1
liiil
i:::1
IDII
1011
i=:J
11■11
l■U
ic=-
...
•
l■•■
'H
[
-�
E •..
a::�-
2
Using your preferred method,
locate and mark every stud along
the line. Make sure to mount to
two studs.
3
Transfer stud marks to top and
bottom channels.
5
The mounting screws included are
self-drilling. The screw itself will
drill the hole it requires
7 7
Check level and drive screws at each
stud location in both the top and the
bottom channels
4
Insert mounting screw into screw
guide
6
Place screw guide into channel at stud
location. Firmly press both guide and
drill towards rail and drive screw
through channel into stud.
8
Insert black strip from the end of
the rail if accessible, otherwise press
into slot with pen or marker
