Pollard 403 Assembly Instructions

www.pollardbros.com
Includes:
•(2)Welded Side Uprights [84 1/4" x 42"] •Top Shelf [13 1/4" x 36"] •Middle Shelf [17 1/4" x 36"]
•Bottom Shelf [25 1/2" x 36"] •Base Plates [6" x 36" w/ 1 1/2" Lip] •(5) Cross Braces [1/8" x 1" x 50"]
32
x
3/8" x 3/4" Hex Head
Machine Screw
2
x
5/16" x 3/4" Flat Head
Machine Screw

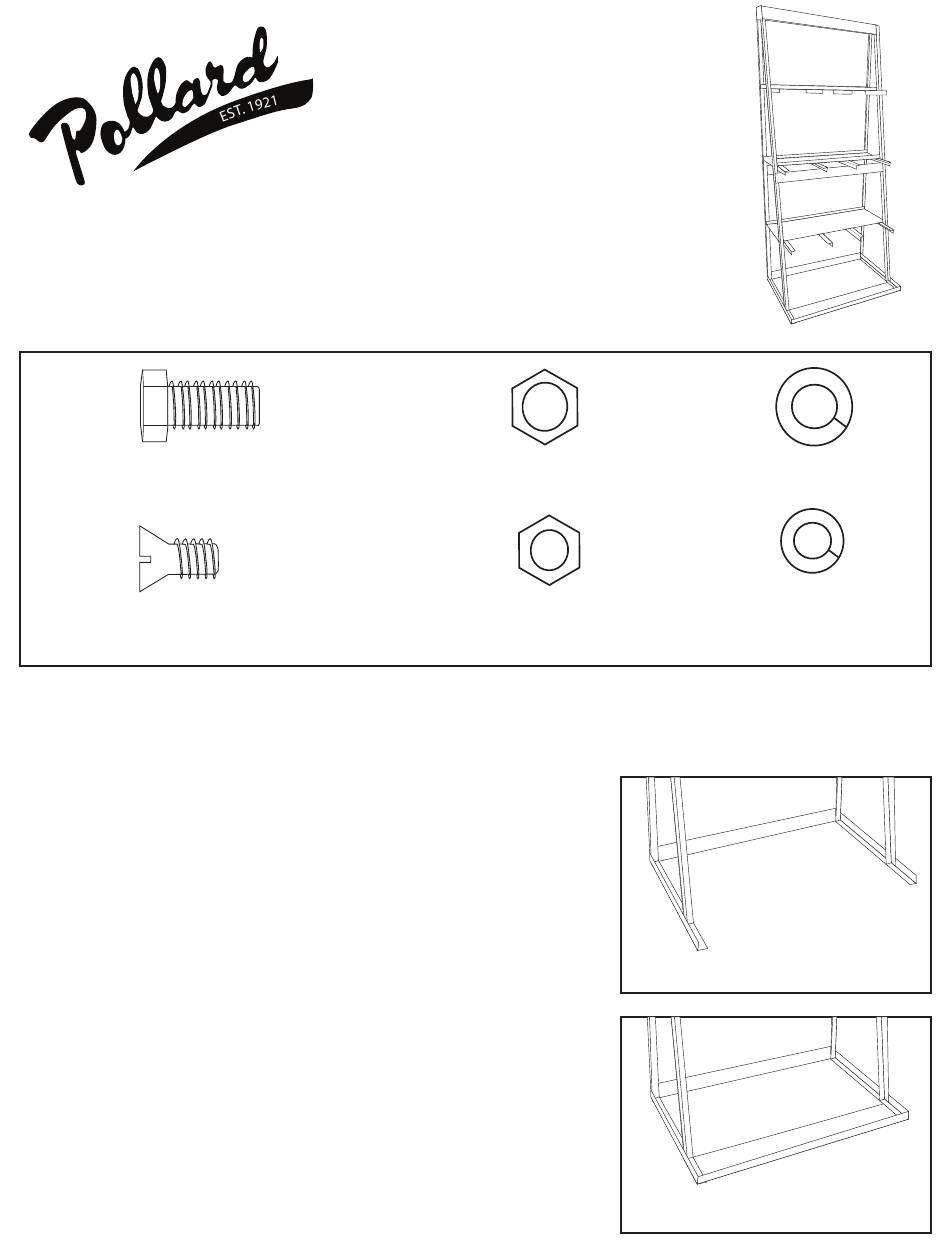

Steps:
Pollard suggests that two people be utilized for assembly.
1
Attach (1) Cross Brace to rear of both Side
Uprights using (4) 3/8" x 3/4" Hex Head Machine
Screws, 3/8" Lock Washers, and 3/8" Hex Nuts.
HAND TIGHTEN ONLY.
2
Attach the Base Plate to the Welded Side
Uprights using (2) 5/16" x 3/4" Flat Head Machine
Screws, 5/16" Lock Washers, and 5/16" Hex Nuts.
HAND TIGHTEN ONLY.
403 - Vertical Bar Rack
Assembly Instructions
32
x
3/8" Hex Nut
2
x
5/16" Hex Nut
32
x
3/8" Lock Washer
2
x
5/16" Lock Washer
