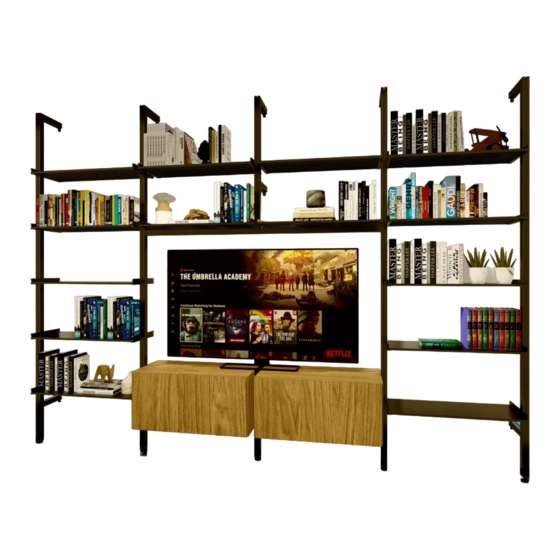

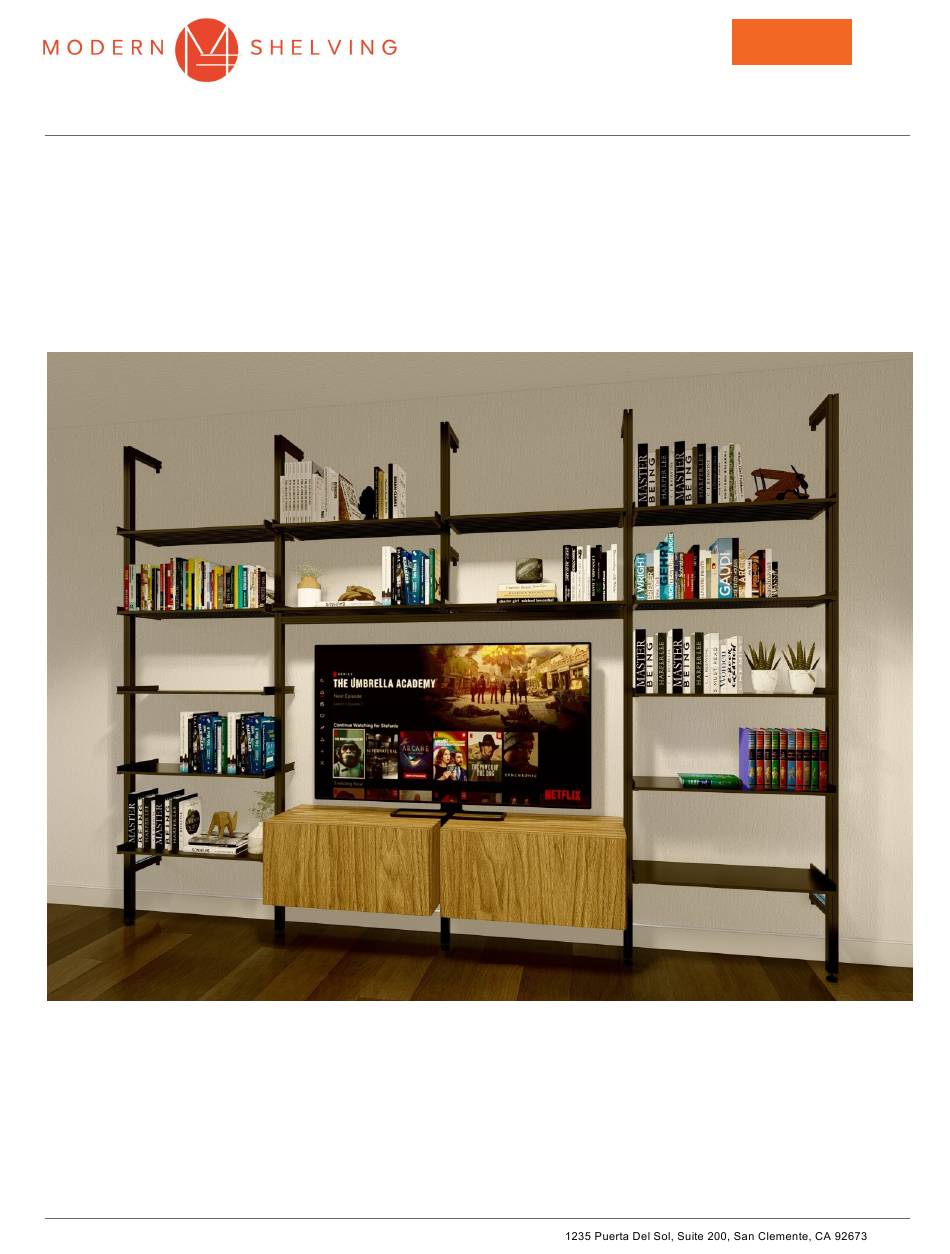

- Page 1 RAD Series Media Shelving RAD Series overview...
-
Page 2: Parts List
modular shelving system PAL Series PAL with SES Brackets parts list 84" Mitered ISS Pole 9.5" Mitered Tie Pole 8" Tie Pole Pole to Pole L-Bracket Pole to Wall L-Bracket Bottom Leveler 1 1/4" Long #6 Screw x 4 (wall anchors not included) 12"... -
Page 3: Installation
RAD Series RAD POLES installation Pole Installation: Attach the tie pole kits to the RAD pole using the L- Brackets and tightening the screws. The mitered kit goes on top. The location on the second tie pole kit is based on the design. -
Page 4: Tools For Installation
modular shelving system SES Brackets installation PLEASE READ ALL INSTRUCTIONS IN THEIR ENTIRETY BEFORE PROCEEDING WITH ASSEMBLY Upon receiving your order, Please review the parts received against your Final Invoice. The number of parts received should exactly match the parts as they are listed on your invoice. Please refer to your design drawing for assistance. - Page 5 modular shelving system SES Brackets installation all Shelf End Supports are notched out to fit around the pole allowing for some degree of self- leveling. Measure where you would like to place the shelf and make with a pencil. Do this on both poles.
- Page 6 modular shelving system SES Brackets installation Shelf End Supports should be attached to poles before attaching poles to the wall or ceiling. Attaching Self end Supports before final installation near a wall will make the process faster and help the install go easier.
- Page 7 modular shelving system Cabinet Cabinet installation For 31"W x 15"H x 15"D Wood Cabinet Only: 4 pieces 15"H Wood Laminated Planks for sides and front 4 pieces Screw 1\2" Long 3 pieces 31"W Wood Laminated Planks for top, bottom and backing of the cabinet...
-
Page 8: Cross Support
modular shelving system Extras Cross Support installation 2 pieces Pole to Pole 4 pieces 1/4" #20 1 Pole to Pole 2 Piece 1/4" # 20 L-Bracket Screw 1/2" Flat bracket with flat nut Long 1 piece Cross Support Bar...
