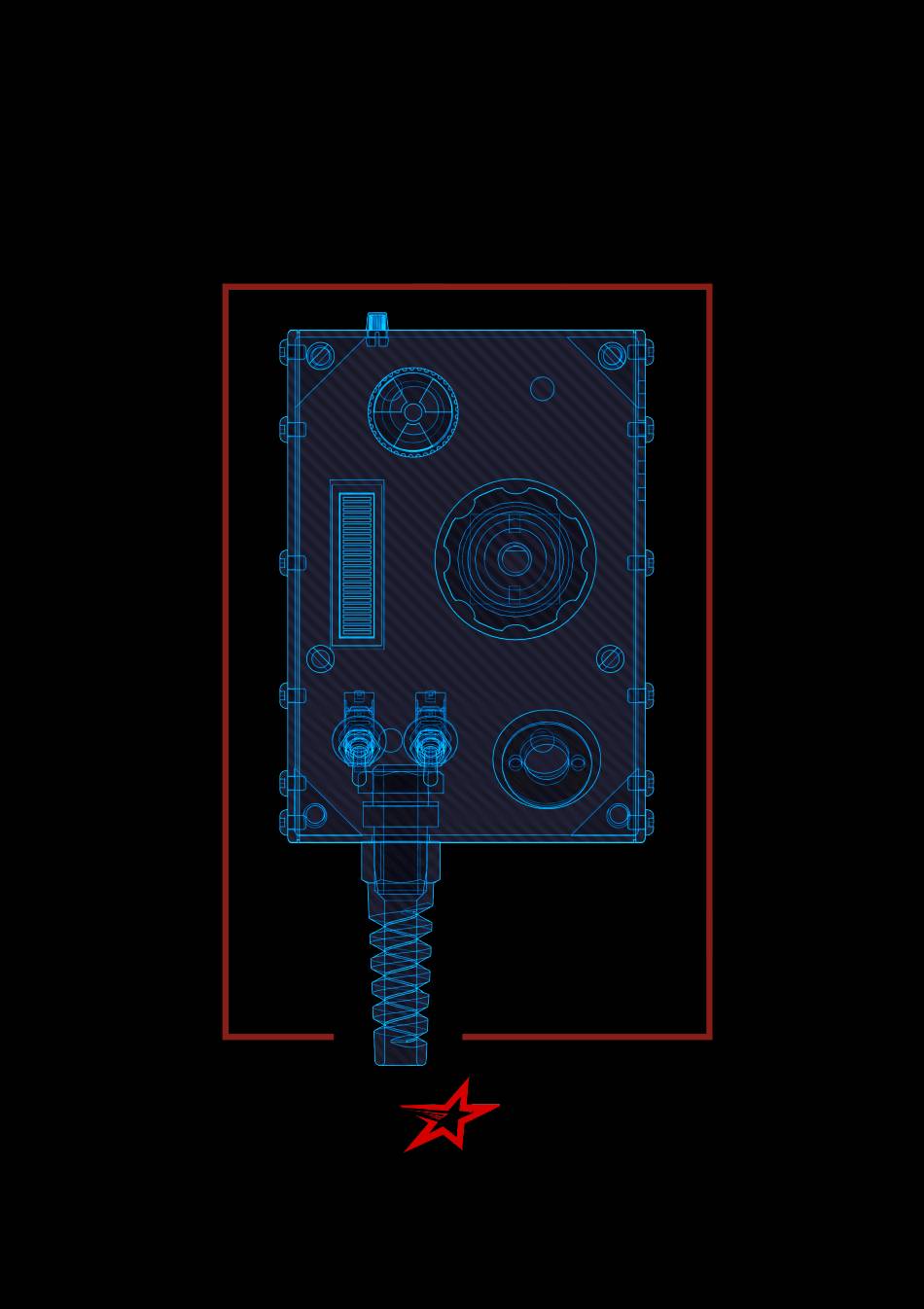

Page 1 GPSTAR Attenuator Operational Guide...

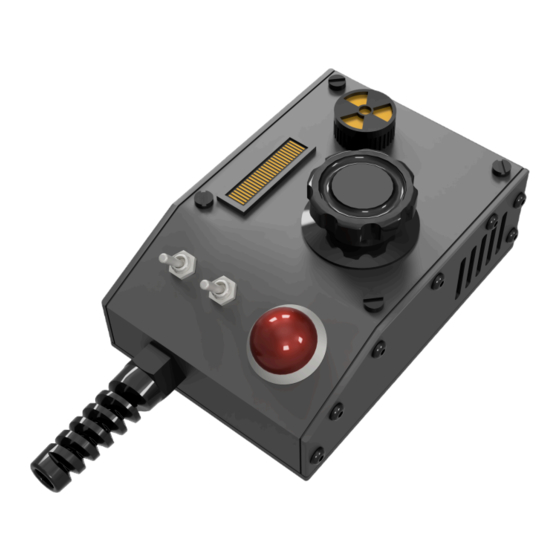

Page 2 GPStar Attenuator Operation Guide The Attenuator device alters the magnetic ﬁeld of the cyclotron inside of a Proton Pack. This allows the user to extend the time to ensnare an apparition by preventing an overheat safety event. Ahead of an overheat, the Attenuator will provide physical and audio visual cues as to the impending event.
Page 3: Standard Features
• Attenuate a Proton Pack to prevent over heating. • Real time status updates of the Proton Pack and Neutrona Wand is shown on the Attenuator various LED indicators. • Volume control, Music playback and navigation. • Basic controls of a Proton Pack and Neutrona Wand.
Page 4: Operation
Operation While not attached to a Proton Pack (standalone mode) the Attenuator will simply provide some lights and effects. The left toggle switch will turn on the bargraph animations while the right toggle switch will turn on the LEDs. When the Attenuator is connected to your GPStar Proton Pack, it will provide extended functionality.
Page 5 Attenuator Layout • Attenuator Status: If any devices are connected to the Attenuator over WiFi, then it will turn green. When red, it means no devices are connected. • Power Level: This is the current system power level of the Neutrona Wand and Proton Pack.
Page 6 • Left Toggle: Turns the pack on or off, similar to use of the switch under the Ion Arm • Right Toggle: Turns the LEDs on the device on or off • Main Dial - Long Press: Alternates between two modes of operation •...
Page 7: Wifi Connectivity
2. Open the WiFi preferences on your mobile device and look for the WiFi network which begins with "ProtonPack_". • If this is your ﬁrst time connecting to the Attenuator, use the default password "555-2368". 3. Open up a web browser and navigate directly to the following URL: http://192.168.1.2...
Page 8: Wifi Security
WiFi Security After connecting to your Attenuator over WiFi for the ﬁrst time, it is recommended to change the default password of the WiFi. Scroll down to the bottom of the page to ﬁnd the "Change WiFi Password" link. Forgot Your WiFi Password? Please visit the gpstartechnologies.com support page for instructions...
Page 9: Equipment Status
Equipment Status The equipment status information updates in real-time as you interact with the device. If you see a "--" (dash) beside these values, it can indicate a potential communication issue. Simple refresh the page and or check your WiFi connection.
Page 10: Audio Controls
Audio Controls Here you have full control of the master (overall) volume and to mute / unmute all devices. For playback of music, you can advance forward or backwards in the music queue. You can also select the speciﬁc track for playback from the selection ﬁeld.
Page 11 Pack Controls Controls are available on a per action or state basis. You have options to turn the Proton Pack on or off remotely. The options to vent or attenuate are only enabled while the devices are in a speciﬁc state. Vent: This can only be triggered remotely when in the "Super Hero"...
Page 12 Preferences / Administration This menu allows you to update the WiFi password, update the ﬁrmware of the Attenuator, restart or resync the system and adjust various settings of your Proton Pack and Neutrona Wand. Page 12...
Page 13: Attenuator Settings
Attenuator Settings Set options related speciﬁcally to the Attenuator, such as when the vibration motor or buzzer may be used to provide physical feedback during operation. Page 13...
Page 14 Music Track Listing Editor The ability to add a user-friendly track listing has been integrated into the UI. Song titles may be entered as 1 entry per line, in the order by which they are numbered on your microSD card in your Proton Pack and Neutrona Wand.
Page 15 Proton Pack Settings You can set changes such as the operational mode, effects theme, startup volume, cyclotron direction, LED counts and numerous other settings.  Page 15...
Page 16 Neutrona Wand Settings For the Neutrona Wand Settings, you can change the default ﬁring modes, bargraph animations, enabling the special spectral modes, quick venting, vent light adjustment, cross the streams mode and various other speciﬁc settings for Neutrona Wands.  Page 16...
Page 17 Overheat & Smoke Settings You can individually adjust the overheat and smoke settings for each power level.   Page 17...
Page 18 External WiFi Settings It is possible to have your device join an existing WiFi network which may provide a more stable network connection. 1. Access the "Change WiFi Settings" page via http://192.168.1.2/ network URL to make the necessary device modiﬁcations. 2.
Page 19: Firmware Updates
The Attenuator supports Over-The-Air (OTA) ﬁrmware updates. Please visit gpstartechnologies.com to download the latest version. 1. With your Proton Pack and Attenuator powered on, navigate to the Update Firmware page on your mobile device. 2. Use the "Select File" button and select the downloaded ﬁrmware ﬁle that you downloaded.
Page 20 www.gpstartechnologies.com www.fruttotechnology.com Rev 2.0...
