BluStream DA11XLR Quick Reference Manual

Introduction
FEATURES:
• Dante® network interface for 2 x XLR audio inputs
• Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels
• Switchable 48V Phantom power for each MIC XLR input
• Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
• Supports: 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 0 802.3af PoE for powering of product from any PoE switch
• Local 12V power supply input for when network switch does not support PoE*
* PS121PH power supply sold separately
Front Panel
1 2
Connections:
DC Input - Connect to +12VDC power supply (not supplied) if device is not powered via a PoE switch
1
Dante® Audio Output - RJ45 socket connects Dante® network and powers device via PoE
2
48V Phantom Power Switch - Enables/disables 48V Phantom power to connected device
3
XLR Audio Input - 1ch balanced/unbalanced/MIC audio input to Dante®
4
Reset Switch - Press and hold to reset device
5
Contact: support@blustream.com.au

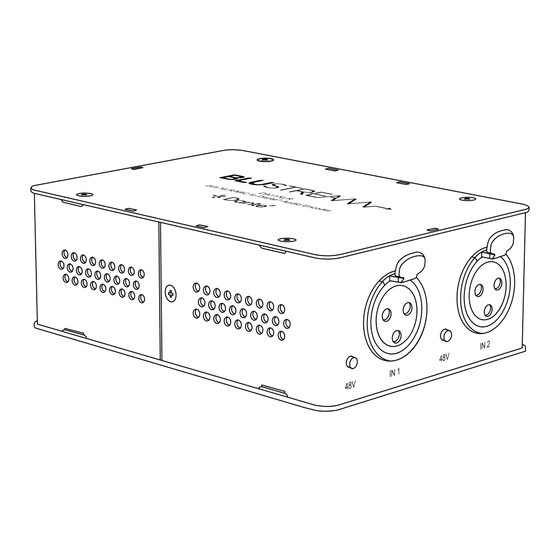

DA11XLR
Quick Reference Guide
The DA11XLR is a multi-input XLR to Dante® networked audio system. The DA11XLR converts
2 input channels of balanced / unbalanced / MIC audio with switchable 48V Phantom
power to Dante® digital audio.
The DA11XLR is a plug & play device that is powered using PoE (Power over Ethernet), or via
12V power supply, offers support for AES67 RTP audio transport.
Rear Panel
3 4
| support@blustream-us.com
Side Panel
5
| support@blustream.co.uk
