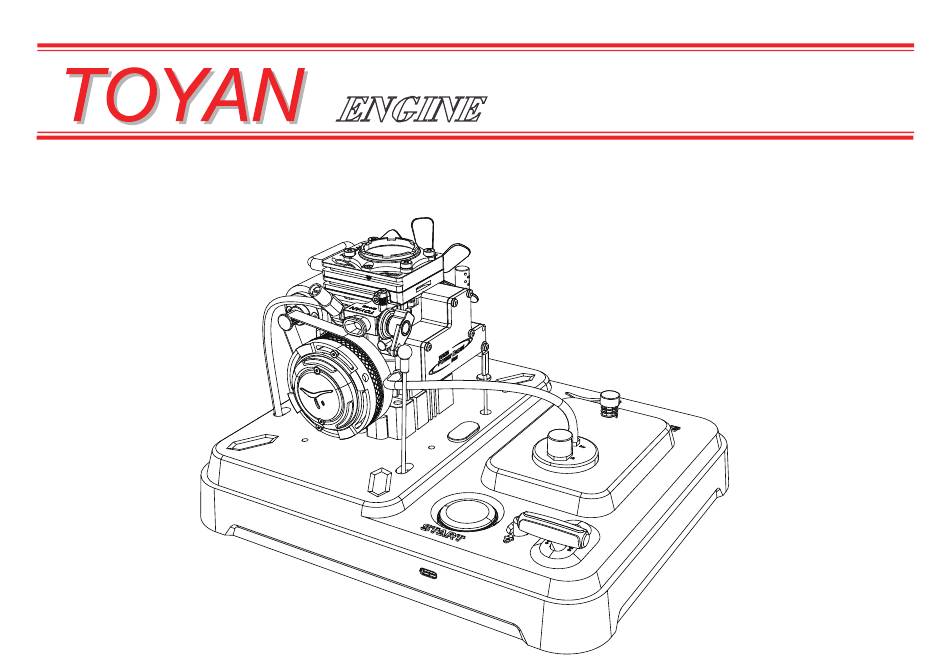

- Page 1 Micro single-cylinder engine L��� gift box version Operating instructions...
- Page 2 Catalog List of attachments ---------------------------------------------------------------------- �� Product Introduction ---------------------------------------------------------------- ��~�� Start that how-to instruction ----------------------------------------------------------- �� Precautions ------------------------------------------------------------------------------- �� Maintenance & Maintenance -------------------------------------------------------- ��~�� Diagnosis and handling of common faults --------------------------------------------- �� After-sales service ------------------------------------------------------------------------ ��...
-
Page 3: List Of Attachments
List of attachments S / N I n c l u s i o n s A m o u n t L � � � M i c r o s i n g l e - � � �... -
Page 4: Product Introduction

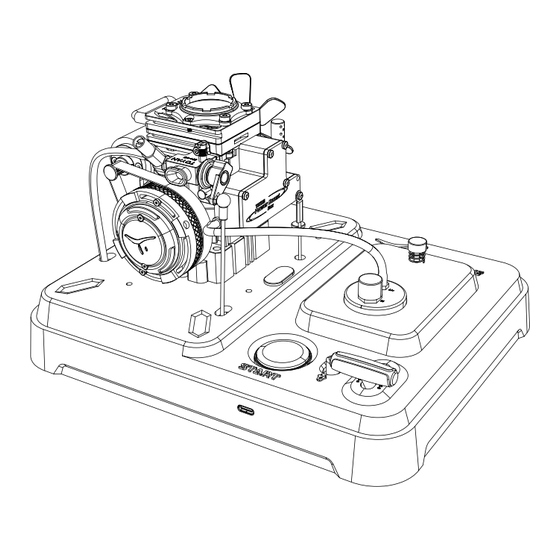

Carburetor nozzle Product Introduction Oil needle Engine structure and components Carburetor Pump oil button spark plug （Boosting methanol oil pressure） Oil inlet cover Engine body Throttle push rod Waste fuel tank Power switch Start key Charging port Base body Engine exhaust pipe Engine exhaust pipe Engine exhaust pipe Engine exhaust pipe... - Page 5 Product Introduction Product parameters · Displacement:�.�cc · Cylinder diameter: ��.��mm · Piston stroke: ��.��mm · Speed range: ����-����� rpm · output: �.��ps(��%Nitro) · ���.�mm Weight: ����g · Material: Aluminum alloy ��.�mm ��.�mm ���.�mm...
- Page 6 TOYAN Startup operation instructions Step �: Move the power switch downwards Step �: Press and hold the start button for two seconds to start the engine Step �: Push the throttle push rod to control the engine speed Attention: *Press the start button...
-
Page 7: Matters Needing Attention
TOYAN Matters needing attention Please remember that your engine is not a toy, but a highly efficient internal combustion engine. Its output power may cause harm or other impacts to you. Please do not modify or disassemble it without authorization. -
Page 8: Maintenance And Upkeep
Therefore, TOYAN will also provide you with long-term maintenance services. You can also complete basic cleaning and maintenance on your own. - Page 9 TOYAN b.The filament is curled and deformed. c.Corrosion caused by external objects adhering to the filament or plug body d.The engine will shut down when idling. e.Turn off the power and turn off the engine after starting. At the end of each operation, drain the fuel tank, then power on the spark plug and attempt to restart the engine, burning off...
- Page 10 Timing synchronization belt adjustment All TOYAN engines have their timing belt position checked before leaving the factory. If, after several hours of execution, a loss of operating power or unstable engine operation is found, the timing belt needs to be checked and debugged to obtain the correct ignition data for the engine.
- Page 11 TOYAN after-sale service of common faults If there are any product abnormalities, please contact the designated after-sales service center of our company, and we will warmly serve you. Thank you for your cooperation!
