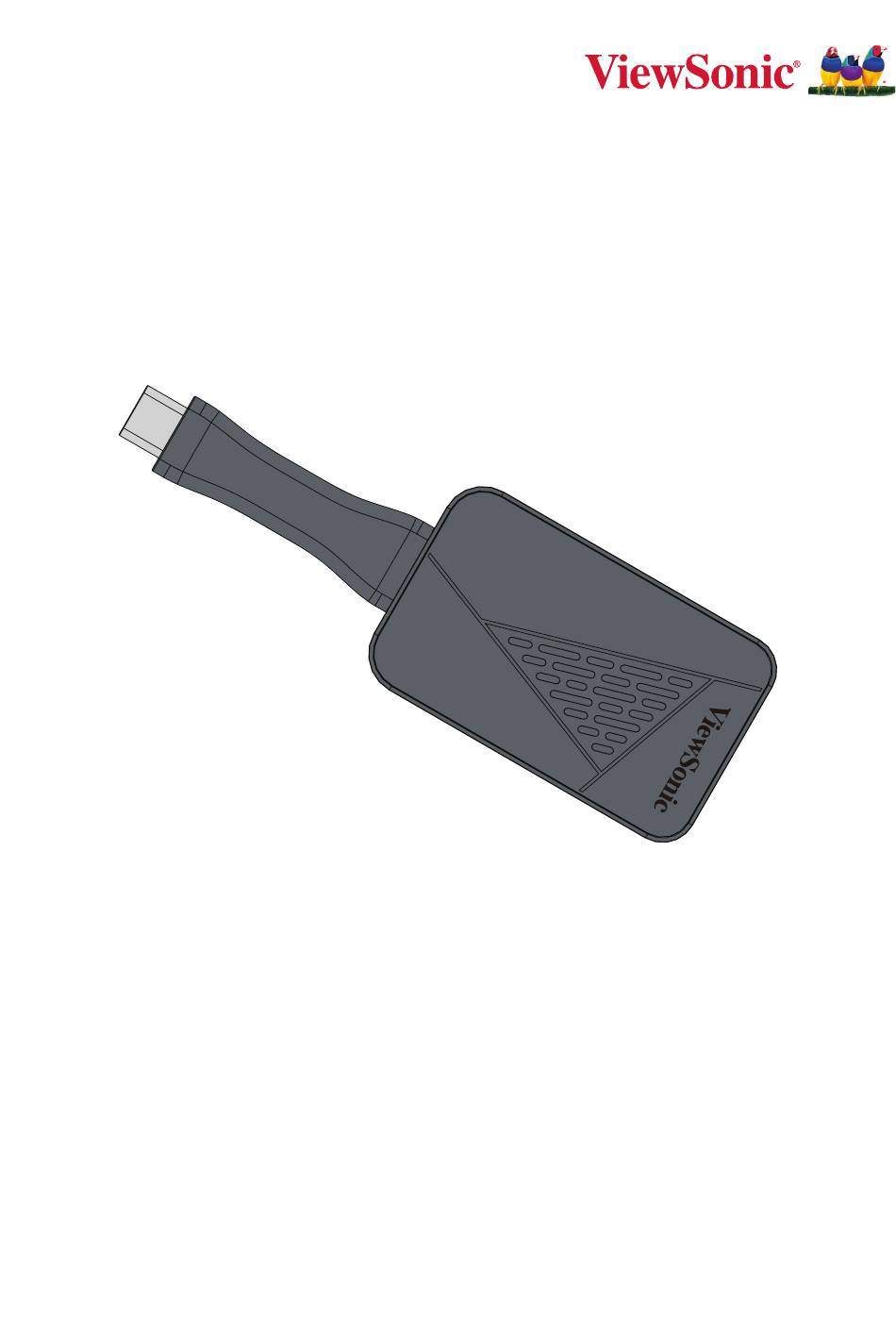

LCD-WPD-001-TX
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
Model No. VS19948
P/N: LCD-WPD-001-TX
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ViewSonic VS19948
Summary of Contents for ViewSonic VS19948
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
- Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
-
Page 3: Table Of Contents
Contents Introduction ..............4 Package Contents ....................4 Product Overview ....................5 Transmitter ......................5 Making Connections ............ 6 Connecting the Transmitter..................6 Wi-Fi Display ......................7 Re-Pairing the Transmitter ..................8 Updating the Receiver Firmware ......... 9 Open the OSD Menu and Select WiFi Re-Pair............9 Connect the Laptop to the Monitor ..............10 Updating the Receiver Firmware ................12 Updating the Transmitter Firmware ...... -
Page 4: Introduction
Introduction Package Contents Transmitter NOTE: If anything is missing or damaged, please contact your local reseller for more information. -
Page 5: Product Overview
Product Overview Transmitter Number Item Description Display input; connect to the casting device (e.g., laptop, USB Type C Input mobile phone, tablet). Using a paper clip or SIM-eject tool, press and hold for Re-Pair Button five seconds to re-pair the device. LED Indicator Indicates the power and connection status. -
Page 6: Making Connections
Making Connections Connecting the Transmitter USB C 1. Connect the Transmitter’s USB Type C Input to a USB Type C port of the casting device (e.g. laptop, mobile phone, tablet). 2. Once connected, the Transmitter’s LED Indicator will flash for a few seconds then stop. -
Page 7: Wi-Fi Display
Wi-Fi Display Direct Wireless Cast 3. Connect the Wi-Fi TX Dongle to your external device. 4. Turn on the VG1656N by pressing the Power Button. 5. Press Up or Down to open the On-Screen Display (OSD) Menu. 6. Press Up or Down to select WiFi Display. Then press the Power Button. -
Page 8: Re-Pairing The Transmitter
Re-Pairing the Transmitter NOTE: Re-pairing is only required when the user’s TX dongle is not the original TX dongle. 1. Connect the Transmitter’s USB Type C Input to a USB Type C port of the casting device (e.g. laptop, mobile phone, tablet). USB C 2. -
Page 9: Updating The Receiver Firmware
Updating the Receiver Firmware Open the OSD Menu and Select WiFi Re-Pair 1. Press the Power button on the right side of the VG1656N monitor to open the On-Screen Display (OSD) menu. 2. In the OSD menu, select Input Select then WiFi Re-Pair. NOTE: ... -
Page 10: Connect The Laptop To The Monitor
Connect the Laptop to the Monitor 1. After selecting WiFi Re-Pair, the VG1656N will display the below screen. SSID: XXXXXXXXX PSK: XXXXXXXXX Device Ready to pair Make note of the SSID and PSK numbers located at the top of the screen. SSID: XXXXXXXXX PSK: XXXXXXXXX NOTE: ... - Page 11 3. After the laptop successfully connects to the VG1656N monitor, the VG1656N screen will show the below connection screen. Device WiFi Display Connecting to the device...
-
Page 12: Updating The Receiver Firmware
Updating the Receiver Firmware 1. On the laptop, open a web browser and enter 192.168.203.1 in the address bar to access the Settings page. 2. On the Settings page, click on Internet and connect to a local wireless network. Setting Internet not connect! WIFI Password... - Page 13 4. On the laptop, if a firmware update is available the system will notify you. Click OK to update the firmware. Local Version: 22136001 Server Version: 22495012 Cancel 5. After clicking OK, the firmware update will begin. On the VG1656N’s screen a progress bar will be displayed.
-
Page 14: Updating The Transmitter Firmware
Updating the Transmitter Firmware • Before updating the firmware, please insert the TX dongle into the laptop. NOTE: Ensure the laptop supports video output and power delivery via USB Type C (DisplayPort Alternate Mode). USB C • Connect the laptop to the VG1656N monitor by following the steps on pages 6~8. - Page 15 3. After connecting to a wireless network, click on Upgrade for transmitter. Setting Internet not connect! WIFI Password 59274042 Display mode 100% Wireless Channel Language Auto Upgrade not connect! Upgrade for transmitter Reset to default Reboot 4. On the laptop, if a firmware update is available the system will notify you. Click OK to update the firmware.
- Page 16 5. After clicking OK, the firmware update will begin. On the VG1656N’s screen the installation progress will be displayed. Transmitter upgrading... (0/1) EzcastTX is installing ... , please wait. NOTE: During the update process, please ensure that the power remains on and that the devices stay connected.
-
Page 17: Appendix
Appendix Specifications Category Specifications Function Transmitter Main Chip AM8360D Wi-Fi 5 GHz 1T1R HDCP Support HDCP 1.4 Video support 1920 x 1200 @ rb Audio support 2 channels, PCM Latency 50ms~100ms Distance 15 m (VG1656N) Antenna Type Printed Antenna Manufacturer Actionsmicro Model Name AM9421... -
Page 18: Led Indicator
LED Indicator Transmitter Light Description The Transmitter is connected to the Receiver successfully and Solid White is operating normally. The Transmitter is ready to pair with the Receiver when the Flashing (Slowly) receiver is powered up. Flashing (Quickly) The Transmitter is connecting with the Receiver. The Transmitter is not working properly;... -
Page 19: Regulatory And Service Information
Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 20: Fcc Radiation Exposure Statement
FCC ID: GSS-VS19948 IC Radiation Exposure Statement The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. -
Page 21: Declaration Of Rohs2 Compliance
Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed Maximum Actual... -
Page 22: Indian Restriction Of Hazardous Substances
Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®... -
Page 23: Copyright Information
Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation. VESA is a registered trademark of the Video Electronics Standards Association. -
Page 24: Customer Service
For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia Bangladesh www.viewsonic.com/au/ www.viewsonic.com/bd/ 中国 (China) www.viewsonic.com.cn www.viewsonic.com/hk/ 香港 (繁體中文) Hong Kong (English) India www.viewsonic.com/hk-en/ www.viewsonic.com/in/...
