Summary of Contents for Motorola MOTO2LX

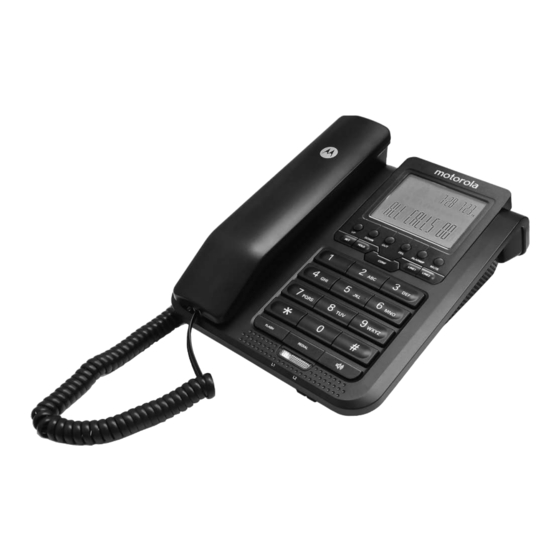

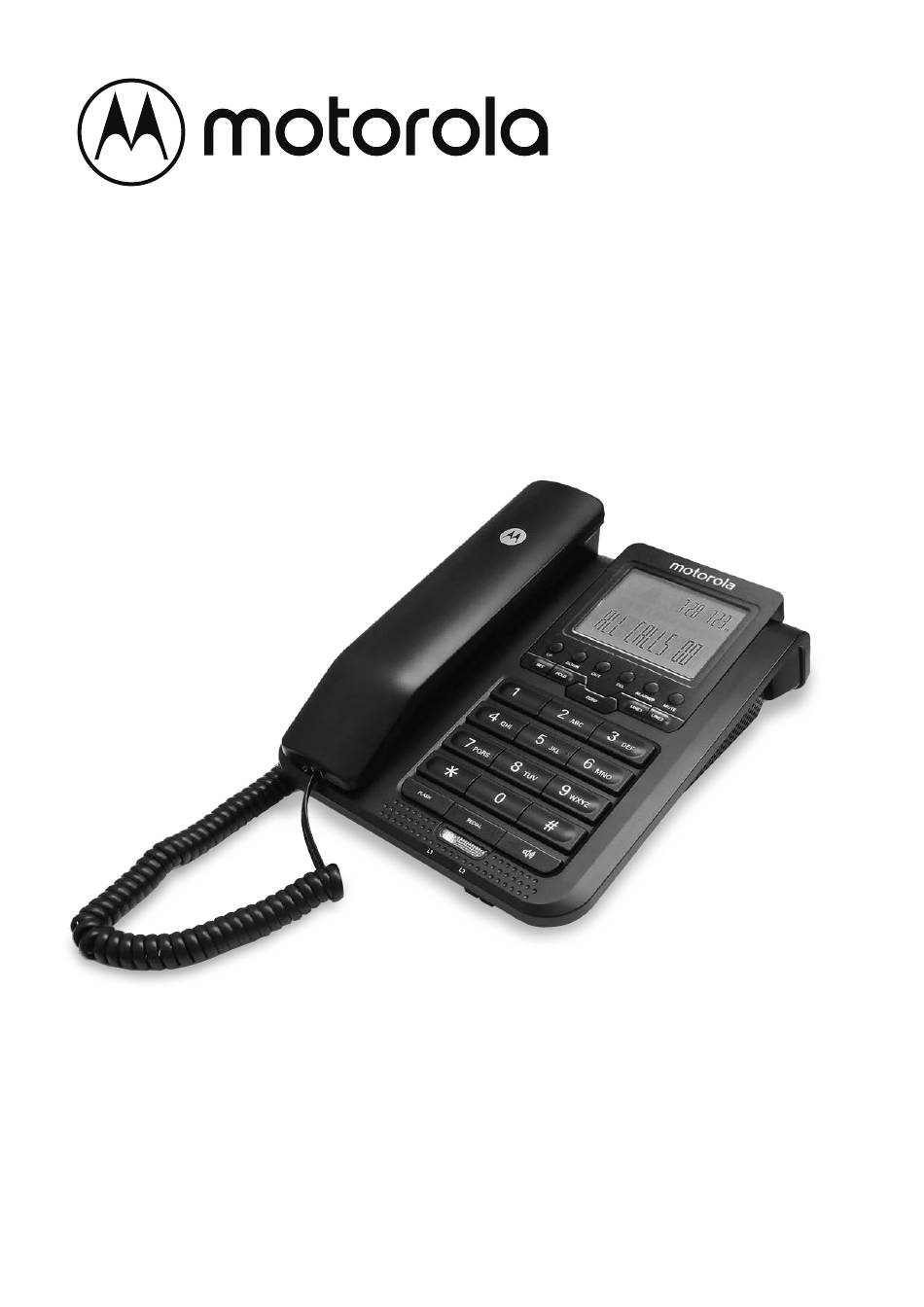

- Page 1 User Guide 2 Line Digital Corded Telephone Model: MOTO2LX Please fully read these instructions before operating your telephone.
-
Page 2: Table Of Contents
Table of Contents 1. We worry about you ............... 3 2. Safety precautions ................3 3. General information ............... 4 4. Box content ..................4 5. Knowing your telephone ..............5 6. Installation ..................7 7. Operating your telephone ............... 8 8. -
Page 3: We Worry About You
We worry about you Thank you for purchasing this product. This product has been designed and assembled with utmost care for you and the environment. This is why we supply this product reducing the amount of paper (pages) and therefor save trees to be cut for making this paper. -
Page 4: General Information
General information Keep your registration and original dated sale receipt in a safe place. To get warranty service on your product, you must provide us with a copy warranty. For more information or questions, please call us at: MÉXICO 0-800-021-0000 COLOMBIA 01-800-700-1504 VENEZUELA 0800-100-4289 CHILE... -
Page 5: Knowing Your Telephone
Knowing your telephone 1 - Tone/Pulse switch 2 - Ringer Hi/Lo switch 3 - Line 1 connection 4 - Line 2 connection 5 - Handset spiral cord connector 6 - Battery door (3 x AA not included) Knowing your telephone... - Page 6 1 - Handset 12 - Conference 2 - Hook switch 13 - On Hold 3 - Up 14 - SET to enter menu 4 - Lighted LCD screen 15 - Keypad 5 - Down 16 - Speakerphone button 6 - OUT (dialed calls) 17 - Redial 7 - DEL (delete) 18 - Line in use LED, L1 and L2...
-
Page 7: Installation
Installation First steps Remember first that the caller ID function is a service that your local telephone company offers. Be sure you contact them regarding the services available. Install your telephone following the instructions below: • The unit requires 3 AA batteries for screen to function. Open the battery compartment cover and insert the batteries in the right polarity, then close the cover (it is recommended to use alkaline batteries). -
Page 8: Operating Your Telephone
Operating your telephone Receiving a call • When Line 1 rings, the L1 indicator will flash showing there is a call coming in that line. To answer, press LINE1, button, or lift the handset from the base to answer the call. •... - Page 9 To switch from handset to speakerphone Receiving a call through the handset and transferring to speakerphone • When base rings, pick up handset to answer the call. • If wish to change to speakerphone, press and return handset to base. •...
- Page 10 Menu set up The menu review: on hook state, press SET, press UP or DOWN key, LCD displays corresponding contents, when finding the desired setting item, press SET key to enter the correspond setting mode. Date and time settings In on-hook state, press SET key, LCD displays ‘SET 1 DATE’，Press SET key again, The LCD displays year and flashes, press UP or DOWN key to change the year you want, press SET key again to confirm and enter month setting.
- Page 11 Setting alarm clock In on hook state, press ALARM/P, the LCD displays “12-00 AL1”, press SET key, and press UP or DOWN key to set the alarm time (24 hour) format and press SET key to confirm and enter the second alarm time. The alarm symbol will displays on LCD and if a second alarm clock set is required, just follow the same steps described here.
- Page 12 Indicator for missed call When missing aa new called received, the missed call indicator will flash. In on hook state, when the missed calls are reviewed, the indicator will turn off. Outgoing call function Operation Reviewing outgoing number In on hook state or off hook state, press OUT key to enter review outgoing call memory, press OUT key in turn to view all outgoing numbers and talk time.
- Page 13 Pulse / Tone selector and Ringer selector In on hook state,slip switch to P is pulse dialing mode or slip switch to T if tone dialing mode is necessary. In on hook state, slip switch to HI if need high ringer volume, slip switch to LO is need lower ringer volume.
- Page 14 Two line operation Receiving a call The unit will ring when you have an incoming call,the indicator of L1 or L2 is flashes, press speakerphone or pick up the handset and speak to the caller. Using handset When the unit rings,pick up the handset automatically select line 1 or line 2(If the parallel machine has been taken,to take the parallel line,otherwise mush press the corresponding key such as Line 1 or Line 2,otherwise automatically take another line),press line 1 directly to select line 1 and enter speakerphone...
- Page 15 Three-party conversation When line 1 and line 2 is connected, press the CONF key at any time to turn on the two lines at the same time and enter the three-party call state. a. When the Line 1 ringing, pick up the handset and speak to the caller, press HOLD key to hold line 1,press Line 2 to connect line 2,press call number then press CONF key to enter three-party conversation.
-
Page 16: General Features
General features • FSK/DTMF Caller ID receiving and auto-detection • 65 numbers received calls memory • 20 numbers dialed calls memory • Phonebook with up to 8 contacts • Simple two-line operation features • Conference call function with 2 external calls •... -
Page 17: Consumer Products Limited Warranty
Consumer Products Limited Warranty Thank you for purchasing this Motorola branded product manufactured under license by MDX ELECTRONICS LLC. What Does this Warranty Cover? Subject to the exclusions contained below, MDX ELECTRONICS LLC warrants that this Motorola branded product ("Product") or certified accessory ("Accessory") sold for use with this product that it manufactured to be free... - Page 18 Save your original sales receipt with the date of purchase showing on receipt. To obtain warranty service of your Motorola product, you will need to provide a copy of your sales receipt to be able to determine the current status of your warranty.
