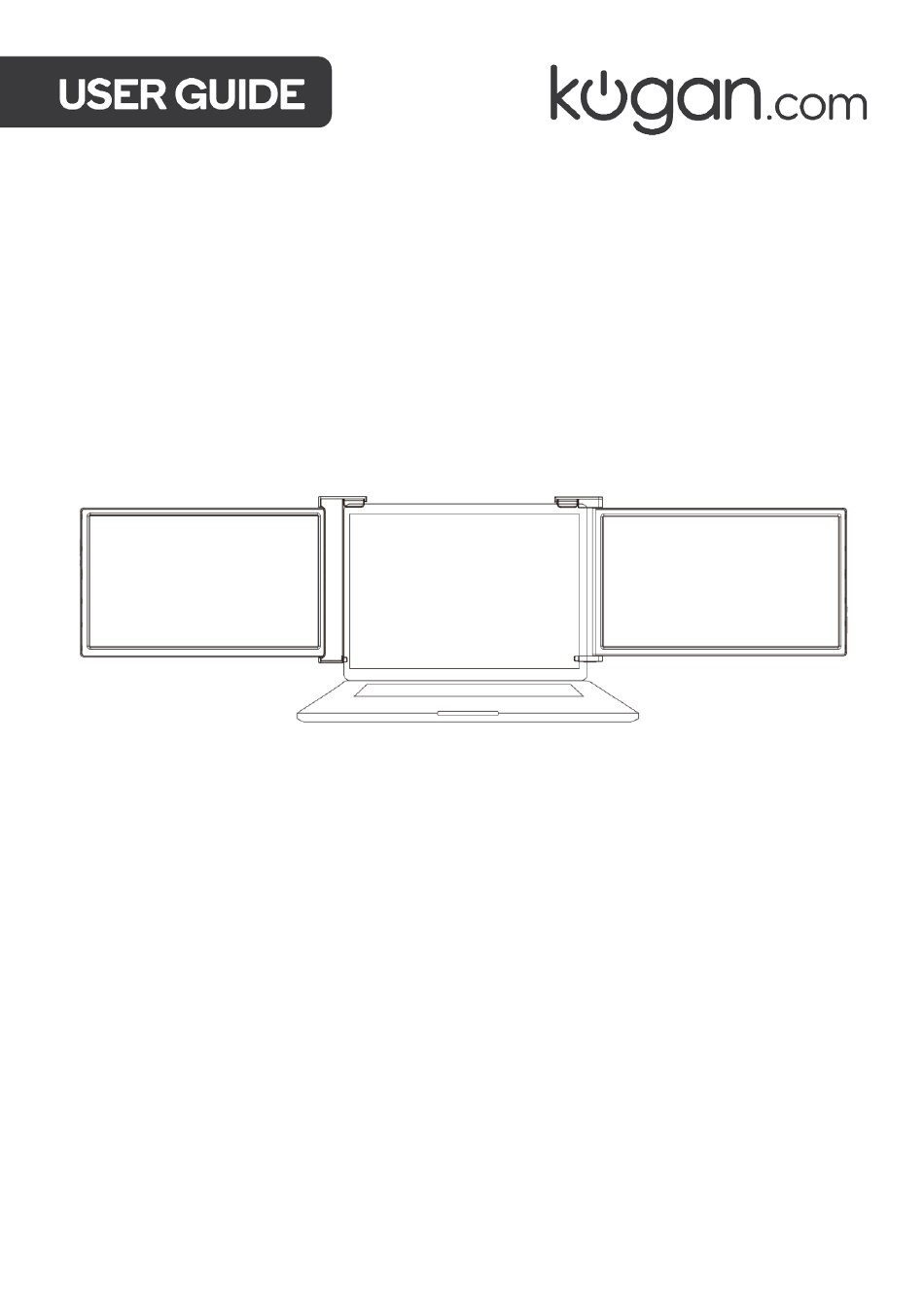

- Page 1 XPRESSO 15.6" FULL HD PRO TRI-FOLD PORTABLE MONITOR DUAL SCREEN (1920 × 1080) KAMN156TFDEA...
-
Page 2: Table Of Contents
Safety & Warnings Components Installation Operation Connectivity Specifications Notes... -
Page 3: Safety & Warnings
SAFETY & WARNINGS • Handle the tri-screen with care and do not press the screens to avoid damage. • Do not exceed its maximum turning angle showing as below: Turning angle of screens Right screen (0° - 180°) Left screen (0° - 235°) -
Page 4: Components
COMPONENTS Monitor 90-degree USB-C Cables (x2) (Video & Mini HDMI Cables (x2) (Video Only) Power) USB-C - USB-A Cables (x2) (Power Only) Carry Bag Velcro Fastener Protective Caps (x6) -
Page 5: Installation
INSTALLATION Unpack the monitor. Open the two screens in the directions shown below. Place the bracket at the back of the laptop screen and secure it with the bracket clamping the screen. Lift the stand and stretch it to its end. Press and hold the button to retract the stand (the stand is embedded at the back of the monitor to offer extra support.) Using the necessary cables, plug one end of the cable into the monitor and the other into your laptop (see Inputs and Buttons). -
Page 6: Operation
OPERATION Inputs and Buttons Decrease the brightness, decrease the value. Increase the brightness, enter the menu and press to turn to the next selection, increase the value. Press to enter the OSD (On-Screen Display) menu, return to the previous page. Mini HDMI port (no power supply): Video signal transmission. - Page 7 Selecting the Right Cables • To determine which cables to use, first identify your laptop’s ports using the pictures below or reference your laptop’s user guide. • If your laptop has two Thunderbolt3/4 / USB-C with DP ports, the simplest way to use the monitor is with the two provided USB-C cables.
- Page 8 Protective Caps If your laptop is an ultra-thin style (laptop screen thickness ≤6mm), using the protective caps helps to reduce shaking.
-
Page 9: Connectivity
CONNECTIVITY Two USB-C or Thunderbolt 3/4 Ports If there are 2 full function USB-C or 2 Thunderbolt 3/4 ports on the laptop, use the 2 included USB-C cables to connect the laptop to the monitor screens. USB-C USB-C Note: Ensure that the laptop USB-C ports support power & data transmission and have enough power supply above 5V/2A. - Page 10 Full Function USB-C and HDMI Port Connection If there is one full function USB-C port and one HDMI port on the laptop: Use the provided USB-C cable to connect one side of the monitor and the laptop. Meanwhile, use the HDMI cable and an extra power supply (USB-C to USB-A cable) to connect the other side of the monitor and the laptop.
- Page 11 Laptop Display Configuration PC / WINDOWS Go to your Display Settings (Start Settings System Display). Click and drag the screens to the configuration shown below. To set different display modes for multiple screens, select 1/2/3 (click the ‘Identify’ button to find the corresponding screen), then enter the ‘Multiple displays’ menu to set.
- Page 12 Open ‘System Preferences’ Select ‘Displays’ from the menu. Click ‘Display Settings’ (Fig. 1). Click the monitor’s name to set Mirror or Extended display (Fig. 2). Click any display screen in the interface shown in Fig. 3 to adjust the screen position.
- Page 13 On Screen Display (OSD) Press the ‘ ’ Menu button to activate the OSD menu. Press the ‘+’ button to choose your settings. Press the Menu ‘ ’ button to confirm. Press the ‘-’ button to return to the previous page. OSD Settings •...
- Page 14 Image • ECO: Preset display settings for various modes (Standard/ Game/ Movie/ Text/ FPS/ RTS Modes). • DCR: Select ON or OFF to enable or disable the dynamic contrast ratio function. • Aspect: Adjusts the aspect ratio to 4:3/ WIDE. Colour Temp •...
- Page 15 Reset Select ‘RESET’ to revert all settings to the factory default mode. MISC. • Signal Source: Contains two signal sources (USB-C and HDMI). • Low Blue Light: Decreases blue light content in display. • HDR MODE: Enables HDR (High Dynamic Range) if connected to a compatible device.
-
Page 16: Specifications
SPECIFICATIONS • Two 1920 x 1080, full HD LCD IPS panels • 16:9 aspect ratio Display • Adjustable brightness • Power consumption: 5V 2A (per screen) • Weight: 3.92 pounds/ 1.78kg • Depth: 1 inch/ 2.53cm Size and weight • Height: 9.4 inch/ 23.9cm •... -
Page 17: Notes
NOTES... - Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
