Maximum CI 30 Series
Professional Digital Decoder
User Manual
Software Version≥ 03.d9.29
2009/08/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CI 30 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Maximum CI 30 Series

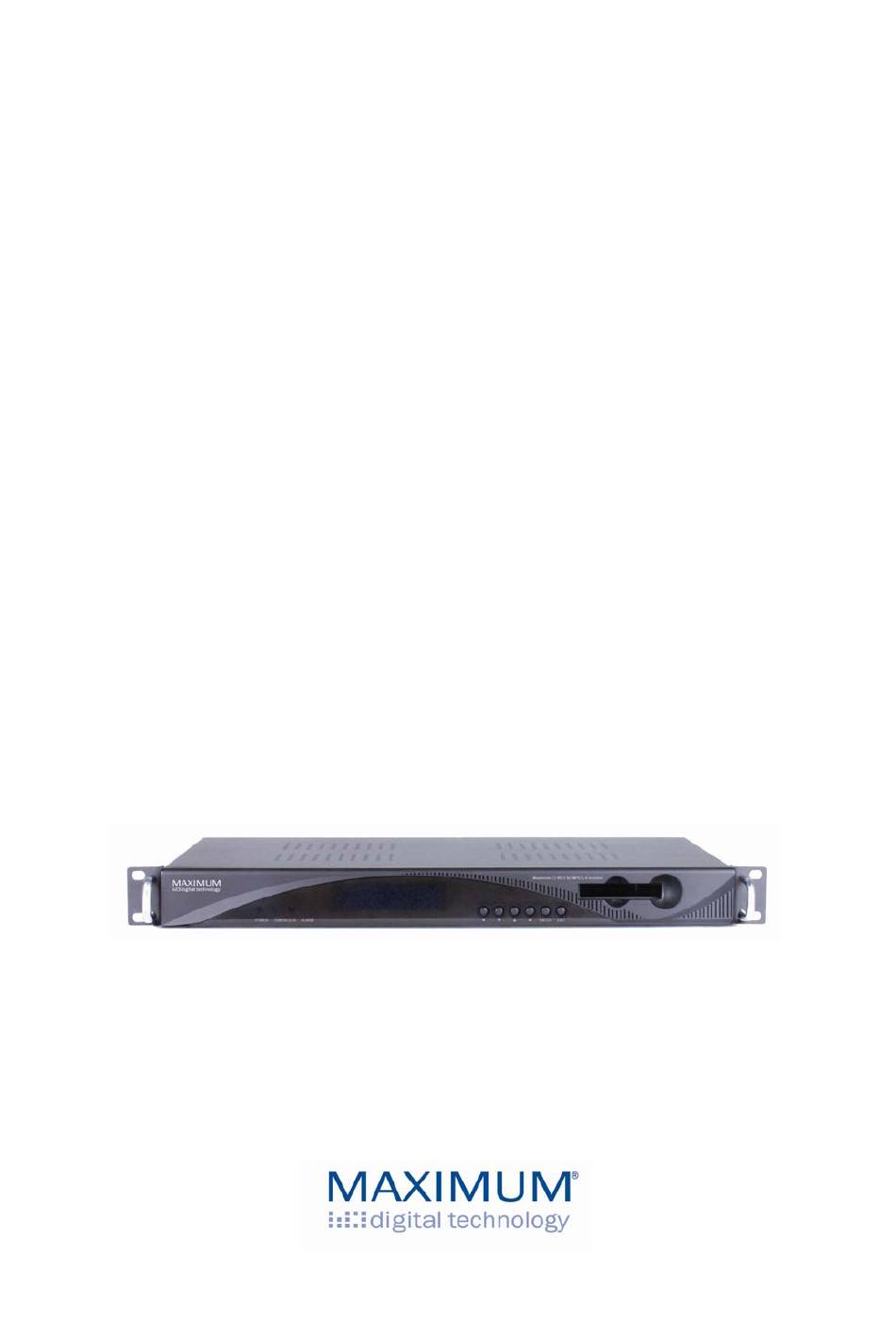

  • Page 1 Maximum CI 30 Series Professional Digital Decoder User Manual Software Version≥ 03.d9.29 2009/08/06...
  • Page 2: Table Of Contents

    Table of Contents 1. Before Using the Device ....................... 1 2. Models that Are Covered by This User Manual ..............2 3. Installation ..........................2 3.1 Inspection........................2 3.2 Operating Voltage ......................2 3.3 Power Supply ........................3 3.4 The Fuses ........................3 3.5 Connecting the Device ....................
  • Page 3 7.1 Install HDMS to a PC ....................19 7.2 Connect to HDMS ......................19 7.3 Login to HDMS ......................19 7.4 Add Maximum CI 30xx to HMDS .................. 20 7.5 Maximum CI 30xx in HDMS ..................20 7.6 Other Settings ....................... 21 8.
  • Page 5: Before Using The Device

    1. Before Using the Device Thank you for purchasing the Maximum CI 30xx series. This User Manual is written for operators/users of the Maximum CI 30xx Professional Digital Decoder to assist in installation and operation. Please read this user manual carefully before...
  • Page 6: Models That Are Covered By This User Manual

    ■ Simulcrypt Compliant ■ Where the ‘■’ sign represents standard option. Table 2.1 Model list of Maximum CI 30xx series 3. Installation 3.1 Inspection Open the packaging box. Check if all appendixes are in the box according to the appendix list, and if the device has any visible damage. Check that the power cord is suitable for the country where the device will be used.
  • Page 7: Power Supply

    The rear panel is directly related to the input and output options fitted. The figure below shows a typical rear panel. Figure 3.2 Rear Panel of Maximum CI 30xx Series TSoIP interface (not available on Maximum CI 301x ) XRL L interface...
  • Page 8: Power-On The Device

    4. Navigating the Front Panel Power Tuner Lock Alarm Keyboard Common Interface Figure 4.1 Front Panel of Maximum CI 30xx Series 4.1 Indicator LEDs There are 3 LED-indicators: -POWER: the status of the power supply green: the power is turned on - 4 -...
  • Page 9: Lcd

    <ENTER>-key for further navigation in sub-menus. Operation Buttons Figure 4.2 Keypad of Maximum CI 30xx series The 6 keys on the front panel allow you to navigate the information provided on the LCD and change parameters when the device operates under local control.
  • Page 10: Common Interface

    The TS/IP function block is valid when the TS/IP streaming board is installed into the Maximum CI 30xx. You can set it as ‘IP In’ or ‘IP Out’, which is exclusive to each other (refer to section 6.4.6).
  • Page 11: Main Menu

    Maximum CI 30xx series Receivers 6.1 Main Menu Turn on the device and wait for 8 to 10 seconds. During this period, the device will complete self inspection and configuration. The name of the device will be displayed on the top row of the LCD, and the local IP address will be displayed on the bottom row of the LCD.
  • Page 12: Qpsk/Cofdm/Qam/8Psk

    Maximum CI 30xx series Receivers - Ethernet: this indicates the status of the transport stream over IP input. The bitrate is displayed on the bottom row of the LCD only if IP input is valid (note this menu is showed only when the TS/IP streaming board is installed and the board is set to “IP In”, refer to section 6.4.6 Optional Function).
  • Page 13: Rssi

    Maximum CI 30xx series Receivers - LNB Voltage: select the correct LNB voltage output of the F-connector: Off, 13 V, 18 V. <A> - LNB 22KHz: activate the LNB 22 kHz control signal to the LNB: On or Off. <B>...
  • Page 14: Outputs

    Maximum CI 30xx series Receivers - TS Bit Rate: set the bit rate of the TS comes from the TS/IP input. The setting is only valid when the output smoothing is configured as Fixed Rate. 6.3 Outputs Under Outputs Menu, you can monitor and configure the parameters of CI, AV decoder, ASI out, ASI2/SDI out, Mux/Filter (A), and TS over IP output (B).
  • Page 15: Decoder

    Maximum CI 30xx series Receivers - Setup: under this sub menu, you can see all program names from the CI source that was set in ‘CI Source’ previously. All free programs are marked with ‘Free’ in the first row. To select which program to be de-encrypted, press the <...
  • Page 16: Asi

    Maximum CI 30xx series Receivers EBU Subtitle Lang: select the language of EBU Subtitle. Subtitle Priority: configure the priority of Subtitle; choose whether DVB or EBU should be first. Close Caption:Select ‘OFF’ will turn off the caption and select ‘ON’ will turn on the caption.
  • Page 17: Asi2/Sdi

    Mux functional block. Bit Rate: should be set to a specified value that doesn’t exceed the Maximum physical limit of the output medium. For example, to deliver the multiplexed TS to an 8MHz DVB 256QAM modulator, it should not exceed 55000Kb/s, otherwise overflow occurs.
  • Page 18 Filter Switch: the internal filter could be switched On/Off. The default value is ‘off’. To activate the filter function, you should turn on this filter functional block. Bit Rate: should be set to a specified value that does not exceed the Maximum physical limit of the output medium, otherwise overflow occurs.
  • Page 19: Ethernet

    Maximum CI 30xx series Receivers (xxxxx is the program name) On ‘Filter List’ sub-menu, all programs that are being selected to be filtered away are labeled as ‘Forbid’, otherwise, the un-selected programs are labeled as ‘Pass’. Use the <ENTER>-key to selected or un-selected the program being shown.
  • Page 20 Unicast. The IP address of the receiving device (may be PC with VLC) needed to be set to the same unicast address as the one on Maximum CI 30xx. Please don't use DHCP to get a dynamic IP address for the receiving device.
  • Page 21: System

    Maximum CI 30xx series Receivers - Channel x: ‘x’ means the channel number. Press the <ENTER>-key to go down to the sub-menu. There are 4 sub-menus: x-Multicast IP: Enter the IP address of the IP stream for the transport stream over IP output.
  • Page 22: Local Setup

    6.4.2 Trap IP Addr The Maximum CI 30xx provides a Monitor Center IP address. You can set this to be the same IP address of the Monitor Center, which is typically a PC in order to allow the device to send messages to the monitor center.
  • Page 23: Setting Machine Type

    7. Remote Monitoring and Control The Maximum CI 30xx series provides an Ethernet remote control interface for user remote control or supervise on one or multiple Maximum CI 30xx via the Headend Devices Management System (HDMS). 7.1 Install HDMS to a PC The HDMS Installation.exe file could be found on the CD-ROM which is enclosed in the...
  • Page 24: Add Maximum Ci 30Xx To Hmds

    When a new Maximum CI 30xx is added to the remote control network, you can press to refresh the network. The new added unit will be added into the HDMS automatically. For other methods for adding one or a group of Maximum CI 30xx, please refer to the HDMS Reference Guide.
  • Page 25: Other Settings

    “Local Setup”, and the HDSM software is installed correctly in PC (which should also be set appropriately and can access the network Maximum CI 30xx is connected to). If the problem remains unresolved, please contact a service agent for supports.
  • Page 26 Maximum CI 30xx series Receivers Rolling Off Factory 0.20 or 0.35 Punctured Rates 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 Reeds Salomon Decoding 204, 188, T = 8 & I=12 DVB-C QAM Demodulation Connector IEC, Female (7/8 MHz) or F Female (6 MHz) Input...
  • Page 27: Accessory List

    Maximum CI 30xx series Receivers I/O Interface on back panel LNB I/O 1×Input, 1×loop through output RS-232 1×9-pin D-sub male 1×Ethernet control port, 1×TS over IP output RJ45 (factory optional) ASI input ASI output 2×Redundant output SDI output 1 (optional) RGB output 1×RCA...
  • Page 28 Maximum CI 30xx series Receivers This document and the information contained in is the property of KJAERULFF1 DIGITAL A/S, and may be the subject of patents pending and granted. It must not be used for commercial purposes nor copied, disclosed, reproduced, stored in a retrieval system or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), whether in whole or in part, without Pro Broadband Inc.‘s prior written agreement.
