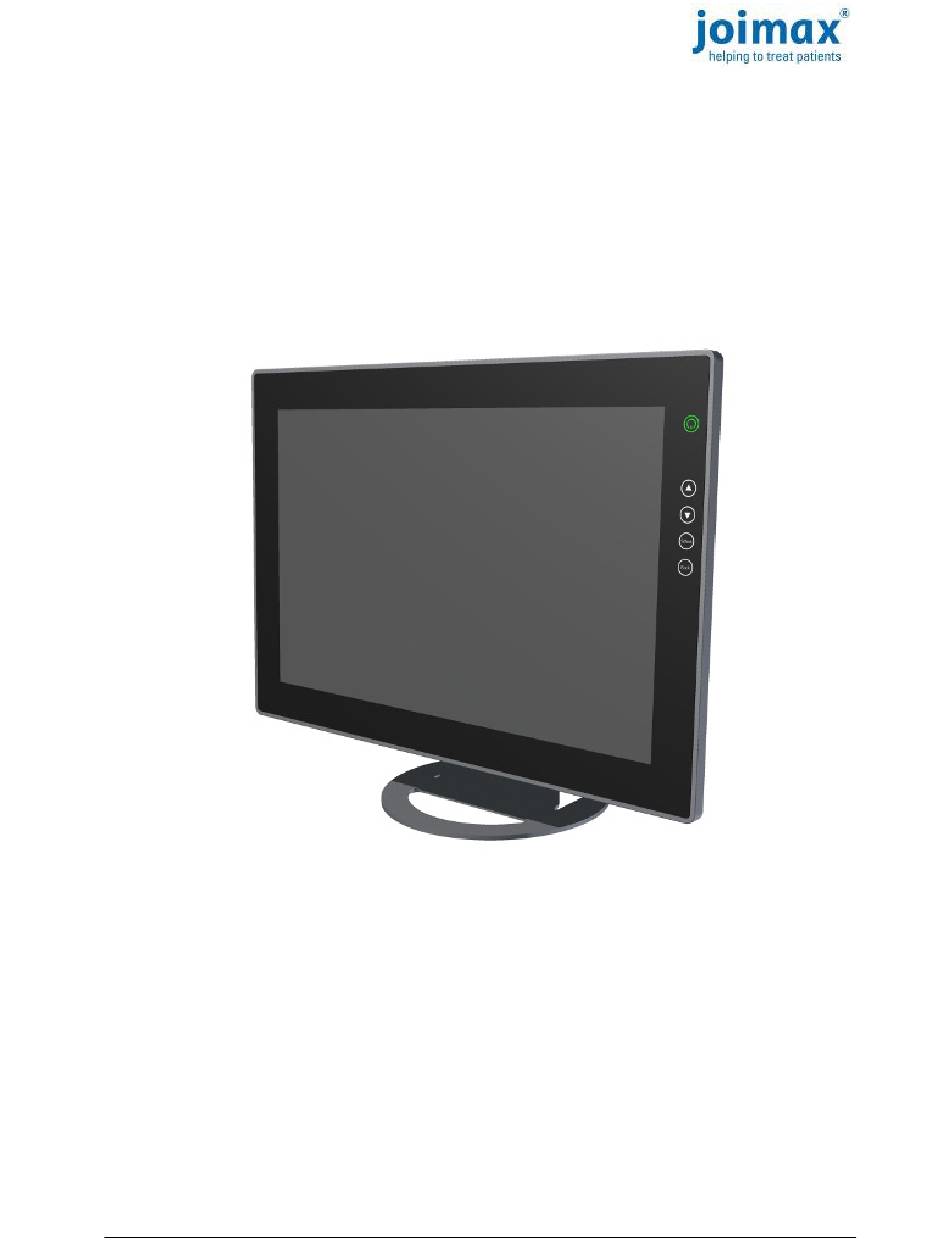

- Page 1 ® joimax JFMS2400 Instructions for use ® joimax Flatscreen Monitor 24‘‘ GA JFSM2400 2010-10-07 – Rev. 003 /English/ © Copyright joimax® GmbH 1/19...
-
Page 2: Table Of Contents
INTENDED USE ..........................4 SCOPE OF DELIVERY ........................5 SAFETY AND WARNING NOTES ..................... 5 ..................5 ENERAL SAFETY AND WARNING NOTES ® 24‘‘........6 AFETY AND WARNING NOTES FOR THE JOIMAX LATSCREEN ONITOR COMMISSIONING ..........................7 ........................7 ONNECTION DIAGRAM ........................8 PERATING ELEMENTS ®... -
Page 3: Legal Notes
Date of Manufacture CE conformity marking in accordance with Guideline 93/42/EEC Do not put electronics in household waste. Manufacturer's address Application part Type BF Equipotential (potential equalization) 2.1.1 Type plate GA JFSM2400 2010-10-07 – Rev. 003 /English/ © Copyright joimax® GmbH 3/19... -
Page 4: Intended Use
To rule out any injury to the patient and/or user, we recommend using the joimax JFMS2400 for its intended use only. ® We would like to thank you for your confidence and wish you all success with the joimax JFMS2400. GA JFSM2400 2010-10-07 – Rev. 003 /English/ © Copyright joimax® GmbH... -
Page 5: Scope Of Delivery
1x DVI with a cable length of 3.0 m 1x VGA with a cable length of 2.0 m 1x Adapter BNC/Cinch ® If individual or several components are damaged or missing, please contact joimax customer services. Accessories (Section 14) 5 Safety and warning notes... -
Page 6: Safety And Warning Notes For The Joimax
Safety and warning notes for the joimax Flatscreen Monitor 24‘‘ ® Stand or install the device on a safe surface beyond patient reach. The joimax cart (JEST1290) or the JFMS24000 stand (FSMBV101) is ideally suited in this regard. The device is not explosion-proof and may not be used in the immediate vicinity of combustible gases such as anesthetic gases due to existing explosion hazard. -
Page 7: Commissioning
Y/C S-Video 2. Connect power cables on the device rear, now establish the connection to the mains. 3. Create potential equalization. ® 4. Connect the device with other desired compatible devices (e.g. joimax Camsource HD Twister, ® Vitegra pro, …) via the various signal inputs. -
Page 8: Operating Elements
The ON/OFF button now turns green. Shutting down the system ® The joimax JFMS2400 is shut down and moved to standby mode by simply pressing the ON/OFF button. The device is fully deactivated by pressing the power switch at the bottom of the device. -
Page 9: Display Settings
As the settings in the menu subitems are self-explanatory, the subsequent menu overviews are only displayed with a menu screenshot. The user can easily make the respective settings after opening the OSD menu subitems. GA JFSM2400 2010-10-07 – Rev. 003 /English/ © Copyright joimax® GmbH 9/19... -
Page 10: Input Select
...) manually or automatically via "Auto Color Adjust". These settings only concern the main image channel and not the "Picture in Picture" function. The "Advanced" section allows further color adjustments (Gamma, Color Space, Color Temp.) for image optimization. GA JFSM2400 2010-10-07 – Rev. 003 /English/ © Copyright joimax® GmbH 10/19... -
Page 11: Video Settings
7.3.5 Video Settings ® ® Video Settings are only displayed if a suitable video device (e.g. joimax Camsource HD Twister) is connected to one of the main image channels (VGA, DVI, S-Video, Composite Video) . 7.3.6 Scaling Adjustments The menu item "Scaling Adjustments" allows you to set positioning, scaling (Expand, Stretch, Aspect, 1:1), Picture Flip as well as Zoom (image size). -
Page 12: Cleaning
Guidelines and manufacturer declaration - electromagnetically emitted interference ® The joimax JFMS2400 is designed for operation in the electromagnetic environment specified below. The customer or operator using the joimax® JFMS2400 should ensure that it is operated in such an environment. Emitted interference Electromagnetic environment -... -
Page 13: Electromagnetic Compatibility, Interference Immunity
Guidelines and manufacturer declaration - electromagnetic interference immunity ® The joimax JFMS2400 is designed for operation in the electromagnetic environment specified below. ® The customer or user of the joimax JFMS2400 should ensure that it is operated in such an environment. - Page 14 Guidelines and manufacturer declaration - electromagnetic interference immunity ® The joimax JFMS2400 is designed for operation in the electromagnetic environment specified below. ® The customer or operator using the joimax JFMS2400 should ensure that it is operated in such an environment.
-
Page 15: Recommended Protective Distances
HF communication devices and the joimax JFMS2400 ® The joimax JFMS2400 is designed for operation in an electromagnetic environment with controlled ® HF disturbances. The client or user of the joimax JFMS2400 can help by avoiding electromagnetic disturbances in complying with the minimum distance between the portable and mobile HF ®... -
Page 16: Technical Data
10 – 90% non-condensing rel. humidity during transport 5 – 95% non-condensing Weight and dimensions ® joimax JFMS2400 12.5 kg; 625.6x431.2x92.32 mm Functions Picture in Picture GA JFSM2400 2010-10-07 – Rev. 003 /English/ © Copyright joimax® GmbH 16/19... -
Page 17: Service
11 Service ® Although the joimax JFMS2400 is maintenance free, regular service can contribute to early recognition of defects and faults and thus extend the operating life of the devices. ® ® Repair of the joimax JFMS2400 may only be carried out by joimax GmbH or by persons who are ®... -
Page 18: Fault Description And Possible Causes
13 Warranty and liability conditions ® The warranty period for the joimax JFMS2400 depends on the legal regulations of the specific country. Failure due to faulty material and/or poor processing must be rectified by the manufacturer free of charge within this period. -
Page 19: Accessories
JFMS2400. Detailed information is ® available from every joimax representative. The use of non-compatible external accessories may result in risks or injuries to patients and/or users. In this case, joimax® GmbH rejects any liability. 15 Annex 15.1 Customer service/manufacturer ® joimax , Inc.
