Baird SWM-STRLNK Manual

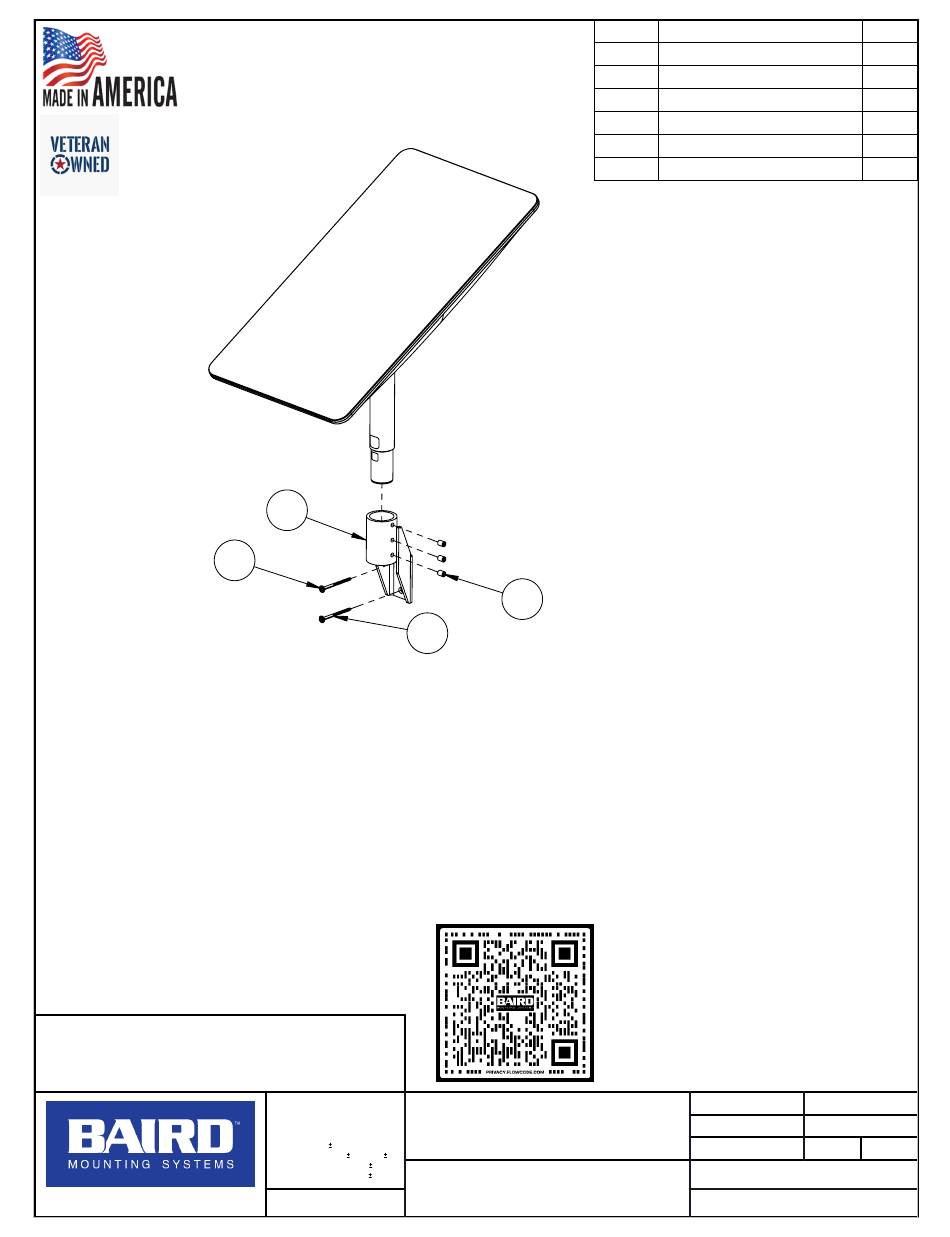

ATTACH THE SWM ARM TO A SUITABLE STRUCTURE WITH TWO RSS LAG SCREWS . MOUNT SHOULD BE
LEVEL/PLUMB. SILICONE IS PROVIDED TO SEAL LAG SCREW PENETRATIONS FROM MOISTURE AS
NEEDED.
PUT A DROP OF THREADLOCKER ON THE THREADS OF THE BOTTOM SET SCREW AND DRIVE IT IN FLUSH
WITH THE OUTSIDE OF THE SLEEVE. (DRIVE THE SET SCREWS WITH THE T-25 TORX BIT)
SET THE STARLINK MAST IN THE SLEEVE(MAST SLOT TOWARDS THE MOUNTING ARM). PUT A DROP OF
THREAD-LOCKER ON THE THREADS OF THE TWO UPPER SET SCREWS. EVENLY TIGHTEN DOWN THE TWO
SET SCREWS TO CLAMP THE STARLINK MAST .
NOTE: FOR GEN 3 ANTENNAS (SHIPPED WITH A KICKSTAND), THE SUPPLIED 1.31"ODx12" PIPE WILL BE
USED IN PLACE OF THE STARLINK MAST (SEE PAGE 2)
