Summary of Contents for Hardo OptiLine CBX Series

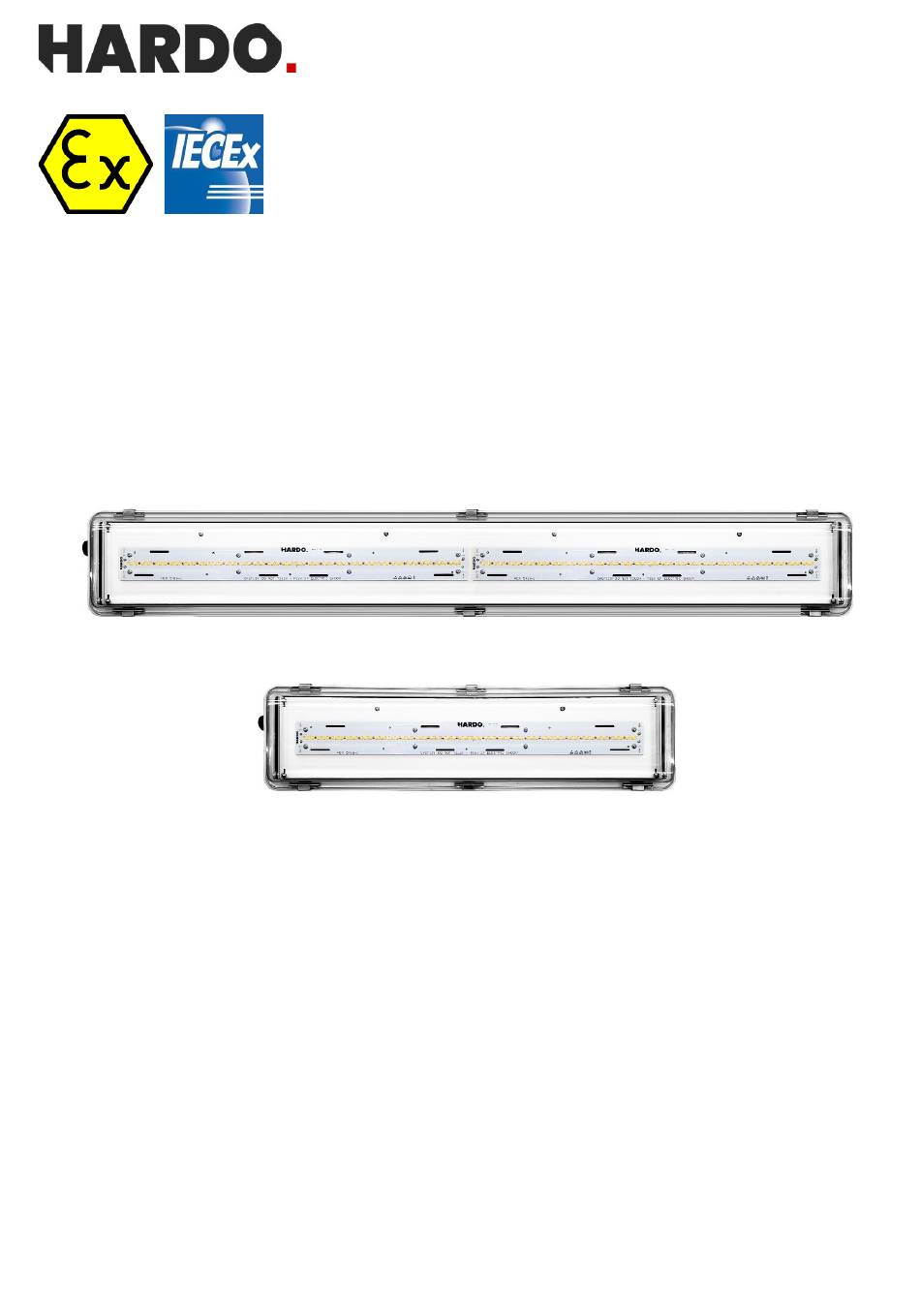

- Page 1 USE AND MAINTENANCE INSTRUCTION OF LIGHTING FIXTURE OptiLine **-*******CBX/CBY SERIES HARDO Czapski i Wspólnicy Sp. j. Instruction no: K-26190-PW-0007 Release date: 26.02.2024 ul. Spacerowa 5 Issue no: 1.2 32-083 Balice Strona 1 z 14...
-
Page 2: Table Of Contents
Table of contents GENERAL INFORMATION ........................3 Producer ............................. 3 Compliance with standards and regulations ................3 DEVICE DESCRIPTION ........................3 Possible configuration ........................4 Ex marking ............................5 SAFETY ..............................6 General precautions ......................... 6 Application ............................7 Other conditions for safe use ......................7 TRANSPORT AND STORAGE ...................... -
Page 3: General Information
1. GENERAL INFORMATION 1.1 Producer HARDO CZAPSKI I WSPÓLNICY SP. J. Ul. Spacerowa 5 32-83 Balice, Polska 1.2 Information on this manual WARNING: BEFORE USING THE DEVICE, READ THESE INSTRUCTIONS. This manual describes the rules for safe and correct handling of devices. The safety recommendations contained in the manual, accident prevention measures as well as general safety measures must be followed. -
Page 4: Possible Configuration
2.1 Possible configuration OptiLine luminaires **-*********CBX/CBY are available in two lengths. In the basic operation mode, they are powered by 230VAC, 50Hz. In the emergency mode, the luminaires are adapted to work with CEAG central battery systems. Luminaires are equipped with addressable modules CBX or CBY. These modules enable cooperation and monitoring of luminaires through central battery systems in Cewa-Guard- Technology/Star Technology systems. -
Page 5: Ex Marking
OptiLine 60-*******--- lighting fixtures are also available in a version with safety signs (pictograms). The use of pictograms requires the installation of diffusing lenses in accordance with the manufacturer's guidelines. Table 1 shows the basic parameters of the available pictograms. Pictogram parameters for the OptiLine 60-*******--- Length [mm] Width [mm]... -
Page 6: Safety
Ex mc Encapsulation protection. Ex db Protection of devices against ignition of dust by means of a "t" housing. The device can be used in the presence of explosion hazard of gases, vapours and mists of flammable liquids with air classified as explosion group IIA, IIB or IIC. -
Page 7: Application
It is not allowed to use a partially damaged device. If damage or malfunction is detected, the device should be taken out of service and handed over for repair to the manufacturer's facility or another entity authorized by the manufacturer. 3.2 Application WARNING: USE THE DEVICE ONLY FOR ITS INTENDED PURPOSE. -
Page 8: Mounting
Make sure that: • The luminaire is suitable for the hazardous area existing at the installation site; • The group of apparatus is suitable for gases, vapours and/or dust present at the installation site; • The temperature class and surface temperature of the device is suitable for gases, vapours and / or dust present at the installation site;... - Page 9 Figure 3. Acceptable mounting position Strona 9 z 14...
-
Page 10: Electrical Connection
6.1 Electrical connection 6.1.1 General requirements WARNING: INSTALLATION AND CONNECTION TO THE ELECTRICAL INSTALLATION SHOULD COMPLY WITH THE REQUIREMENTS OF THE PN-EN/IEC 60079-14 STANDARD. WARNING: IT IS FORBIDDEN TO MAKE ANY CHANGES TO THE FACTORY CONNECTIONS IN THE LUMINAIRE. The power cables have to be introduced into the right lighting system by using of certified cable glands. After making the cable connections, you need to clamp the cable gland by tightening the cable gland nut with a wrench. -
Page 11: Work In Emergency Mode
Figure 4. Possible connection diagrams of OptiLine **-*******CBX/CBY After making connections, the earthing efficiency should be checked in accordance with local regulations and the luminaire should be closed again, i.e.: • Set the top base (reflector) in the starting position; •... -
Page 12: Visual And Close Inspections
9.1 Visual and close inspections At least once every 1 months, a visual and close inspection of the lighting fixture should be carried out. During the visual inspection, luminaires do not need to be disconnected from the power source. The scope of the inspection should include in particular: •... -
Page 13: Disposal
WARRANTY CONDITIONS To read the warranty conditions, please refer to our General Terms and Conditions available at www.hardo.tech TECHNICAL DATA 13.1 Electrical and environmental parameters The basic electrical parameters of OptiLine **-*******CBX/CBY series luminaires are presented in Table 2. -
Page 14: Dimensions
13.3 Dimensions Basic dimensions of OptiLine luminaires are shown in Figure 5 and Table 4. Figure 5. Basic dimensions of OptiLine luminaires Type OptiLine 60-******* OptiLine 12-******* 1276 Table 4. Basic dimensions of OptiLine luminaires Strona 14 z 14...
