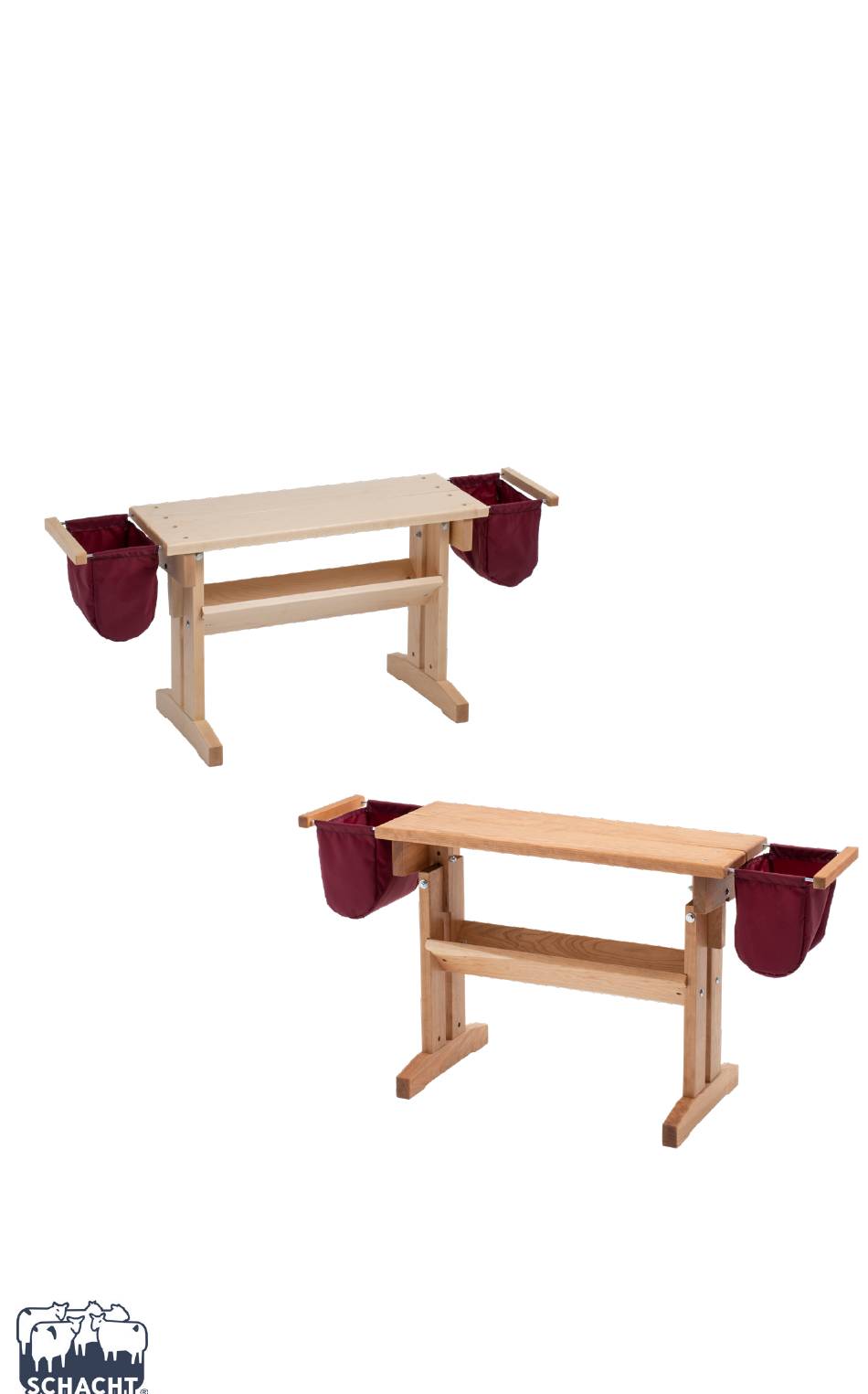

- Page 1 FL3801 FL3803 LOOM BENCH & BENCH BAG assembly SHOWN IN MAPLE AND CHERRY WITH OPTIONAL BENCH BAGS Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 303.442.3212 © 2022 Schacht Spindle Company, Inc. 11.22...
- Page 2 LOOM BENCH ssembly 1/4-20 x 2" Phillips truss head PARTS machine screws seat supports 5/16-18 x 6-1/2" hex bolts height adjusters 5/16 hex nuts left uprights #10 x 1-3/4" Phillips flat head right uprights sheet metal screws (extras bases included) middle supports bench seats TOOLS REQUIRED...
- Page 3 the carriage bolts into the wood. Repeat Fit the middle supports into the for the remaining height adjuster and seat grooved inner sides of a left upright support. and a right upright (Figure 2B). Attach them with 1/4-20 x 2" Phillips truss head From the inner side of the seat machine screws and 1/4-20 barrel nuts.
- Page 4 Raise or lower the height adjusters to Orient the bench seats with the your preferred height and reattach the countersunk holes up and the squared hex bolts as you did in Step 6. The height edges next to each other, so the rounded adjusters have holes at 1"...
