Summary of Contents for SVBONY Act20

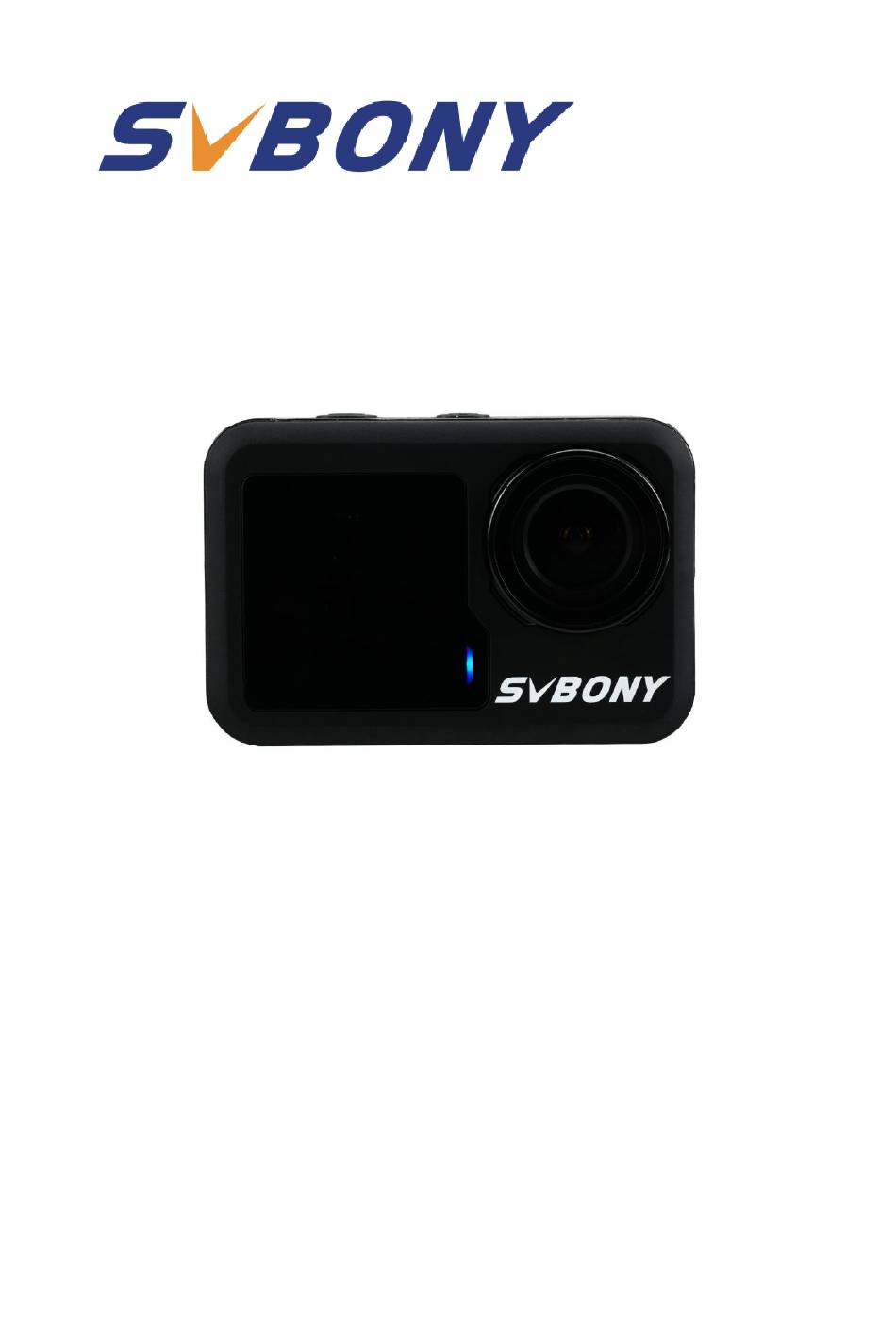

- Page 1 Product name：Action Camera Act20 User Manual...
- Page 2 . Before using this product, please be sure to pay attention to the following instructions: The Act20 Action Camera can be used up to 20 meters under water without using any extra waterproof case. However this feature requires extra care to increase your camera's life 1.
- Page 3 Thank you! Email: info@svbony.com Website: www.svbony.com Facebook: www.facebook.com/svbony CAUTIONS 1. Waterproof performance limitations •Although this unit is waterproof, please install the accessories correctly according to the instructions and ensure that all interfaces and covers are completely closed and well sealed.
- Page 4 6. Warranty Terms and Liability Statement •Any abnormal use or failure to follow the operating instructions may void the warranty. Svbony is not responsible for any damage caused by improper operation or violation of product usage regulations . *SVBONY is not responsible for any damage caused by improper handling or natural disasters such as fire, earthquakes, floods, etc.
-
Page 5: Product Overview
Product Overview 1 OK button 2 Mode button 3 Speaker hole 4 Magnetic charging interface 5 1.3-inch screen 6 Up button 7 Down button 8 Battery compartment 9 Bracket interface 10 2.0-inch screen Magnetic interface Use the provided magnetic charging cable to charge the camera, which has good EMI function and is waterproof and dustproof. -
Page 6: Specifications
Supports Micro SD cards with 16-256G capacity. Insert the Micro SD card as shown on the right. (Note: C10 should be selected or above standard high-speed card , please format the machine before use. ) Specifications product Action Camera description LCD screen Front screen: 2.0 inches Rear screen: 1.3 inches... - Page 7 Accessories & Assembly methods...
-
Page 8: Mode Key
Operations Guide Mode key 1. Press and hold the Mode button for 2-3 seconds to power on/off. 2. After turning on the phone, short press this button to switch between video/photography/menu modes. 3. Short press this key on the menu interface to return to the previous menu or exit. -
Page 9: Album Page
Touch operation instructions Shooting page Click to enter the album Click to enter the recording mode selection Click to enter the photo mode selection Swipe from left to right to switch video/photography mode Click to enter the menu Album page... - Page 10 Click to browse the video album Click to browse the picture album After clicking the option, click the file you want to delete and click this icon again to delete it. Click to exit the album Click to choose to play the video or preview the picture in full screen Menu page (The above two pages correspond to the pages for entering the menu in video mode and photo mode respectively)
-
Page 11: Menu Function Introduction
Click to select the photo settings menu Click to select the camera system settings menu Click to exit the menu Slide up and down on the right side of the screen to flip through the menu Menu Function Introduction Camera Settings Press the Mode key to switch to the settings interface, press the Mode key or the up/down key to select the main settings item "Playback, Video Settings,... - Page 13 1) Video Album: Select the video album icon, press the Mode key to enter the video file selection, press the Up/Down key to select, and press the OK key to play the video. When the video is playing, you can press the "OK" key to play/pause and the key to exit.
- Page 14 Video recording function Models with touch screen function can click the mode and resolution icons to open the mode selection interface Normal video In video recording mode, short press the OK button to start recording. At this time, the recording time starts to be recorded. Short press the OK button again, the camera stops recording and saves the file.
- Page 15 seconds, 30 seconds, 1 minute) and video resolution, and press the OK button to start the time-lapse recording. Slow Motion In the video recording mode , select slow motion recording. After entering the slow motion recording mode, the slow motion recording icon will be displayed in the upper left corner of the screen.
- Page 16 photo mode menu , and press the OK button to take pictures. Continuous shooting Select burst mode photo mode . After entering continuous shooting mode, the continuous shooting icon will be displayed in the upper left corner of the screen. The number of continuous shots (3 p/s, 7 p/s, 15 p/s, 30 p/s) can be set in the continuous shooting mode menu.
- Page 17 In video recording mode or photo taking mode, press the "down button" to turn on WIFI. The camera will enter the WIFI interface and display the WIFI name " Act20-XXXXXX " and WIFI password "12345678". Find the WIFI name corresponding to the camera in the WIFI settings of the phone and connect to WIFI.
-
Page 18: Canadian Ic Requirements
RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU ; the full text of the EU declaration of conformity is available at the following internet address: www. svbony .com... - Page 19 5.1 Disposal Environmental Note: Applicable to electronic products. When placing trash cans, both those with and without horizontal bars will be displayed. The crossed-out wheeled-bin symbol on your product, literature, or packaging reminds you that all electrical and electronic products, batteries, or accumulators must be taken to designated collection locations at the end of their working life. Do not dispose of these products as unsorted municipal waste.
- Page 20 •In the event of a battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice immediately. •If a radio or a battery has been submerged in water, please dry and clean it before use.
-
Page 21: Authorized Accessories List
If an extension cord must be used, make sure that: 11.1 Children’s Products WARNING:CHOKING HAZARD-Small Parts. Not suitable for children under 3 years old. 13.1 Authorized Accessories List •For a list of Retekess-approved accessories for your radio model, visit the website http://www.svbony.com... - Page 23 3 French environmentally friendly recycling labels:...
