Night Owl NOB3X-DG Instruction Manual

Night Owl NOB3X-DG Instruction Manual

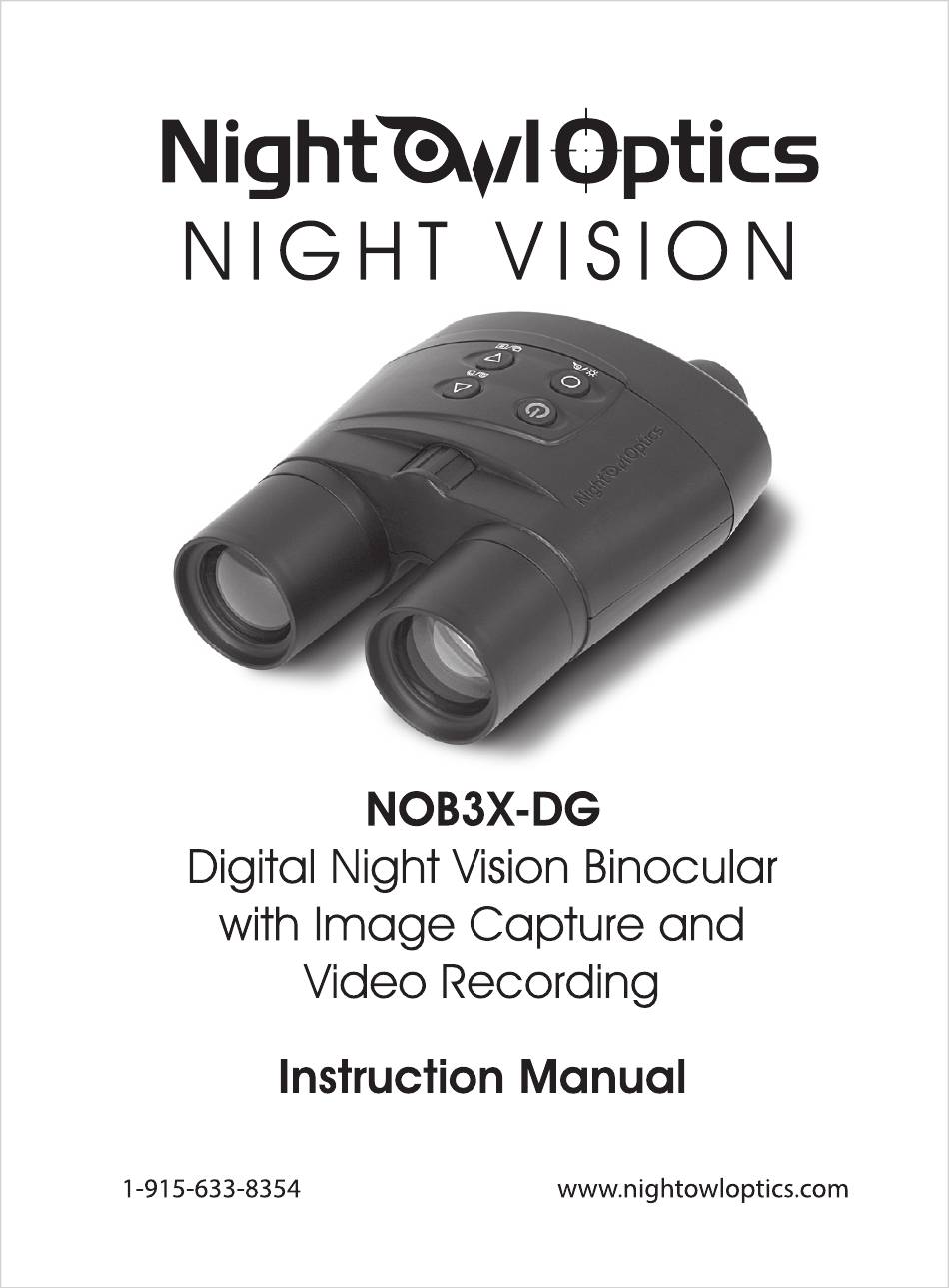

Digital night vision binocular with image capture and video recording
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOB3X-DG and is the answer not in the manual?

Questions and answers

Related Manuals for Night Owl NOB3X-DG

Summary of Contents for Night Owl NOB3X-DG

  • Page 3 Video recording Zoom Power down 9-10 Quick reference Viewing photos Set date and time Select the display language Power on Eyepiece focus Objective lens focus Taking photos...
  • Page 4 Do not drop. Keep the device dry and protect it from water and humidity. Do not store in extreme high or low temperature. Do not expose to or store in dusty, dirty areas. This may cause damage to the moving parts. Remove batteries for storage.
  • Page 6 Photos Objective Lens Tripod Mount Eyepiece with adjustable diopter and interpupillary adjustment...
  • Page 7 Approximately 120m (~131 yards) 8GB * included (accept up to 32GB) Sensor Type Approximately 15.3 oz (435.4 grams) with batteries...
  • Page 8 Image capture (photos) Recording time Video time remaining...

  • Page 9: Quick Reference

    Quick Reference Focus each eyepiece inde- pendently until the icons on the screen are sharp & in focus, then adjust the objective until your target is in focus. Taking photos...
  • Page 10 Quick Reference Press again to stop recording. The Night Vision Binocular will start a new file every 10 minutes. Press and hold for 2 seconds to trigger 2x digital zoom. Press-and-hold again for 2 seconds to resume. Before you start using the Night Vision Binocular and Camera/Video Recorder, make sure the batteries and microSD card are installed properly.
  • Page 14 1. Power on Press and hold for 2 seconds to turn on or off. Slide the eyepieces together or apart to align with your individual eye position.

  • Page 15: Taking Photos

    3. Eyepiece focus Focus each eyepiece independently until the icons on the screen are sharp and in focus. Rotate the objective lens until the target image is seen sharp and in focus. Taking photos Press to capture image. The image will be saved on the micorSD card. NOTE: Bottom right corner indicates remaining photo capacity.
  • Page 16 The device will start a new file every 10 minutes. There are 4 IR modes available: low, medium, high and IR off. Press once to change to the next level of intensity.
  • Page 17 Zoom Press and hold for 2 seconds to trigger the 2x digital zoom. Press and hold for 2 seconds to disengage zoom. There are 3 frame-rate modes available: 30 fps, 15 fps and 8 fps are attanged in cyclic order. Tip: Use lower frame rate for darker conditions or more distant objects.

  • Page 18: Power Off

    Press and hold to toggle between dim and bright screen. In high ambient light environment, use low brightness setting. Power off Press and hold for 2 seconds to turn off. The device will enter sleep mode when left idle for 5 minutes; press any button to resume operation.
  • Page 19 Press to display menu screen. Select an item using the buttons. Press to confirm.

  • Page 20: Viewing Photos

    Viewing photos Press to display menu screen. Press and hold for 2 seconds. Press to confirm.
  • Page 21 Press to display menu screen. Enter video viewing to select the “Video” tab and press to enter the video directory. Select video viewing to select the video file, press to view. Press to freeze a frame while viewing and press it again to resume. Press to go back.
  • Page 22 Press to display menu screen. Select Date/Time to select an item, press to confirm selection. The item will start flashing. to increase or decrease the number, press to confirm.

  • Page 23: Selecting The Display Language

    Selecting the display language Press to display menu screen.
