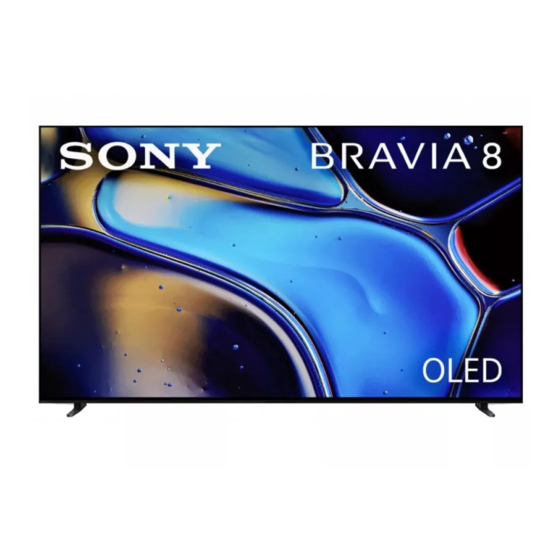

Sony K-65XR80 Reference Manual

Television
Reference Guide
K-65XR80 / 55XR80
https://rd1.sony.net/help/tv/lusltn1/h_usltn/
© 2024 Sony Corporation
5-057-731-11(1)
1
2
 TV's rear cover




1 1
2
*
2
(mm)

K-65XR80 1 442
K-55XR80 1 223
K-65XR80
10 – 12 (mm)
M6
 Wall-Mount Bracket
K-55XR80
Optional Camera and Microphone Unit (not supplied) Cable Management
The remote control shape, layout, availability
*1*2
and function of remote control buttons may vary
depending on your region/country/TV model/
TV settings.
 (Power)
MIC
TV: Display TV channel list or switch to input.
(Quick settings):
Display Quick Settings.
(Input select): Display and select the
input source, etc.
(Control menu): Display the Control
menu.
 /  /  /  /
 : On screen menu
navigation and selection.
(Back)
(Home)
(Google Assistant / Microphone):
*3
Google Assistant* 4 * 5 or voice search* 5
 + / – (Volume)
(Mute)*
6
CH + / – (Channel)
(Dashboard): Display Dashboard.
(Guide): Display the digital program
*2
guide of TV or Cable/satellite box* 7 .
* *
1 1
(mm) (kg)
   
K-65XR80 1 442 829 37 22.3
K-55XR80 1 223 706 37 17.1
*1 (Approx.)
2
1
*
1 1
(kg)
1 2  1 2 
855 909 248 1 244 584 23.2
732 786 248 1 075 584 18
*1 (Approx.)
 App buttons
*1 The remote control backlight will illuminate
when the light sensor detects the ambient
light is low. Automatic illumination of the
backlight can be turned off.
*2 The remote control is rechargeable. The LED
indicator will show charging status (red). Use
the supplied USB Type-C® cable to charge the
remote control using your own USB AC
adapter.
*3 The buzzer will emit a sound either when you
use the remote control finder function or when
you press the power button on the remote
control when the battery is low. Refer to the
online Help Guide for details.
*4 Only for limited region/country/model/
language.
*5 Google Assistant or voice search requires an
Use
Internet connection.
.
*6 Accessibility shortcut is available by pressing
and holding (Mute).
*7 [Cable/Satellite box setup] setting is required.
