Hybrid DSP24 User Manual

Professional speaker management processor

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

DSP24

PROFESSIONAL SPEAKER

MANAGEMENT PROCESSOR

REV Z0 02-10-2023

Table of Contents

Need help?

Do you have a question about the DSP24 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hybrid DSP24

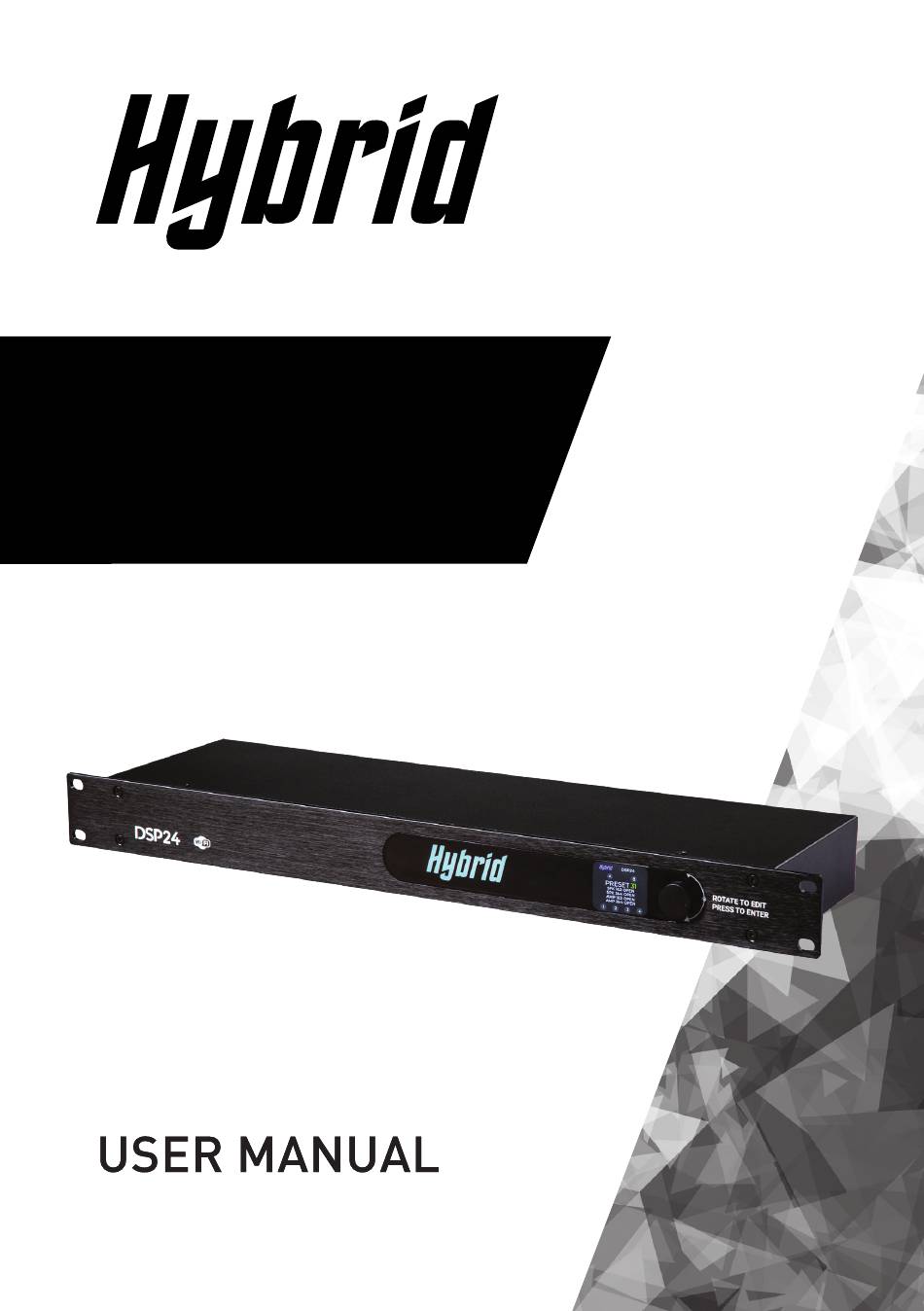

Page 1 DSP24 PROFESSIONAL SPEAKER MANAGEMENT PROCESSOR REV Z0 02-10-2023...
Page 2: Table Of Contents
Selecting and Loading Presets..........11 Setting Up User Presets 01 to 03 (Category 1)....11-12 Home Page.................. 13 Instructions on How to Connect the DSP24 to a Smart Device or Computer..........13 Block Diagram................14 Limiter guide table for Hybrid Amplifiers........15 Specifications................16...
Page 3 USER MANUAL – HYBRID DSP24 PROFESSIONAL SPEAKER MANAGEMENT PROCESSOR USER NOTES: PAGE 3 PAGE 3...
Page 4: Important Information
IMPORTANT INFORMATION Symbol to alert the operator to follow Symbol warning the operator that important operating instructions uninsulated dangerous voltages are and precautions detailed in this present within the enclosure that may document. pose a risk of electric shock. Save the carton and packing material even if Do not apply an input signal that is much the processor has arrived in perfect greater than that which is required to achieve...
Page 5: Introduction
INSTALLATION AND MOUNTING The Hybrid DSP24 fits into the space of a 19” rack 1 unit (approx. 45 mm in height). It can be mounted in a standard 19” rack unit using the mounting holes on the processor’s front panel, or, because of its rubber feet, it can be left freestanding.
Page 6: Front Panel Controls And Features
LCD DISPLAY A full colour 1.5” LCD display used for setting up presets 01 to 03 and loading Hybrid amplifier and speaker presets 04 to 30 in conjunction with the jog wheel. The Home Page of the display indicates the loaded preset number.
Page 7: Back Panel Controls And Features
POWER ON-OFF SWITCH Main power switch, which turns the processor ON or OFF. Once the processor is switched ON, the Hybrid logo (1) and LCD screen (2) on the front panel will illuminate. XLR Configuration for both the INPUTS and OUTPUTS: Pin 1 –...
Page 8: Connecting Inputs
(+) pin. SETUP Now that you have installed your Hybrid DSP24, correctly connected both inputs to a mixer or pre-amplifier and connected the four outputs to the correct amplifiers, you are ready to set up your system for optimal performance and protection.
Page 9: User Presets 04 To 30 Description (Category 3)
USER MANUAL – HYBRID DSP24 PROFESSIONAL SPEAKER MANAGEMENT PROCESSOR USER PRESETS 04 TO 30 (CATEGORY 3) NON-EDITABLE PRESETS Preset Output Amplifier Speaker Preset Output Amplifier Speaker 1 & 2 B2400 2 x LB18 1 & 2 B4000 2 x HP218 3 &...
Page 10: Connecting The Dsp24
CONNECTING THE DSP24 With the DSP24 off: a) Connect the two inputs of the DSP24 to the outputs of a mixer or pre-amplifier using balanced XLR cables. b) Connect outputs 1 and 2 (BASS) to the inputs of the bass amplifier.
Page 11: Selecting And Loading Presets
USER MANUAL – HYBRID DSP24 PROFESSIONAL SPEAKER MANAGEMENT PROCESSOR SELECTING AND LOADING THE PRESET To change the preset, the process is similar to setting the password. Press the jog wheel to get to the preset menu, then rotate the jog wheel until the desired PRESET number is reached.
Page 12 A short press of the jog wheel will navigate the screen to the LIMITER page. If you are using Hybrid A MK4 series or Hybrid B MK6 series amplifiers, a LIMIT reference table is supplied on the processor and at the back of this user manual under “at the back of this user manual (page 15) for quick and easy setup.
Page 13: Home Page
With the DSP24 off, press the jog wheel and switch the DSP24 on while still pressing the jog wheel. The LCD screen will display “Please, release switch”, and after releasing the jog wheel, the screen will display “Wi−Fi ON”.
Page 14: Block Diagram
BLOCK DIAGRAM PAGE 14 PAGE 14...
Page 15: Limiter Guide Table For Hybrid Amplifiers
USER MANUAL – HYBRID DSP24 PROFESSIONAL SPEAKER MANAGEMENT PROCESSOR PAGE 15 PAGE 15...
Page 16: Specifications
SPECIFICATIONS Analogue inputs (A and B) Electronically balanced XLR Analogue outputs (1, 2, 3 and 4) Electronically balanced XLR Maximum RMS input level +20 dBu Input impedance 20 kΩ @ 1 kHz Dynamic range 100 dB Resolution 24-bit Delta-Sigma Maximum RMS output level +20 dBu Dynamic range 104 dB typ.
