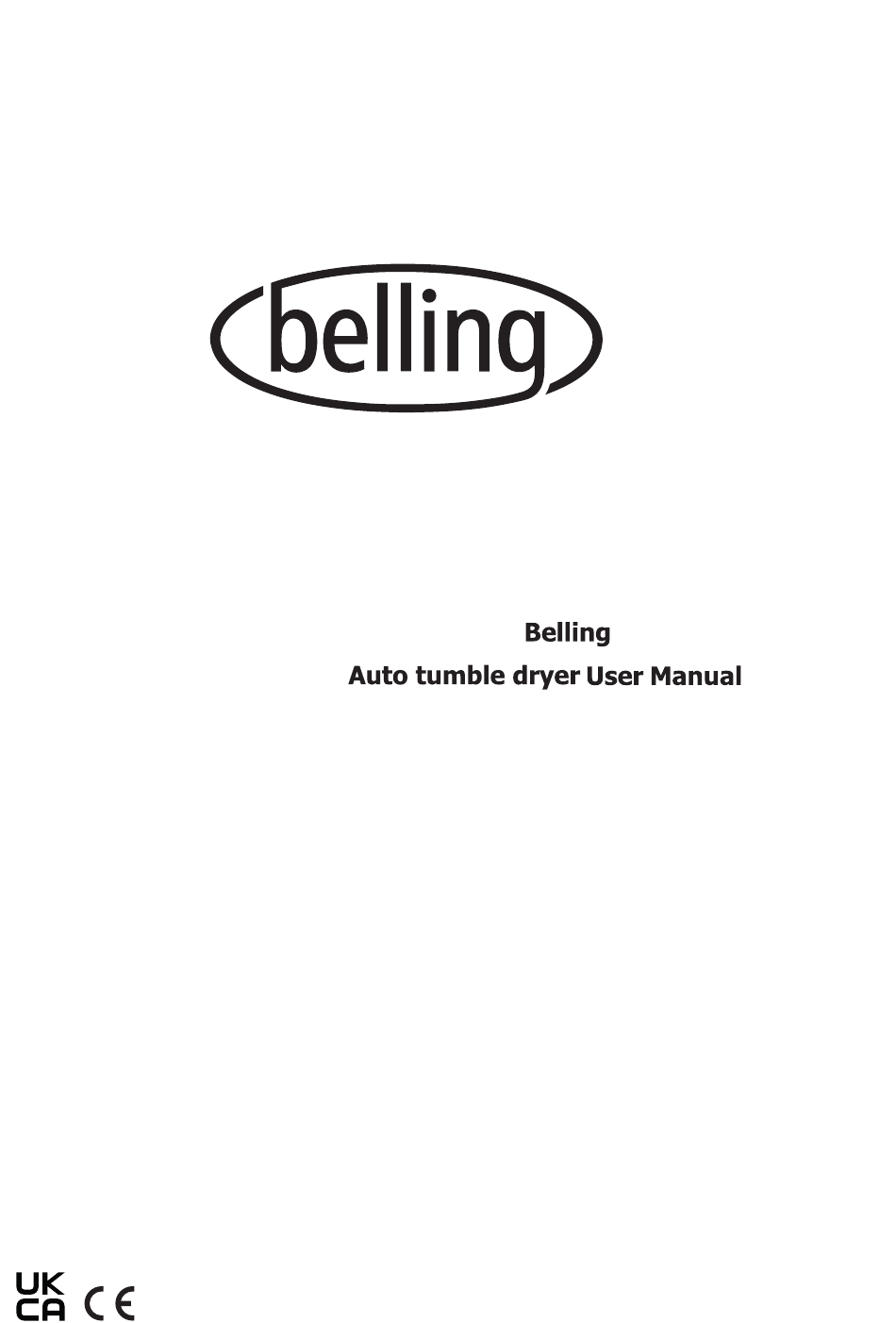

- Page 1 BFTD7V REV 1...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ........... INSTALLATION Product Description ..........Installation ............. OPERATION Quick Start .............. Before each Drying ..........Control Panel ............Drying Programmes Table ......... MAINTENANCE Cleaning and Care ........... Trouble Shooting ............. Technical Specification..........Product Fiches ............ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions • The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 SAFETY INSTRUCTIONS • Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer. • Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
- Page 5 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Rated capacity Model 7.0kg BFTD7V...
- Page 6 SAFETY INSTRUCTIONS • Power supply and grounding • The dryer employs alternating current with the rated voltage and frequency. When the voltage fluctuates between 6% of rated voltage, the dryer can work normally. • A special power socket with a capacity 10A for the dryer had better be set beside the ≥...
- Page 7 SAFETY INSTRUCTIONS • Precautions Install or store where it will not be exposed Keep area around the exhaust opening and to temperatures below freezing or exposed adjacent surrounding areas free from the to water or weather, which could cause accumulation of lint, dust and dirt. An permanent damage and invalidate the obstructed port might reduce the airflow.
- Page 8 SAFETY INSTRUCTIONS Do not allow children on or in the appliance. Do not use the machine when your hands are Close supervision of children is necessary wet. when the appliance is used near children. The exhaust air must not be discharged into Do not store plastic, paper or clothing that a flue which is used for exhausting fumes may burn or melt on top of the dryer during...
-
Page 9: Installation
INSTALLATION Product Description Top board Side panel Control panel Drum Door lock Power plug Door Lint filter Exhaust duct Front panel Note: Please see the products you purchased in kind prevail. Installation >10cm Installation Position Selection • Dryer should be placed in a ventilated area with not less than 10cm distance from the wall. - Page 10 INSTALLATION Level Adjusting • Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet with a tool. Note! If the dryer is not placed horizontally (tilt angle more than 2°), the dryer may not work properly.
-
Page 11: Operation
OPERATION Quick Start Note! Before use, please make sure the tumble dryer is installed properly. Before Drying plug in load close the door Drying select function start or default After Drying Buzzer beep or " :00"on display. unload clean filter unplug... -
Page 12: Before Each Drying
OPERATION Before each Drying 1.Before drying, thoroughly spin the laundry in a washing machine. High spin speed can reduce the drying time and save energy consumption. 2.For uniform drying result, sort the laundry according to fabric type and drying programme. 3.Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc. -
Page 13: Control Panel
OPERATION Control Panel On/Off Start/Pause Dryness Level Program (Mix/Cotton/Synthetic/1HR)) (Extra/Standard/Less) Anti-Crease Note! 【 】 • Press the On/Off button to switch on the machine • Press the 【Program】 button to select the desired programme. • Press the 【Dryness Level】button to select the desired dry grade. •... -
Page 14: Drying Programmes Table
OPERATION Drying Programmes Table Programme Application/Properties Load Extra For single or multi-layer cotton laundry to be dried completely direct storage. Cotton 7.0kg Standard Less For single layer cotton laundry to remain damp ironing. Extra 3.5kg For thick or multi-layer mixed fabrics to be dried completely . Standard 3.5kg For mixed fabrics from cotton and synthetics. - Page 15 Residual Model Consumption Time Humidity 7.0kg 1000rpm / 60% Cotton Standard 142min 4.49 BFTD7V 3.5kg 1000rpm / 60% 75min Cotton Standard 2.27 Synthetic Standard 3.5kg 800rpm / 40% 47min 1.45 Note! • Thick or multi-layered fabrics, e.g. jackets etc., are not easy to dry. You had better choose Cotton Extra programme.
-
Page 16: Maintenance
MAINTENANCE Cleaning and Care Filter clean • Clean the lint filter after each use. Remove the filter by pulling it straight up. • Filter cleaning Use a wiping cloth or your hands to remove lint. • Install filter If the filter is cleaned by damp cloth or water, please dry thoroughly before installation. - Page 17 MAINTENANCE Safety reset 1. This dryer has a safety cut out switch which is activated by temperature. 2. If your dryer is not heating this button must be reset, before the dryer can heat again. You may need to wait 10 minutes for cooling down. The safety reset button is on the backboard.
-
Page 18: Trouble Shooting
MAINTENANCE Trouble Shooting Problem Cause Solution • Power cut off. • Wait for restore of electricity. • The power plug is not • Check the power socket,make sure the plug Dryer does plugged tight. is inserted tightly. • The dryer is overloaded. •... -
Page 19: Technical Specification
PCB failure Please contact your local service center if the problem occurs. Temperature Sensor is short Led【Extra】flashing circuited or PCB fault Technical Specification Model BFTD7V Dimension 555*595*840(mm) (L*W*H) Rated input power 2000W Rated voltage 220-240V~ Rated frequency 50Hz Weight of product 31.5kg... -
Page 20: Product Fiches
MAINTENANCE Product Fiche Model BFTD7V Rated Capacity Dryer Type Air-Vented Energy efficiency class ❶ Weighted annual energy consumption (AE ) 519.1kWh / year Automatic or non-automatic Automatic EU Ecolabel Energy consumption of the standard cotton programme 3.22kWh Weighted energy consumption of the standard cotton programme at full and partial load Energy consumption of the standard cotton programme at full load 4.49kWh... - Page 21 Your Belling Appliance is guaranteed against breakdown for an initial period of 12 months from date of purchase (for guarantee conditions please refer to your instruction booklet) Your standard one year guarantee is extended for an additional 12 months when you register the product within 28 days of purchase with Glen Dimplex Ireland.
