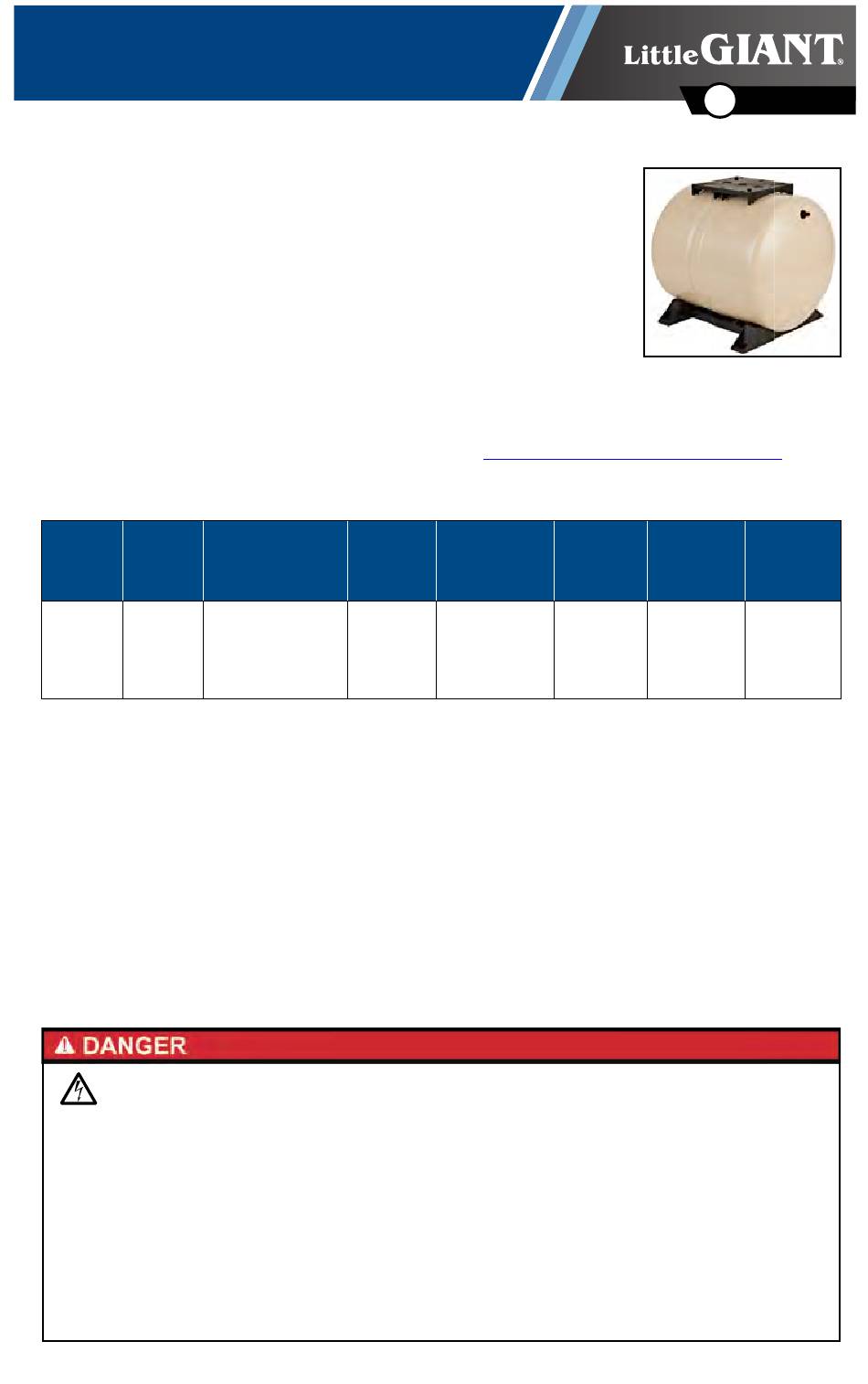

Little Giant LG14AH Owner's Manual

OWNER'S MANUAL
Pressure Tank System
The pressure tank is a closed container. The durable steel shell is constructed in
a deep-drawn process for extra strength. Welding eliminates interior rough
spots and sharp edges, which prevents damage to the diaphragm. The tank
uses a membrane diaphragm to completely isolate compressed air from the
water. The tank is certified to NSF 61 for safe drinking water. An air charging
valve allows the installer to change the air pressure when the tank is empty.
The Little Giant pressure tank leaves the factory tested and pre-charged to 20
psi. Because air and water are permanently separated, an air volume control is
not required.
This product is covered by a Limited Warranty for a period of 5 years from the date of original purchase by
the consumer. For complete warranty information, refer to www.littlegiant.com/support/warranty/.
Specifications
Model Item
LG14AH 558936
SAFETY INSTRUCTIONS
This equipment should be installed and serviced by technically qualified personnel who are familiar with
the correct selection and use of appropriate tools, equipment, and procedures. Failure to comply with
national and local electrical and plumbing codes and within Little Giant recommendations may result in
electrical shock or fire hazard, unsatisfactory performance, or equipment failure.
Know the product's application, limitations, and potential hazards. Read and follow instructions carefully to
avoid injury and property damage. Do not disassemble or repair unit unless described in this manual.
Refer to product data plate(s) for additional operating instructions and specifications.
Failure to follow installation or operation procedures and all applicable codes may result in the following
hazards:
Risk of death, serious injury, or property damage due to explosion, fire,
or electric shock.
• Do not use to pump hot water or flammable, combustible, or explosive fluids such as gasoline, fuel oil, kerosene,
etc.
• Do not use in explosive atmospheres or hazardous locations as classified by the NEC, ANSI/NFPA70.
• This is a diaphragm-type pressure tank. The tank is designed for operation on well water systems limited to the
maximum operating pressure indicated on the tank. Never exceed the maximum operating temperature and/or
the maximum allowed pressure indicated on the tank. A 75 psi safety relief valve must be installed. Any adjust-
ment to the pre-charge must be done prior to installation and at ambient temperature. Do not adjust the pre-
charge of this tank if the product is corroded or damaged or shows any signs of diminished integrity. Do not
adjust the pre-charge of the tank with the system under pressure.
Gallons
UPC
(liters)
14.0
0 01012 102052 8
(53.0)
Draw down
@ 30-50 Fixtures
psi (gal)
4.8 4
EN
English
System
Type
Connect
3/4"
MNPT
Horizontal
Straight
304 SS
