Calibre UK ELITE 7WL Manual

Wireless cp aa receiver, carplay; android auto
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WIRELESS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELITE 7WL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Calibre UK ELITE 7WL

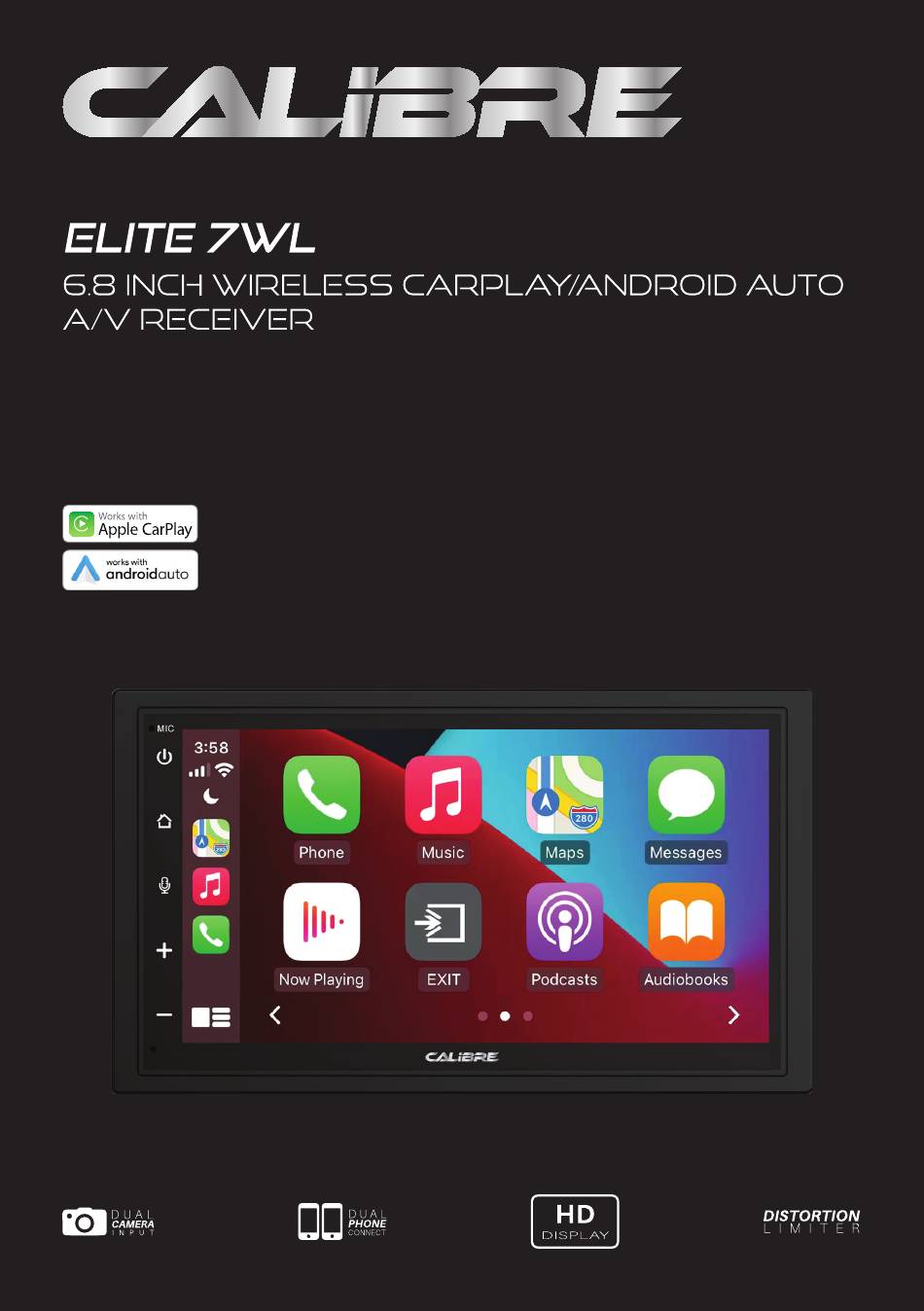

  • Page 1 WIRELESS...

  • Page 2: Table Of Contents

    Contents Safety notes ..............3 Sound Settings ............17 Symbols used ..............4 Volume distribution (fader/balance) ......17 Road safety ................4 Equalizer ................18 General safety notes ............4 Time Alignment ..............19 Front Panel Controls ..........5 Camera Input ............20 Placing the device in operation .......5 Switching on/off with the POWER button ....

  • Page 3: Safety Notes

    Safety notes This car sound system is manufactured according to the state of the art and established safety guidelines. Even so, dangers may occur if you do not observe the safety notes in these instructions. These instructions are intended to familiarize you with the most important functions. Read these instructions carefully and completely before using this car sound system.

  • Page 4: General Safety Notes

    General safety notes Observe the following note to protect yourself against injuries: Use as directed. As with all Capacitive Touchscreens, if your fingers are wet or sweaty, it will not function properly. Repairs and installation, if necessary, should be performed by a specialist. Installation instructions It is recommended to only have this unit installed by a professional who specializes in vehicle audio system installations.

  • Page 5: Main Menu (Home)

    Muting the car sound system (Mute) Briefly press the button to mute the device or to reactivate the previous volume. Main menu (Home) In the main menu, press the buttons on the touchscreen to call up the different sources and operating modes. In the current source, pressing the button will return you to the Main menu.

  • Page 6: Home Menu

    Home Menu Apple CarPlay CarPlay is a smarter, safer way to use your iPhone in the car. CarPlay takes the things you want to do with your iPhone while driving and puts them right on your car's built-in display. You can get directions, make calls, send, and receive messages, and listen to audiobooks and music, all in a way that allows you to stay focused on the road.

  • Page 7: Siri

    Siri Press and hold Apple Home key on car product screen or Side Button on iPhone for using Siri voice assistant, such as issuing a call, playing music, opening the map and other voice commands. When iPhone is connected, enable Siri by steering wheel control. This function is only available on cars equipped with the equivalent key.

  • Page 8: Bluetooth Mode

    Connect via Bluetooth Establish Bluetooth connection between the car unit and your Google phone (refer to the previous chapter "Bluetooth mode"). Agree with the terms provided by Google. Please turn off the Wi-Fi function in the settings menu of the car unit before connecting your phone via Bluetooth. During the first start up and setup of the Android Auto app, the Maps, Music, Google App will install/update automatically.
  • Page 9 Tuner mode On the Home menu page touch “Tuner”. The following will appear- 1. Access the list for stored FM, AM, or favourite stations. 2. Tune to a station or select a stored station. 3. Switch between FM and AM. 4.
  • Page 10 Select Frequency Band Touch FM/AM (3) Switch between Stereo or Mono FM Touch Switch between Local and Distant FM In FM band, touch Select LOC for local reception. Only strong FM stations will be received. Select DX when signals are week. This is ideal in country regions when it can be difficult to find stations.

  • Page 11: Registering Bluetooth Devices

    Registering Bluetooth devices The Bluetooth® function allows pairing of mobile phones and BT media playback devices with the car sound system. When you pair a mobile phone with the car sound system, you can make phone calls with the built-in hands-free function. You can access the lists of dialed numbers and the phone book of the registered cell phone.
  • Page 12 Phone mode See “Registering Bluetooth devices” if your device has not been paired to this unit. In the main menu, touch “Phone” and the following will appear- Depending on your paired device, call history and contacts will automatically be visible when selected.
  • Page 13 To Mute a call Touch To use the dial pad while on a call, touch In history mode: Swipe up or down to search Outgoing calls Incoming calls Missed calls. In private mode: when a call needs to be transferred to the mobile device touch to switch to the mobile device and to return to handsfree mode.
  • Page 14 BT / Phone Settings From the Home menu, touch “Settings” → “Bluetooth” to access the following options- “Connection” for Bluetooth On/Off “Auto Connect” to automatically connect to your BT device. “Auto Answer” if you would like the unit to automatically answer calls. “Device Name”...

  • Page 15: Usb Media Playback

    Bluetooth Audio mode See “Registering Bluetooth devices” if your device has not been paired to this unit. In the main menu, touch “BT Audio” and the following will appear- The music will automatically play. Touch to Play or Pause audio. Touch to skip to the next track or previous track.

  • Page 16: Usb Data Carrier

    The music will automatically play. Touch to Play or Pause audio. Touch to skip to the next track or previous track. Alternatively swipe back or forwards Touch and available sources from BT Audio and USB will display. Touch to select; Repeat All, touch again for Repeat one track, or touch again for random playback.

  • Page 17: Media Player Mode

    Media Player mode In the main menu, touch “Media Player” as a quick way to enter BT Audio and USB modes. All functions are as indicated in their relative sections above. __________________________________ AUX mode In the main menu, touch “AUX” to listen and/or view what is being played by the connected device.

  • Page 18: Equalizer

    Subwoofer The level and filter can be adjusted for the Sub pre-amp output. Select Subwoofer On or Off by toggling the Subwoofer Filter Use this to filter out higher frequencies that your subwoofer/s are not designed to operate effectively at. This will (if desired) filter out vocals improve the low frequency performance. Select the most suitable frequency cut point to suit your connected equipment.

  • Page 19: Time Alignment

    Time Alignment Allows you to precisely adjust the time that each speaker/subwoofer is heard. Audio will be more focused and linear at the desired listening point. Loudness Activate to enhance low and high frequencies that are difficult to hear at low volume levels. Internal Amp To turn ON if using the internal amplifier.

  • Page 20: Camera Input

    ___________________________________ Camera Input Front Camera Power This device features front and rear camera inputs. Activate the power to the front camera in the setting menu if required. Rear/Front Camera Mirror If activated, the camera image shown on the screen is mirrored. Set as desired. Parking Assist Guide Activate this feature if you prefer to see the parking guidelines.
  • Page 21 NOTE: Once installation and the above settings have been completed- If a rear camera is connected, the image is displayed on the screen when the rear gear is engaged. From the Home menu, touch “Camera” to see connected camera/s. WARNING- Do not rely solely on the camera when reversing. Always be alert to your surroundings. General Settings Language Touch to select English (Default), Spanish.

  • Page 22: Steering Wheel Control (Swc)

    SWC (Steering wheel control) Volume – Call Hang up. Select SWC in the Settings menu to enter Next SWC setting menu. Previous Voice assistant Play/Pause Mode Mute Select on the display a function and then press the corresponding function on the steering wheel.
  • Page 23 Display SCREEN Illumination Control Touch ON so that when the vehicle lights are turned on, the screen brightness and panel button lights will automatically dim. Touch OFF to de-activate this feature. NOTE: To enable night detection and auto dimming, make sure the illumination input wire from the supplied wire harness is connected to your vehicle's parking light.

  • Page 24: Settings

    Button Colour Six preset colours can be chosen for the touch buttons. To select a preset colour, make sure Multi Colour Mode feature is turned off. Multi Colour Mode Will cycle through all colours on the touch buttons. Default setting is ON. UI SETTINGS Wallpaper Change the wallpaper for the home, radio, or media playback screens from the choices available.

  • Page 25: Connection Diagram

    Connection diagram Connection diagram Connection diagram NOTE: Only use 2-8 Ω speakers. Do not bridge any of the channels. If the speaker outputs are not being used, go to Settings → Audio→ set Internal Amp to OFF. NOTE: Only use 2-8 Ω speakers. Do not bridge any of the channels. If the speaker outputs are not being used, go to Settings →...
  • Page 26 A separate interface might be needed for your vehicle. For Android Auto setup, the parking brake wire MUST be connected. Video and or photos cannot be viewed while driving. The vehicle must be stationary, and the parking brake applied to enable viewing. Every vehicle has a different type of parking brake connection;...
  • Page 27 NOTE: Never rely solely on the rear-view camera; always check your surroundings before proceeding. Handsfree Mic placement- areas are recommended for the best microphone performance. Do not place the microphone in front of or near air vents. The front of the microphone must not be obstructed. The Microphone should be secured.

  • Page 28: Troubleshooting

    Troubleshooting What appears to be trouble is not always serious. Please check the following points before calling a service center. Problem Cause Corrective action General Unit fuse blown. Install new fuse with correct rating. Unit cannot power on Car battery fuse blown. Install new fuse with correct rating.
  • Page 29 This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited. Windows® and Windows Media® are registered trademarks of the Microsoft Corporation in the U.S.A. and/or other countries. This product is protected by certain intellectual property rights of Microsoft.
