- Page 1 Digital Video Wall Control Box ID# 902 (with RS232 & VGA/HDMI upscale) Operation Manual...
- Page 2 Introduction The Multi-Screen Video Wall Control System is ideal for advertising, entertainment and information display. The device allows users to display HDMI or PC sources to multiple LCD monitors, while thanks to the built-in RS-232 control you are able to fully customize the LCD panels giving you complete control over 2×2, 3×3, 4×4 and 5×5 video walls.

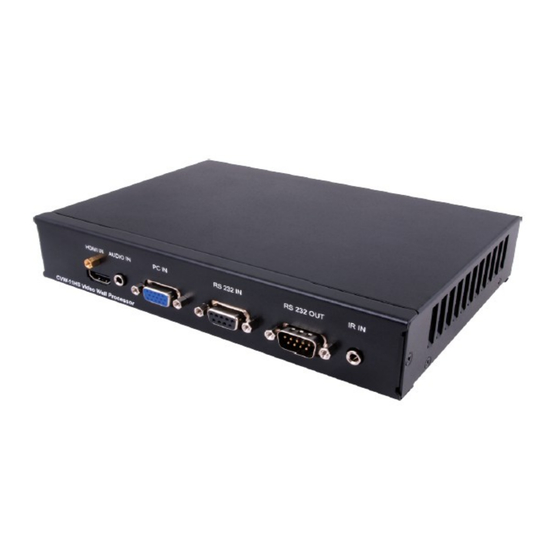

- Page 3 Operation Controls and Functions Front Panel ① HDMI IN: This slot is to connect from HDMI splitter or matrix with input source signal. ② Audio IN: This slot is to connect with the audio signal from the source equipment with 3.5Ø...
- Page 4 OSD Menu STANDARD ON/OFF R OFFSET 0~255 (118) G OFFSET 0~255 (116) B OFFSET 0~255 (118) PICTURE R GAIN 0~255 (098) MENU G GAIN 0~255 (098) B GAIN 0~255 (098) CONTRAST 0~63 (50) BRIGHTNESS 0~63 (40) LANGUAGE ENG / T.CHINESE MAIN (ENG) MENU...
- Page 5 Setup Menu LANGUAGE: There are two language options available in the OSD menu, English and Traditional Chinese. HDMI SOUND: This option is to set the HDMI output audio ON or OFF. STANDARD: Setting this option to ON will force the system to set all the options in the the setup menu to the default value (as indicated in the brackets).
- Page 6 RS-232 Protocol Pin Definition RS-232 IN RS-232 OUT Pin 1 Pin 1 Pin 2 Pin 2 Pin 3 Pin 3 Pin 4 Pin 4 Pin 5 Pin 5 Pin 6 Pin 6 Pin 7 Connect to Pin 8 Pin 7 Connect to Pin 8 Pin 8 Connect to Pin 7...
-
Page 7: Specifications
Specifications Input Ports 1xHDMI, 1xPC, 1xRS-232 (female jack), 1xIR, 1xL/R (3.5mm phone jack) Output Ports 1xHDMI, 1xRS-232 (male jack), 1xL/R (RCA jack) IR Frequency 38Hz IR Cable Length Input Resolution Supports PC: VGA ~ SXGA, 1080p@60 HDMI: 48op~1080p Output Resolution HDMI: 720p &... - Page 8 NOTE: Display sequence is from top left to right and from second right to left and so on sequence.
