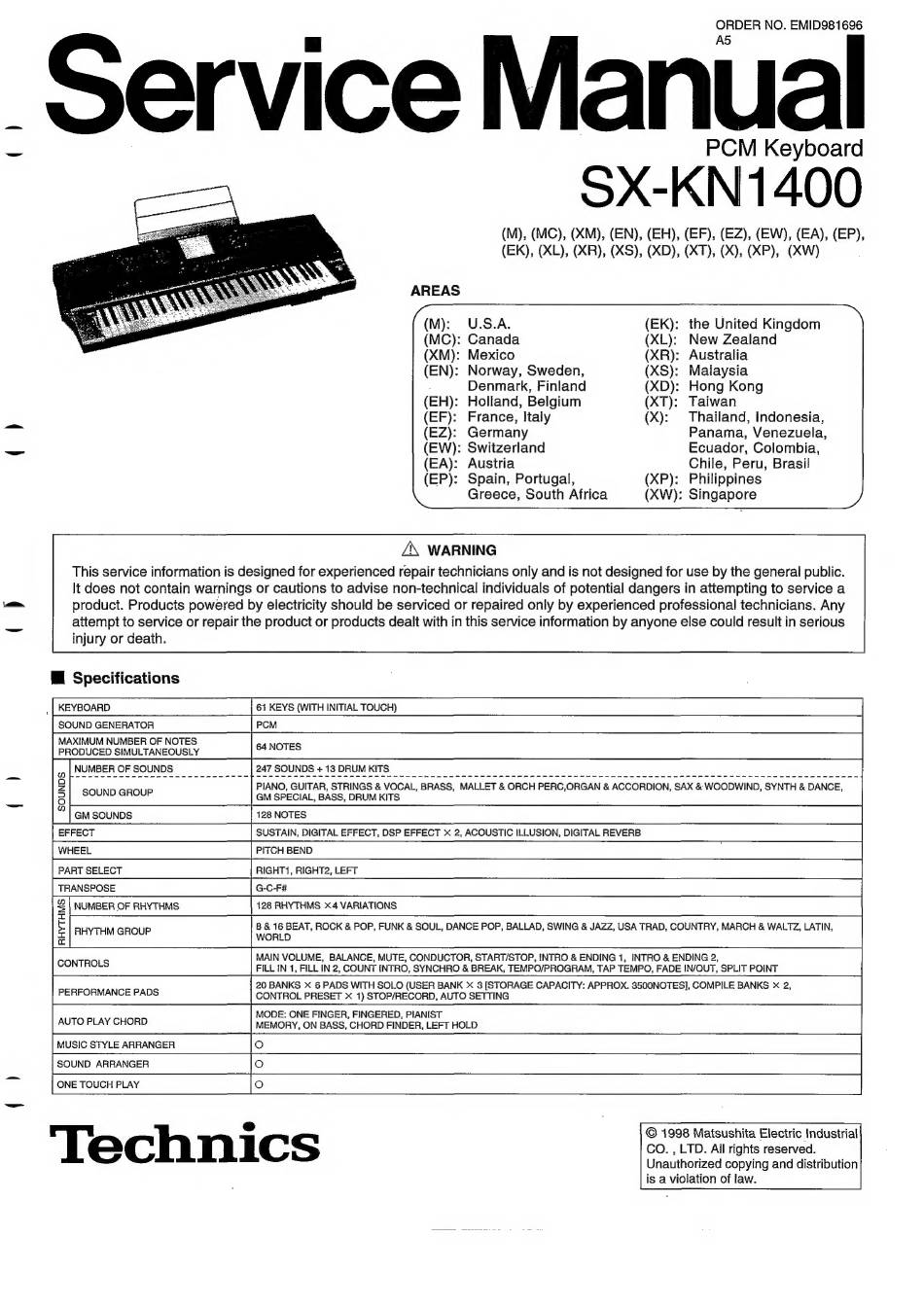

Technics SX-KN1400 Service Manual

ORDER NO. EMID981696
PCM Keyboard
OX-KN1400
(M), (MC), (XM), (EN), (EH), (EF), (EZ), (EW), (EA), (EP),
(EK), (XL), (XR), (XS), (XD), (XT), (X), (XP), (XW)
U.S.A. the United Kingdom
: Canada : New Zealand
: Mexico : Australia
: Norway, Sweden, : Malaysia
Denmark, Finland : Hong Kong
: Holland, Belgium : Taiwan
France, ltaly : Thailand, Indonesia,
: Germany Panama, Venezuela,
: Switzerland Ecuador, Colombia,
: Austria Chile, Peru, Brasil
: Spain, Portugal, (XP): Philippines
Greece, South Africa (XW): Singapore
Z\ WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a
product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any
attempt to service or repair the product or products dealt with in this service information by anyone else could result in serious
injury or death.
Ml Specifications
, | KEYBOARD 61 KEYS (WITH INITIAL TOUCH)
SOUND GENERATOR PCM
MAXIMUM NUMBER OF NOTES
NUMBER OF SOUNDS 247 SOUNDS + 13 DRUM KITS
PIANO, GUITAR, STRINGS & VOCAL, BRASS, MALLET & ORCH PERC,ORGAN & ACCORDION, SAX & WOODWIND, SYNTH & DANCE,
GM SPECIAL, BASS, DRUM KITS
128 NOTES
SUSTAIN, DIGITAL EFFECT, DSP EFFECT x 2, ACOUSTIC ILLUSION, DIGITAL REVERB
PITCH BEND
PART SELECT RIGHT1, RIGHT2, LEFT
TRANSPOSE G-C-F#
NUMBER OF RHYTHMS 128 RHYTHMS X4 VARIATIONS
8 & 16 BEAT, ROCK & POP, FUNK & SOUL, DANCE POP, BALLAD, SWING & JAZZ, USA TRAD, COUNTRY, MARCH & WALTZ, LATIN,
RHYTHM GROUP WORLD
MAIN VOLUME, BALANCE, MUTE, CONDUCTOR, START/STOP, INTRO & ENDING 1, INTRO & ENDING 2,
FILL IN 1, FILL IN 2, COUNT INTRO, SYNCHRO & BREAK, TEMPO/PROGRAM, TAP TEMPO, FADE IN/OUT, SPLIT POINT
20 BANKS X 6 PADS WITH SOLO (USER BANK X 3 [STORAGE CAPACITY: APPROX. 3500NOTES], COMPILE BANKS x 2,
CONTROL PRESET x 1) STOP/RECORD, AUTO SETTING
MODE: ONE FINGER, FINGERED, PIANIST
AUTO PLAY CHORD MEMORY, ON BASS, CHORD FINDER, LEFT HOLD
MUSIC STYLE ARRANGER
SOUND ARRANGER
ONE TOUCH PLAY
SOUND GROUP
GM SOUNDS
EFFECT
CONTROLS
PERFORMANCE PADS
© 1998 Matsushita Electric Industrial
ee :
i echnics CO. , LTD. Alll rights reserved.
Unauthorized copying and distribution
is a violation of law.
