Contents:

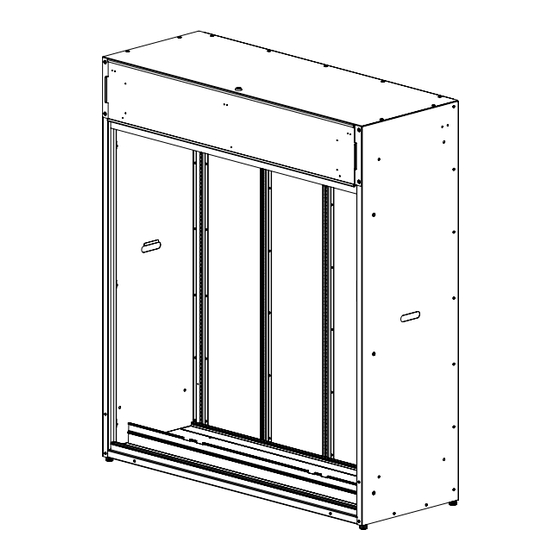

4' Metal Cabinet
1.
Position metal cabinet(s) on the floor per store
planogram. Adjust levelers as need to align
cabinets prior to fastening together.
IW Part #: 30428.1
4ft LP Sliding Door Cabinet

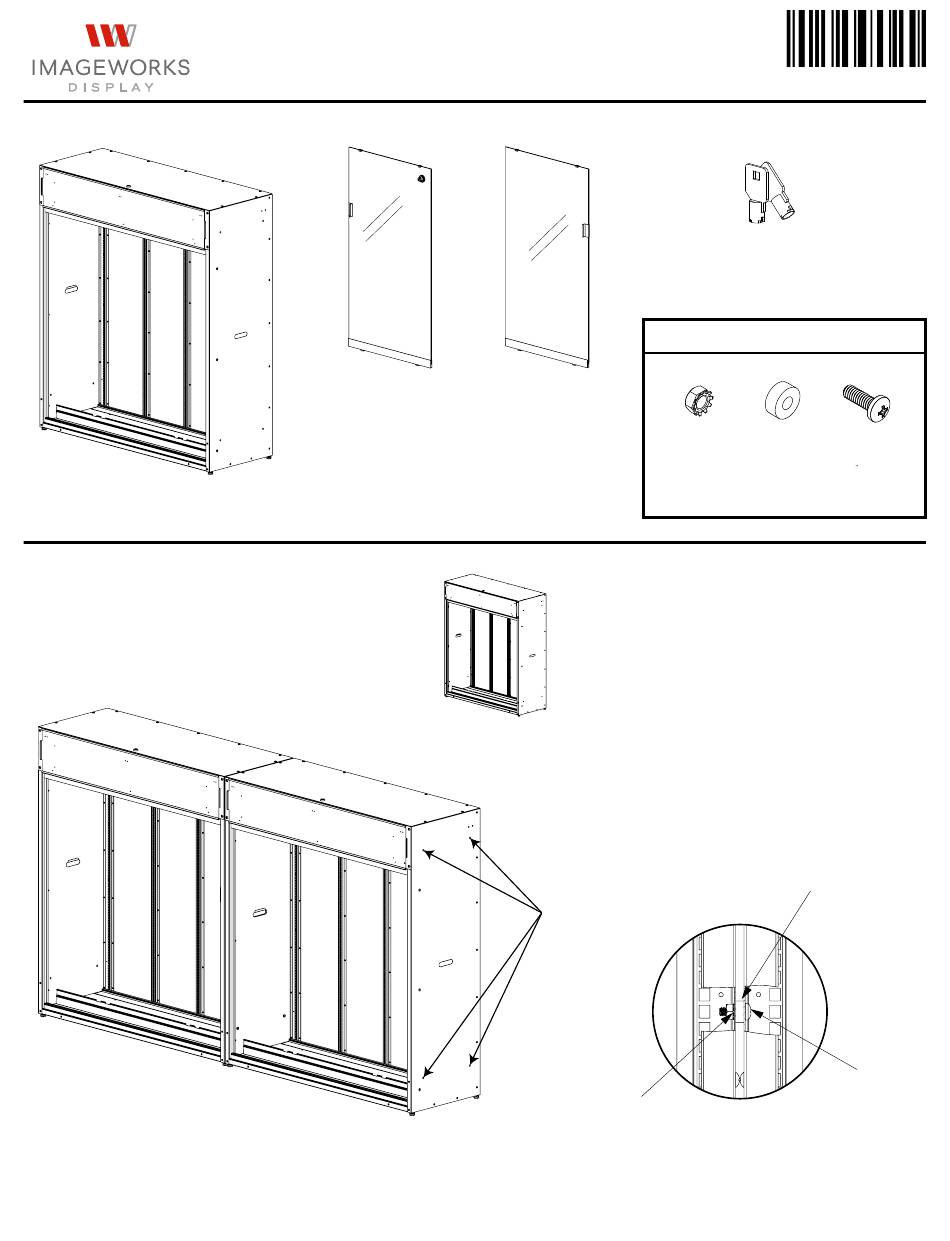

Assembly Instructions
Item # 30428.1
(1) Sliding Door
with Lock
Page 1 of 3
402148 LP Cabinet Ganging Kit
(1) Sliding Door
without Lock
KEPS Zinc
2.
Attach metal cabinet to adjacent metal cabinet(s),
if applicable. Fasten together using supplied
Hardware Kit as shown, then slide into final position.
Fasten Fixtures
together at these
(4) locations.
Keps Nut
-Cut Away View-
302830
(2) Key Set
(4)
(4)
1/4-20
Spacers
1/4-20x3/4
PHPMS Zinc
Nuts
Screws
Spacer
(Between
Cabinets)
Screw passes
thru side panels
and spacer
(4)
04.22.24
Advertisement
Summary of Contents for ImageWorks 30428.1
- Page 1 Hardware Kit as shown, then slide into final position. Spacer Fasten Fixtures (Between Cabinets) together at these (4) locations. Screw passes thru side panels Keps Nut and spacer -Cut Away View- IW Part #: 30428.1 Page 1 of 3 04.22.24...
- Page 2 Side Views of Door Insert Bottom of Door Bottom Rear Rail Insert Door Panel without Lock (Door handle on the right) up and into Top Rear Channel, centered about Cabinet as shown. IW Part #: 30428.1 Page 2 of 3 04.22.24...
- Page 3 Graphic (not supplied) into Bottom G r a p Channel and bow into place in Top h i c Channel. Header area can accept a graphic (not supplied). Load product according to customer specific planogram. IW Part #: 30428.1 Page 3 of 3 04.22.24...
