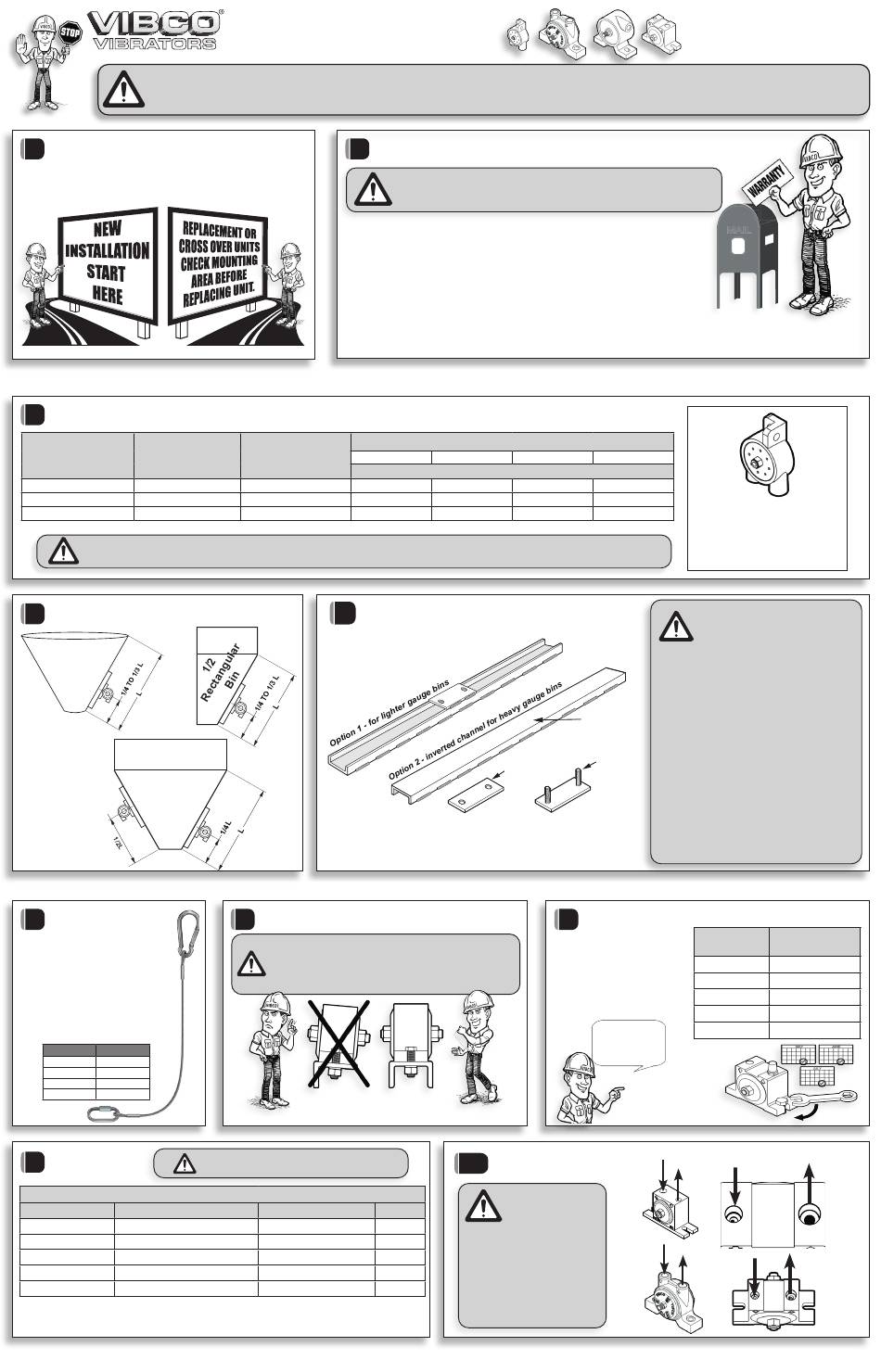

VIBCO BBS-100 Instruction Manual

WARNING: Failure to read and follow these installation instructions and safety precautions could result in personal injury, equipment damage, shortened
service life or unsatisfactory equipment performance. Personal Protection Equipment is advised. All information in this document is vital to the proper installation
and operation of the equipment. It is important that all personnel who will be coming in contact with this product thoroughly read and understand this manual.
START
1
THANK YOU FOR CHOOSING
A VIBCO VIBRATOR!
ADDITIONAL DETAILS AVAILABLE ONLINE AT www.vibco.com
MOUNTING PLATES & CHANNEL IRONS
3
MOUNTING
VIBRATOR PLATE
FORCE THICKNESS
Up to 100 lbs. 1/4"
101 to 500 lbs. 3/8" - 1/2"
Over 500 lbs. 1/2"
NEVER PLACE VIBRATOR DIRECTLY ON SKIN OF BIN OR HOPPER!
VIBRATOR PLACEMENT
4
Conical
Bin
2 Vibrators On
A Single Bin
THESE ARE
JUST
EXAMPLES.
GO ONLINE
www.vibco.com
TO SEE MORE
MOUNTING PLATES, CHANNEL IRON & ACCESSORIES AVAILABLE FROM VIBCO OR LOCAL DEALER
RESTRAINT
6
ALWAYS INSTALL
SAFETY CABLE/CHAIN
Mount one end to the vibrator
and the other to the hopper or
bin above the vibrator
NEVER ATTACH TO THE
MOUNTING PLATE!
Safety Kit Turbine #
SCT2 60-90
SCT3 250-310
SCT4 380-510
SCT5 570
AIR HOSE
9
TO DETERMINE CORRECT AIR HOSE SIZE***
TURBINE MODEL # MIN. HOSE OR TUBING I.D.*
100 - 130 1/8"
160 - 250 1/4"
320 - 380 3/8"
440 - 510 1/2"
570 3/4"
* Inside Diameter – Note: Hose is typically sized by INSIDE diameter, Tubing is sized by OUTSIDE diameter
** F=filter *** these specs are for the installation of a single unit; for multiple units, varying hose
R=regulator lengths, etc. adjust air to maintain CFM. Call technical support for more details.
401-539-2392 • vibrators@vibco.com • www.vibco.com
INSTRUCTION
MANUAL
2
Determine length of channel iron, box 3.
q
q Select thickness of mounting plate & method of mounting, box 3-4 & 7.
q STITCH weld mounting plate to channel iron, box 5.
q Determine vibrator placement on bin, box 4.
q STITCH weld channel iron to bin, box 5.
Place vibrator on mounting plate, box 8, secure firmly.
q
Install safety chain or wire, box 6.
q
q Connect pneumatics & check for leaks box 9-12.
q FILL OUT WARRANTY CARD & MAIL IN!!!!
CHANNEL
1/16" - 1/8"
WIDTH
2" 36" - 30"
3" 48" - 40"
4" 60" - 50"
* If sloped wall is shorter than the suggested channel length make the channel length 70% - 80% of wall dimension.
STITCH WELD MOUNTING
5
• Make mounting plate 3-6" longer than vibrator.
• Drill through holes for mounting bolts.
• Stitch weld mounting plate to
middle of channel iron.
• Stitch weld 1-3" with
1" between welds.
• Do not weld
ends
Use the proper alloy rod or wire when welding channel to bin. Using
the wrong alloy can cause stress cracking in the welds. This is really
a factor when welding a carbon steel channel to a Stainless Steel
hopper. AR plate needs pre heating and proper alloy filler metal.
MOUNTING OF VIBRATOR
7
DAMAGE TO THE BIN AND THE
VIBRATOR CAN OCCUR IF NOT
MOUNTED SECURELY OR IF VIBRATION
RUNS WITH NO PRODUCT IN THE BIN.
Angle Iron
TAPERED THREADS!!
DO NOT OVER TIGHTEN FITTINGS.
MIN FR** THREAD DIA.
1/4"
1/4"
3/8"
1/2"
3/4"
MOUNTING INSTRUCTION CHECKLIST
The warranty is void if vibrator is not properly installed. During
installation follow and check off the following steps and your
vibrator should provide you with years of trouble- free service.
BIN/HOPPER WALL THICKNESS
1/8" - 1/4" 1/4" - 3/8"
SUGGESTED CHANNEL LENGTH*
24" - 20" 18" - 12"
36" - 30" 24" - 20"
48" - 40" 36" - 30"
X
middle of channel
Through
Hole or
Drill & Tap
plate
Channel Iron
INLET & EXHAUST
10
If the threaded
CFM
ports are the
4 - 6
same size, look into the
7 - 10
opening to see the inner
10 - 18
orifice. On BVS, BBS, MLT
& MHI models, the smaller
18 - 21
INNER orifice is the air
21 - 30
inlet and the larger INNER
orifice is the exhaust.
TURBINE
VIBRATORS
DON'T FORGET TO MAIL
IN YOUR WARRANTY
3/8" - 1/2"
NA
18" - 12"
Flange style mounting
24" - 20"
requires only one bolt to
mount. Mounting locations
will vary depending on
5
YOU MUST STITCH WELD
MOUNTING
Mounting Plate & Channel Iron!
• NEVER CONTINUOUSLY WELD Stitch
weld 3"- 6" long with 3" between welds.
• STOP WELDS 1" FROM ENDS
to avoid the start of weld fatigue cracks.
• NEVER PLACE VIBRATOR directly on
Stitch weld
mounting plate to
skin of bin or hopper.
• NEVER WELD TO HOPPERS FULL of
Stud
flammable products
Style
Mounting
• NEVER WELD IN DUSTY AREAS.
Plate
Vibco recommends using one of our
engineered mounting systems for best force
transfer. You must use a mounting plate to
avoid cracking out the channel web. The plate
should match the width of the channel.
BOLTING PROCEDURE
8
GRADE 5
Make sure the vibrator is
BOLT SIZE
secured tightly. Retighten
after the first 10 -15 minutes
5/16"
of operation & check them
periodically to maintain
proper tightness.
Remember
Check those
bolts!
Be sure
surfaces are smooth,
flat & free of any debris.
INLET
CARD!
application.
STITCH WELD
MAX TORQUE
ft-lbs
1/4" 9
18
3/8" 32
1/2" 78
5/8" 160
EXHAUST
©2023 VIBCO, Inc. IM_P_TUR_34222
