Summary of Contents for Hardo OptiLine A1 Series

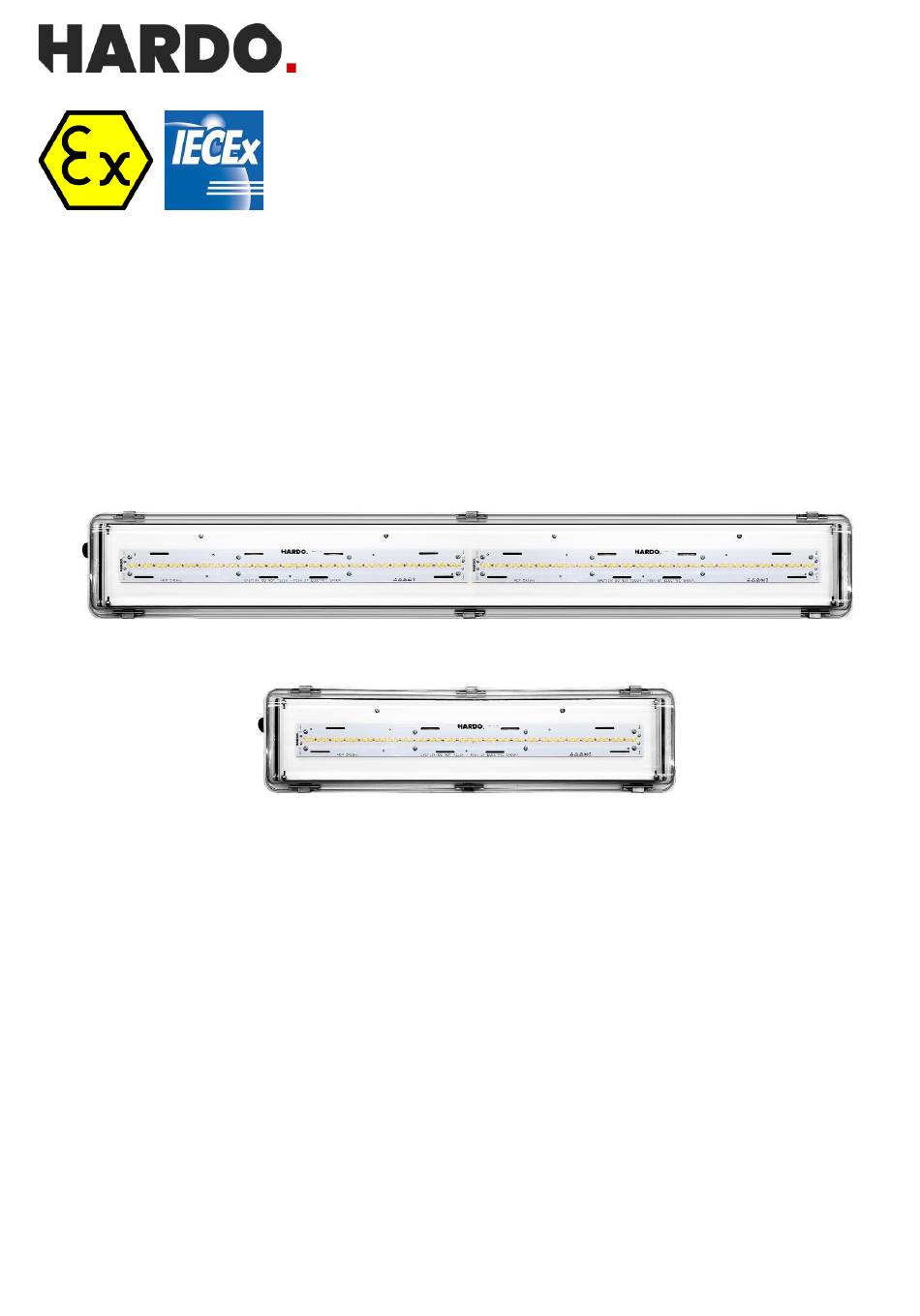

- Page 1 USE AND MAINTENANCE INSTRUCTION OF LIGHTING FIXTURE OptiLine **-*******A1- SERIES HARDO Czapski i Wspólnicy Sp. j. Instruction no: K-26190-PW-0006 Release date: 04.04.2024 ul. Spacerowa 5 Issue no: 1.3 32-083 Balice Strona 1 z 16...
-
Page 2: Table Of Contents
Table of contents GENERAL INFORMATION ........................3 Producer ............................. 3 Compliance with standards and regulations ................3 DEVICE DESCRIPTION ........................3 Possible configuration ........................4 Ex marking ............................5 SAFETY ..............................6 General precautions ......................... 6 Application ............................7 Other conditions for safe use ......................7 TRANSPORT AND STORAGE ...................... -
Page 3: General Information
1. GENERAL INFORMATION 1.1 Producer HARDO CZAPSKI I WSPÓLNICY SP. J. Ul. Spacerowa 5 32-83 Balice, Poland 1.2 Information on this manual NOTE: BEFORE USING THE DEVICE, READ THESE INSTRUCTIONS. This manual describes the rules for safe and correct handling of devices. The safety recommendations contained in the manual, accident prevention measures as well as general safety measures must be followed. -
Page 4: Possible Configuration
2.1 Possible configuration OptiLine **-*******A1- are available in two lengths and in basic operation mode are powered by 230VAC, 50Hz. In emergency mode, they are powered from a built-in Ni-Cd battery pack ensuring backup in emergency mode of not less than 1.5 hours. -
Page 5: Ex Marking
OptiLine 60-*******--- lighting fixtures are also available in a version with safety signs (pictograms). The use of pictograms requires the installation of diffusing lenses in accordance with the manufacturer's guidelines. Table 1 shows the basic parameters of the available pictograms. Pictogram parameters for the OptiLine 60-*******--- Length [mm] Width [mm]... -
Page 6: Safety
Ex db Protection of devices against ignition of dust by means of a "t" housing. The device can be used in the presence of explosion hazard of gases, vapours and mists of flammable liquids with air classified as explosion group IIA, IIB or IIC. Explosives group The device can be used in the presence of explosion hazard of IIIC... -
Page 7: Application
If damage or malfunction is detected, the device should be taken out of service and handed over for repair to the manufacturer's facility or another entity authorized by the manufacturer. 3.2 Application WARNING: USE THE DEVICE ONLY FOR ITS INTENDED PURPOSE. INCORRECT USE MAY ADVERSELY AFFECT ITS SAFETY AND FUNCTIONING. -
Page 8: Installation
Make sure that: • The luminaire is suitable for the hazardous area existing at the installation site; • The group of apparatus is suitable for gases, vapours and/or dust present at the installation site; • The temperature class and surface temperature of the device is suitable for gases, vapours and / or dust present at the installation site;... - Page 9 Figure 3. Acceptable mounting position Strona 9 z 16...
-
Page 10: Electrical Connection
5.3 Electrical connection 5.3.1 General requirements WARNING: INSTALLATION AND CONNECTION TO THE ELECTRICAL INSTALLATION SHOULD COMPLY WITH THE REQUIREMENTS OF THE PN-EN/IEC 60079-14 STANDARD. WARNING: IT IS FORBIDDEN TO MAKE ANY CHANGES TO THE FACTORY CONNECTIONS IN THE LUMINAIRE. The power cables have to be introduced into the right lighting system by using of certified cable glands. After making the cable connections, you need to clamp the cable gland by tightening the cable gland nut with a wrench. -
Page 11: Work In Emergency Mode
Figure 4. Possible connection diagrams of OptiLine **-*******A1- After making connections, the earthing efficiency should be checked in accordance with local regulations and the luminaire should be closed again, i.e.: • Set the top base (reflector) in the starting position; •... -
Page 12: Status Indication
For the time of storage and transport, the battery packs are disconnected from the power supply. During the connection operations carried out in accordance with paragraph 5, the battery shall be connected to the terminals of the power supply according to Figure 4. After connecting the batteries and supplying mains voltage, the luminaire will go into the charging state, which cannot be shorter than 24 hours. -
Page 13: Cleaning
Normal operation, charging ---- In case of power failure – Emergency mode, or power supply leakage connect to the power supply Table 2. Possible states of the signalling diode. Each dot corresponds to 256 ms 7. CLEANING WARNING: ELECTROSTATIC HAZARD. Each luminaire has a warning plate reading: "WARNING: ELECTROSTATIC HAZARD". -
Page 14: Additional Requirements
A symbol placed on the product or on the packaging indicates that the product should not be considered normal household waste but must be recycled for electrical and electronic equipment. WARRANTY CONDITIONS To read the warranty conditions, please refer to our General Terms and Conditions available at www.hardo.tech. Strona 14 z 16... -
Page 15: Technical Data
TECHNICAL DATA 12.1 Electrical and environmental parameters The basic electrical parameters of OptiLine **-*******A1- series luminaires are presented in Table 3. Ambient Power^ Power Rated voltage Type temperature Protective class factor [°C] OptiLine 60-1******A1- 20,8 0,89 AC 230, 50Hz ≤+45; 0≤T OptiLine 60-2******A1- 25,6... -
Page 16: Dimensions
12.3 Dimensions Basic dimensions of OptiLine luminaires are shown in Figure 5 and Table 5. Figure 5. Basic dimensions of OptiLine luminaires Type OptiLine 60-********** OptiLine 12-********** 1276 Table 5. Basic dimensions of OptiLine luminaires Strona 16 z 16...
