Summary of Contents for AccuDual ACD-52200

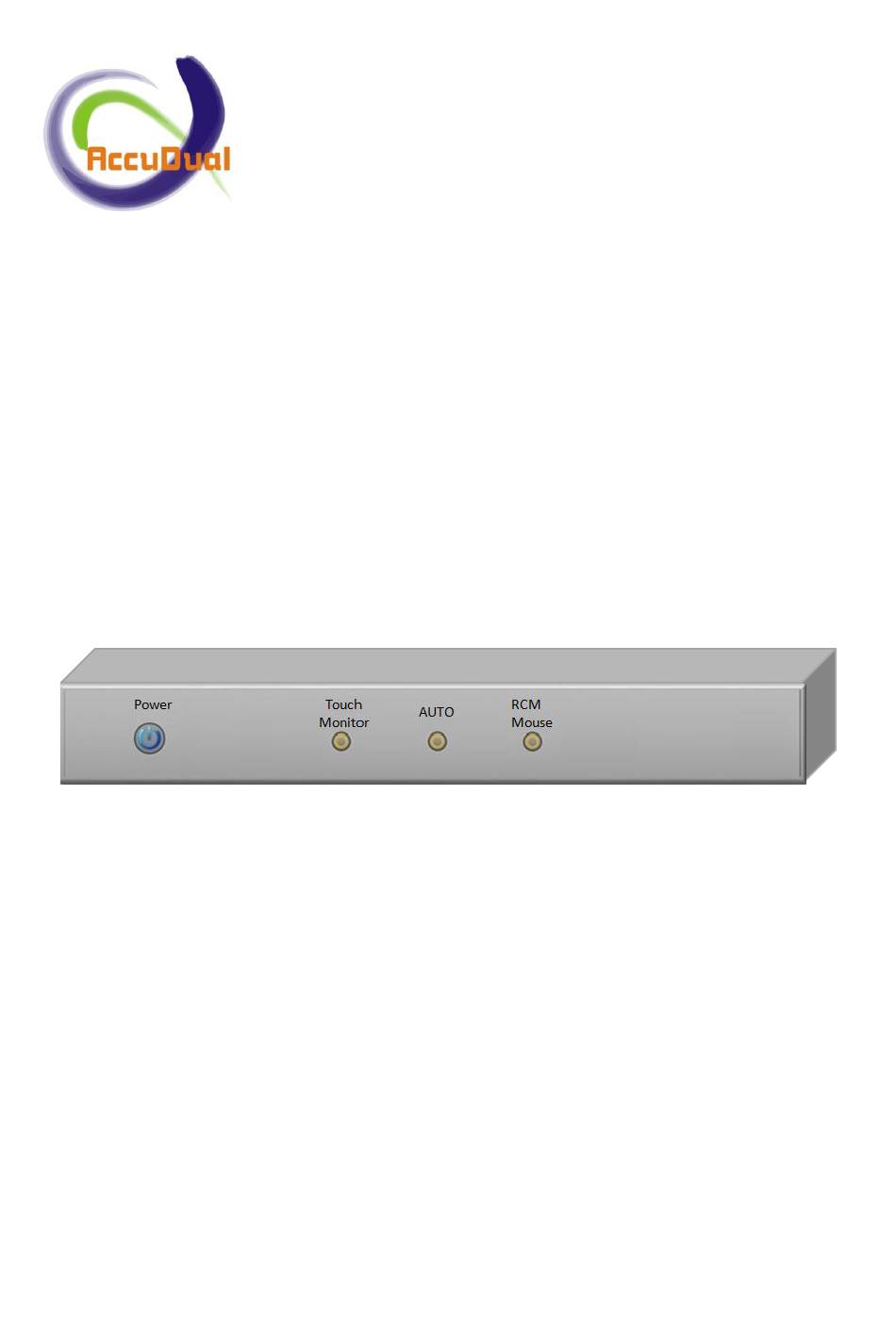

- Page 1 ACD-52200 User Guide v1.0...
-
Page 2: Table Of Contents
Contents: Package Contents ............................ 1 Specification ............................1 Front View ............................... 2 Rear View ..............................2 Connecting the Equipment ........................3 Installing ACD-52200 to tools: ........................ 3 Configure the enhance switch……………………………………………………………………………………………………………4... -
Page 3: Package Contents
Package Contents ACD-52200 AC Power adapter AC Power Cable DB25 Cable 1.5m Specification AC power input 100V~240V Net Weight: 4.1 Kg Gross Weight: 4.2 Kg Bare product Dimension: 300*260*45 Packing Dimension: 390*330*130 Work temperature: Celsius 5 ~ 45 degrees... -
Page 4: Front View
Front View Rear View DB25 IN DB25 OUT TO RCM DB25 OUT TO Monitor Power Button Touch Monitor Lock Button AUTO Switch Button RCM Mouse Lock Button AMT DB25 Input Port DB25 Output DB25 Output ... -
Page 5: Connecting The Equipment
4. Then open ACD-52200 power 5. Connect the power adapter to the ACD-52100 and open power 6. Connect the power adapter to the ACD-10203 and open power 7. You are now ready to operate the ACD-52200 to ACD-52100 RCM Solution and Touch Monitor...
