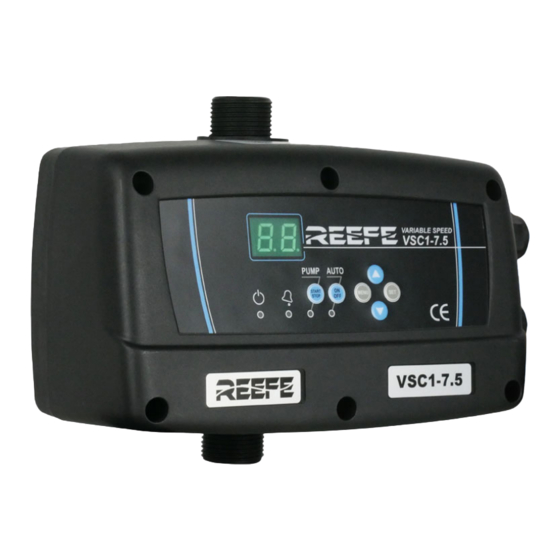

- Page 1 VARIABLE SPEED DRIVE MENUS & EXTRA CONFIGURATION MODEL: VSC-7.5 | VSC1-10 | VSC1-12 FIRMWARE VERSION 5.1 CODE: 21897 | 24256 | 21903...
-
Page 2: Table Of Contents
CONTENTS Configuration Menu Information Displayed during the Automatic operation Relevant Error Codes Register of data and alarms Expert Menu Calibration Menu Factory Settings Connection for Master & Slave Communication Warranty Information © COPYRIGHT No part of this publication is to be copied stored or distributed in any manner or form without the prior written permission of Ascento Group Australia. -
Page 3: Configuration Menu
7. The pump can now be initiated by selecting and pushing the START/STOP button for manual operation, or the “AUTO” Button on the front panel of the controller. The pump should initialise and start pumping water from an open outlet. Ascento Group Australia www.reefe.com.au P: 07 3893 5000 VER.2024.03.25... -
Page 4: Information Displayed During The Automatic Operation
Information Displayed during the AUTOMATIC operation By pressing the up button, we can change the information displayed. 1. - Instantaneous line pressure in bar (bar) 3. - Instantaneous frequency (Hz) 4. - Instantaneous current measurement (A) 5. - Temperature of the power module (ºC) Please refer to the table below for relevant error codes that may be displayed. -
Page 5: Expert Menu
4. DECELERATION (d). Deceleration, range 2-20 (Hz/s), set desired value then press SET. 5. If no changes to be made, then press set after each selection to get back to main menu Ascento Group Australia www.reefe.com.au P: 07 3893 5000 VER.2024.03.25... -
Page 6: Calibration Menu
CALIBRATION MENU (FACTORY SETTINGS) To alter the Factory settings, specifically after a loss of power event for the Pr setting as per Page 1 note, simultaneously press and hold the MENU button plus the Up Arrow for 3 seconds. Set to 0 and Press SET Set F0 for SPEEDMATIC EASY - VSC-10 &... -
Page 7: Connection For Master & Slave Communication
2. For connection of 2 devices (optional): use a communication cable 4 x 0.25 mm2 and insert it through the PG cable gland located in the lateral section of the device as per the figure below (2M). Ascento Group Australia www.reefe.com.au P: 07 3893 5000 VER.2024.03.25... -
Page 8: Warranty Information
WARRANTY 2 Year Warranty applies ** **All warranties subject to the current version of the Ascento Standard Terms & Conditions of Warranty which can be found by navigating to www.reefe.au and searching “Warranty” ABN 20 527 073 843 VIEW RANGE!
